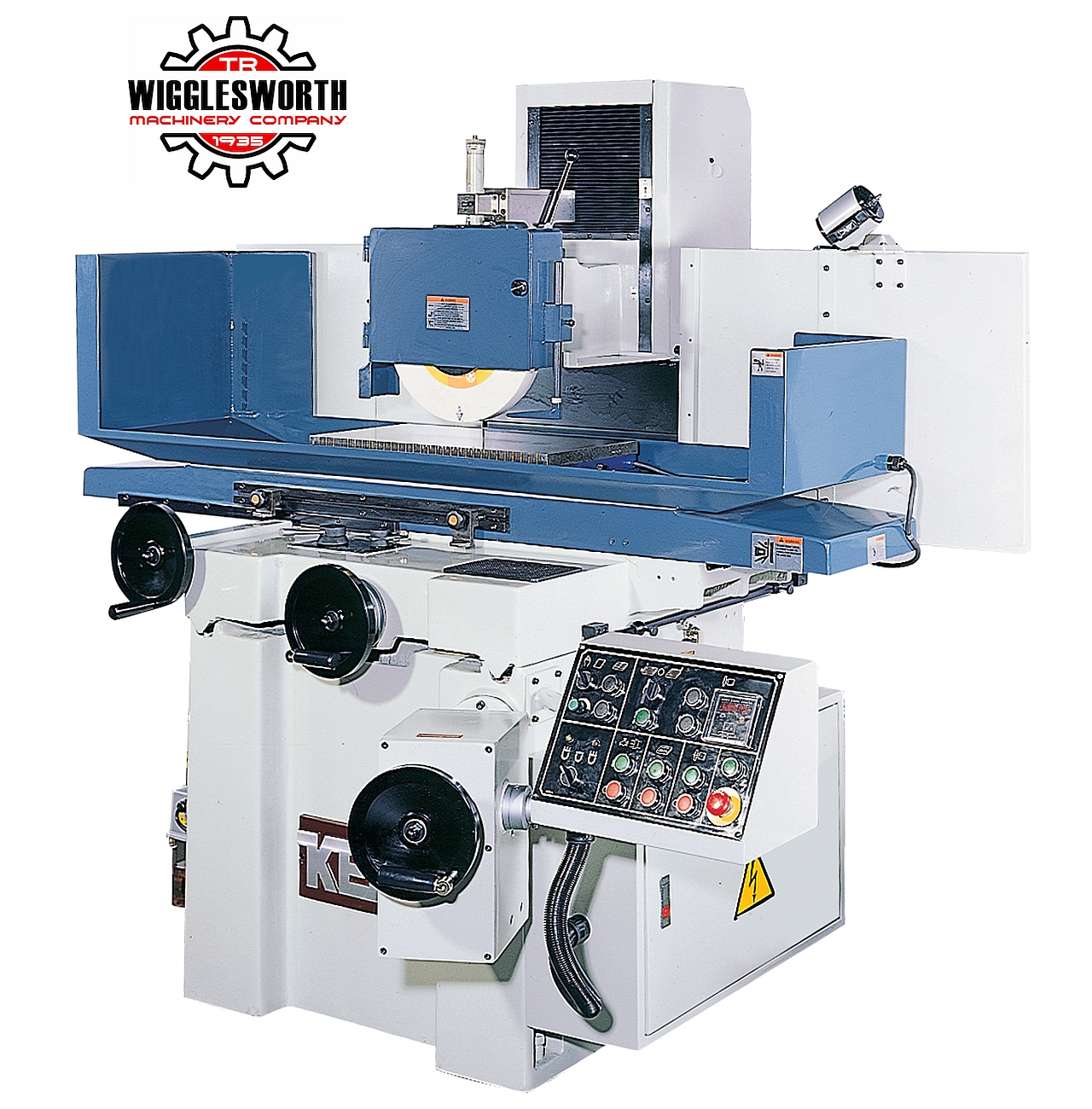

NEW KENT KGS-63AHD

FEATURES:

V & FLAT TURCITE TABLE WAYS
HYDRAULIC TABLE
SOLID STATE CONTROL CROSS-FEED
DOUBLE - V TURCITE CROSS WAYS
AUTO LUBRICATING PUMP
AUTO INCREMENTAL DOWN-FEED
FULLY AUTOMATIC CYCLE CONTROL WITH SPARK-OUT & AUTO STOP
7.5 HP SPINDLE MOTOR
"KENT" DIGITAL READOUT SYSTEM

SPECIFICATIONS:

CAPACITY:
OVERALL WORKING AREA........................ 24" x 12"
LONGITUDINAL TABLE TRAVEL................... 28"
CROSS FEED SADDLE TRAVEL.................... 13 3/8"
DISTANCE SPINDLE CENTER TO TABLE ........... 24"
TABLE LOAD INCLUDING MAGNETIC CHUCK......... 1000 LBS
TABLE & CROSS-FEED:
T-SLOT...................................... 1/2"
LONGITUDINAL TABLE SPEED.................... 15 - 85 FPM
CROSS FEED ON HAND WHEEL.................... 0.001" GRADUATION
REVOLUTION OF HAND WHEEL.................... 0.2 IPR
AUTO CROSS FEED PER STROKE.................. 0.004" - 0.5"
POWER CROSS FEED............................ 47 1/4 IPM
GRINDING WHEEL:
GRINDING WHEEL (ODXTXID) ................... 14" x 1 1/2" x 5"
GRINDING WHEEL SPEED ....................... 1740 RPM
VERTICAL MOVEMENT:
VERTICAL HAND WHEEL......................... 0.000050" GRADUATION
VERTICAL HAND WHEEL REVOLUTION.............. 0.025 IPR
AUTO DOWN FEED INCREMENT (5 STEPS).......... 0.0.00025" - 0.00125"
RAPID ELEVATING............................. 6 1/4 IPM
MOTOR:
SPINDLE MOTOR .............................. 7.5 HP (220/440/60/3)
HYDRAULIC MOTOR ............................ 3 HP (220/440/60/3)
MACHINE NET WEIGHT ......................... 4,100 LBS

STANDARD ACCESSORIES: (INCLUDED)

* FULL LENGTH REAR SPLASH GUARD
* TWO FRONT TABLE SPLASH GUARD
* HALOGEN WORK LIGHT
* OVERHEAD PARALLEL DRESSER
* MAGNETIC SEPERATOR COOLANT SYSTEM
* 12" X 24" ELECTRIC MAGNETIC CHUCK WITH "KENT" CHUCK CONTROL
* 2-AXIS KENT DIGITAL READOUT SYSTEM
* WHEEL BALANCING BASE * WHEEL BALANCING ARBOR
* GRINDING WHEEL * WHEEL FLANGE
* TABLE DRESSER * TOOL BOX & TOOLS

PRICE: F.O.B. SOUTH ELGIN, ILLINOIS ...................... Price on Request

OPTIONAL ACCESSORIES:
COMBINATION MAGNETIC SEPARATOR & PAPER FILTER COOLANT SYSTEM......$
EXTRA WHEEL FLANGE ...............................................$
TABLE SPLASH GUARD (REAR).........................................$
