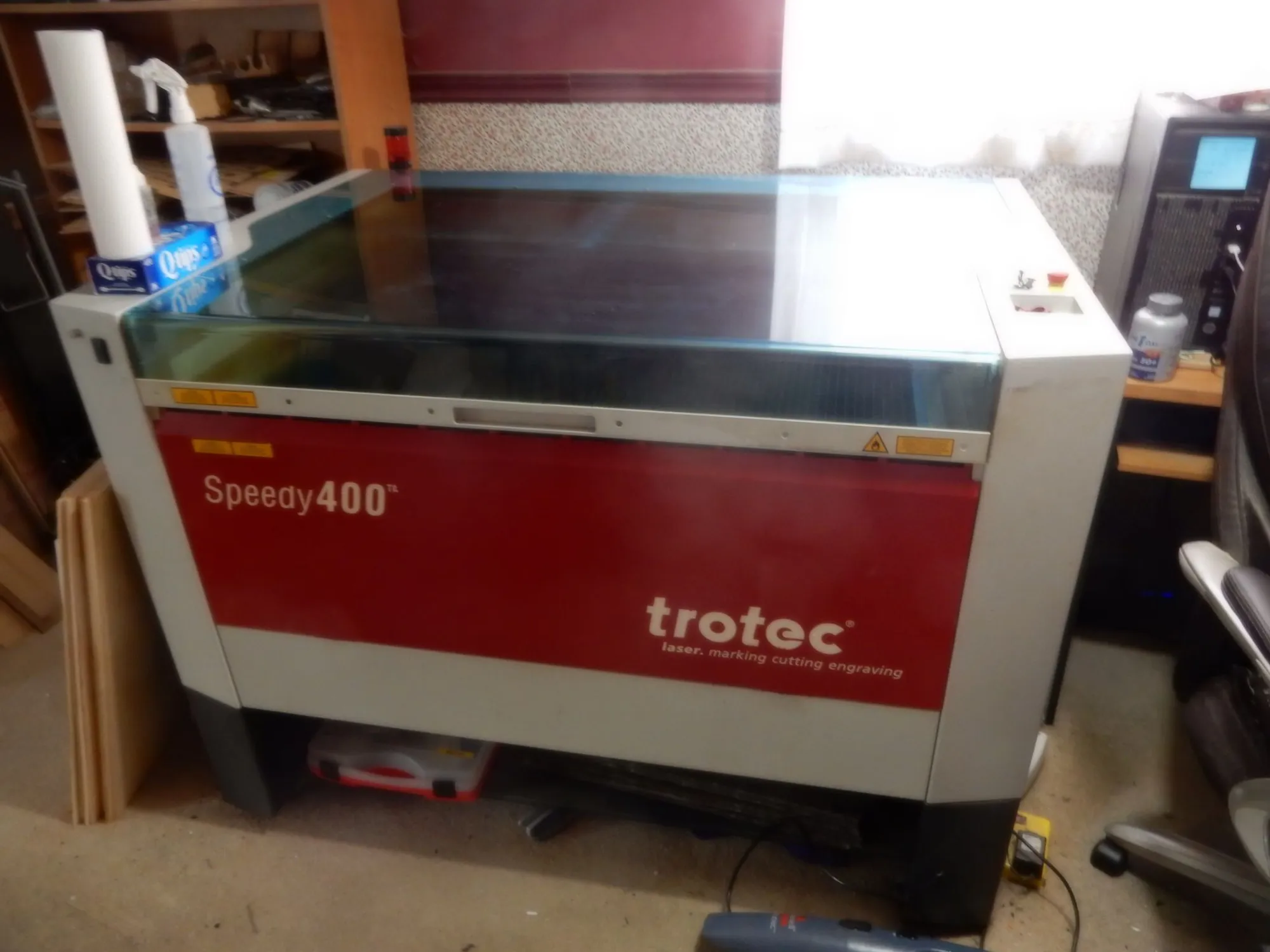

2013 TROTEC SPEEDY 400 CO₂ LASER ENGRAVER/CUTTER
Manufacturer: Trotec Laser GmbH
Model: Speedy 400
Year of Manufacture: March 2013
POWER: 115v, 50/60hz
Laser Specifications
Laser Type: CO₂ Laser
Laser Power: 80 Watts (CW)
Wavelength: 10.6 µm
Laser Diode: <0.99 mW CW, 655 nm
Work Area / Capacity
Cutting / Engraving Area: 24 in x 39 in
Beds Included
Cutting Grid Bed
For solid materials such as wood and composites
Flat Bed
For thin films such as Mylar and paper
Lamella Bar Bed
For acrylic and other solid plastics
Optics Included
2" Lens Included
4" Lens Included
Additional Used Lenses Included
Attachments & Options
Rotary Engraving Attachment: Included
For engraving cylindrical parts (cups, tubes, etc.)
Weight: 900 lbs
Dimensions: 67" x 45" x 42"
| Sheet-W | 24" | 609.6 mm |
| Sheet-L | 40" | 1,016 mm |
| Wattage | 120 w | 120 W |
2013 TROTEC SPEEDY 400 CO₂ LASER ENGRAVER/CUTTER
Manufacturer: Trotec Laser GmbH
Model: Speedy 400
Year of Manufacture: March 2013
POWER: 115v, 50/60hz
Laser Specifications
Laser Type: CO₂ Laser
Laser Power: 80 Watts (CW)
Wavelength: 10.6 µm
Laser Diode: <0.99 mW CW, 655 nm
Work Area / Capacity
Cutting / Engraving Area: 24 in x 39 in
Beds Included
Cutting Grid Bed
For solid materials such as wood and composites
Flat Bed
For thin films such as Mylar and paper
Lamella Bar Bed
For acrylic and other solid plastics
Optics Included
2" Lens Included
4" Lens Included
Additional Used Lenses Included
Attachments & Options
Rotary Engraving Attachment: Included
For engraving cylindrical parts (cups, tubes, etc.)
Weight: 900 lbs
Dimensions: 67" x 45" x 42"
