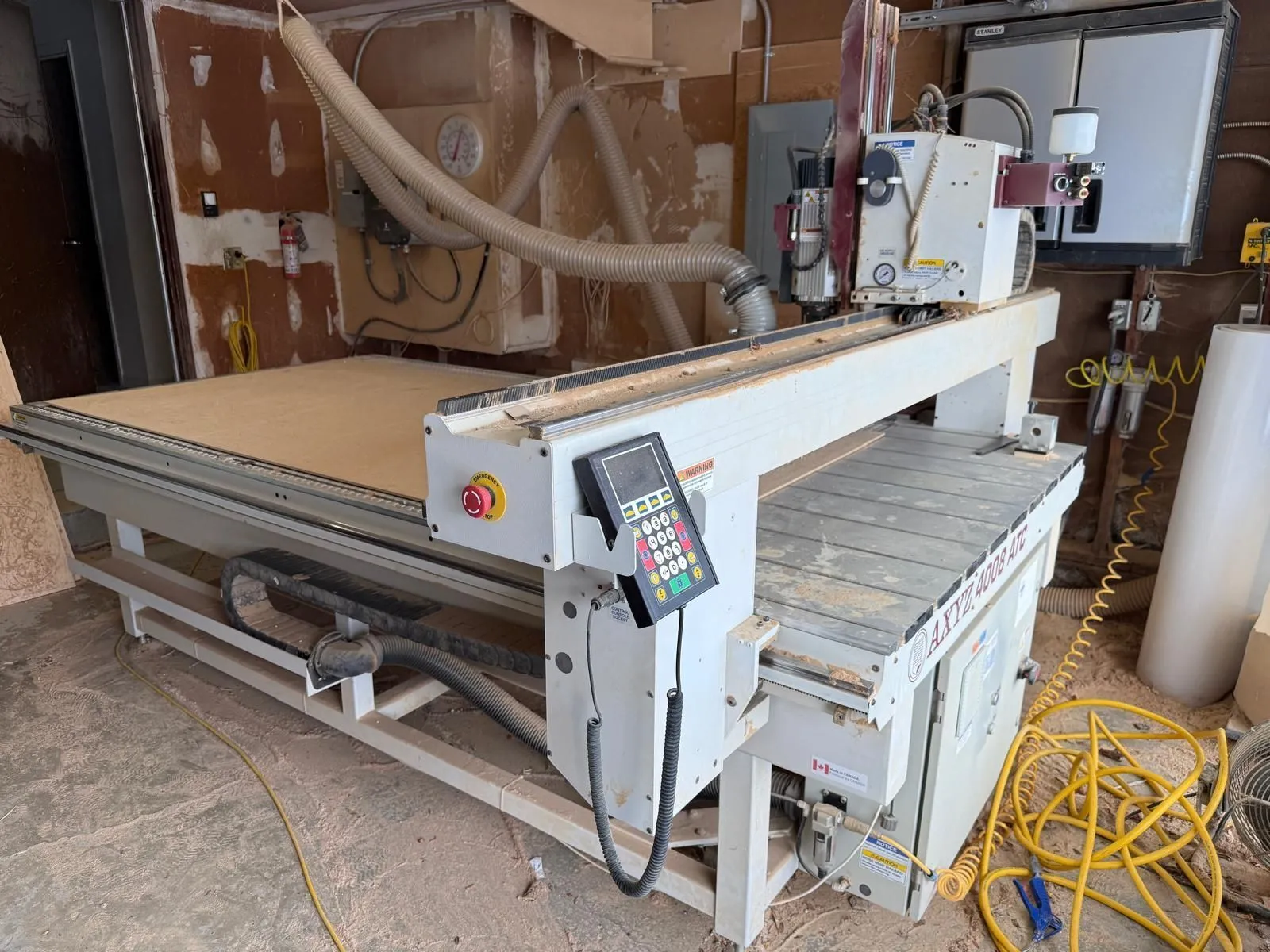

2016 AXYZ 4008 4' X 8' CNC ROUTER
Manufacturer: AXYZ International
Model: AXYZ 4008 ATC
Machine Type: CNC Router with Automatic Tool Changer
Mfg Date: 2016
POWER: 220v, 60hz, 1ph
Amperage: 20 Amps
Power: 4.3 kW
Short Circuit Current Rating: 5000 RMS Symmetrical Amps
Machine Run Hours: 323.2 hours
Working Area / Capacity
Table Size: 4 ft x 8 ft class machine
Raised Gantry Clearance: 9 in Z clearance
Motion & Drive System
Drive Type: Servo motors (upgraded from stepper motors)
Cutting Motion: Helical cutting system (instead of straight cut)
Tooling
Automatic Tool Changer (ATC): Yes
Tooling Status Display: Smart Console B-7 controller interface
Vacuum & Workholding
Vacuum Hold-Down Table: Yes
Vacuum Electrical Feed: 60 Amp, 240V Vacuum System
Control System Info (Screen Display)
Controller Software: A2MC Version 6.503B RC4
Included Options & Features
Automatic Tool Changer (ATC)
Raised gantry (9in clearance)
Helical cutting upgrade
Servo motor drive system
Mist coolant for non-ferrous cutting
Vacuum hold-down table
Smart Console handheld controller
Dedicated vacuum disconnect switch
Weight: 3500 lbs
Dimensions: 10 ft x 8 ft x 6 ft
| Table-W | 60" | 1,524 mm |
| Table-L | 96" | 2,438.4 mm |
| Power | 10 hp | 7.5 kW |
| # Axis | 3 | 3 |
| X | 48" | 1,219.2 mm |
| Y | 96" | 2,438.4 mm |
| Z | 9" | 228.6 mm |
| Control | CNC | CNC |
| Dimensions | 10ft x 8ft x 6ft | 10ft x 8ft x 6ft |
| Weight | 3500 lbs | 3500 lbs |
2016 AXYZ 4008 4' X 8' CNC ROUTER
Manufacturer: AXYZ International
Model: AXYZ 4008 ATC
Machine Type: CNC Router with Automatic Tool Changer
Mfg Date: 2016
POWER: 220v, 60hz, 1ph
Amperage: 20 Amps
Power: 4.3 kW
Short Circuit Current Rating: 5000 RMS Symmetrical Amps
Machine Run Hours: 323.2 hours
Working Area / Capacity
Table Size: 4 ft x 8 ft class machine
Raised Gantry Clearance: 9 in Z clearance
Motion & Drive System
Drive Type: Servo motors (upgraded from stepper motors)
Cutting Motion: Helical cutting system (instead of straight cut)
Tooling
Automatic Tool Changer (ATC): Yes
Tooling Status Display: Smart Console B-7 controller interface
Vacuum & Workholding
Vacuum Hold-Down Table: Yes
Vacuum Electrical Feed: 60 Amp, 240V Vacuum System
Control System Info (Screen Display)
Controller Software: A2MC Version 6.503B RC4
Included Options & Features
Automatic Tool Changer (ATC)
Raised gantry (9in clearance)
Helical cutting upgrade
Servo motor drive system
Mist coolant for non-ferrous cutting
Vacuum hold-down table
Smart Console handheld controller
Dedicated vacuum disconnect switch
Weight: 3500 lbs
Dimensions: 10 ft x 8 ft x 6 ft
