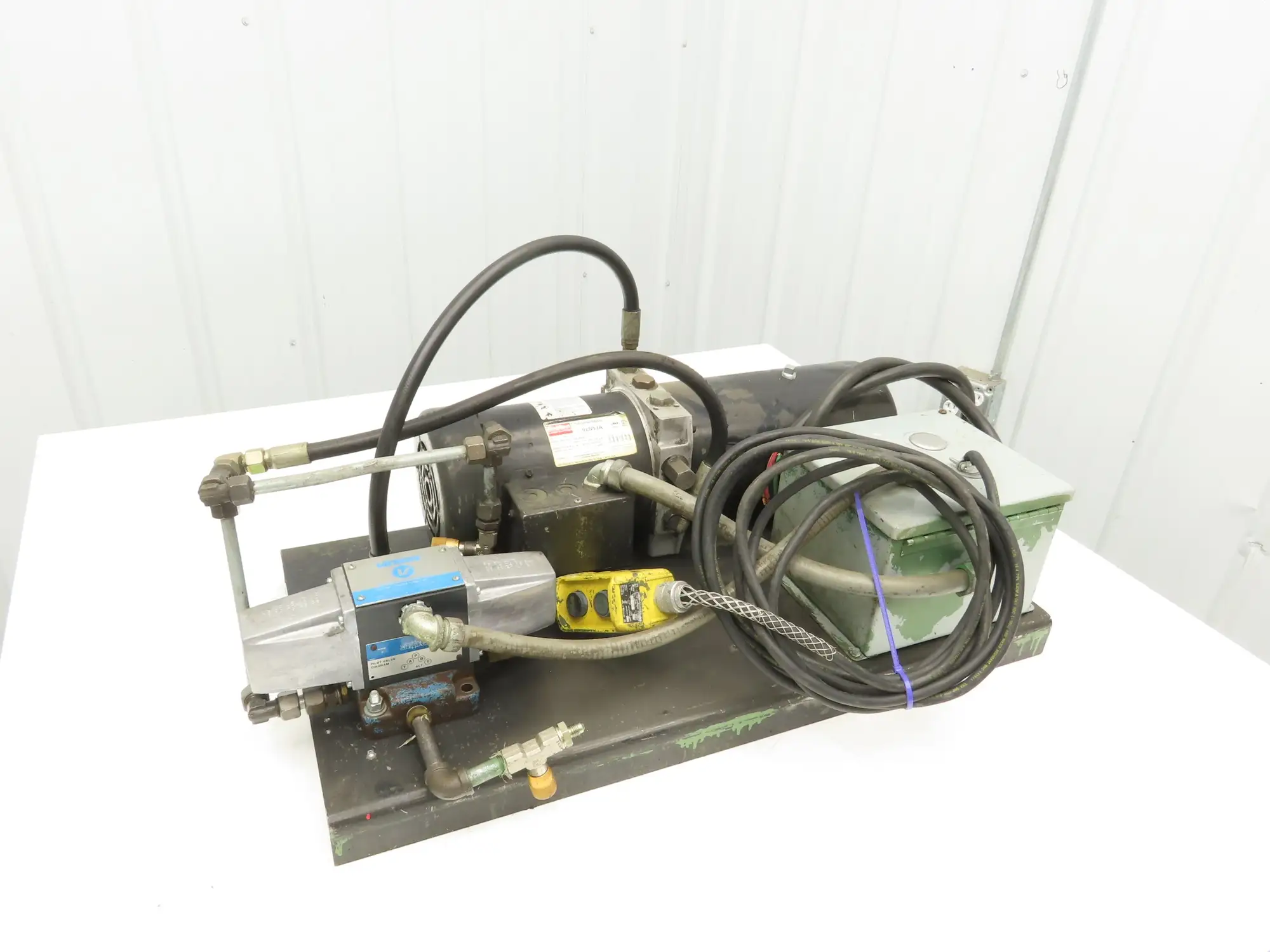

Dayton Haldex 4F683A Hydraulic Power Unit 1.5Gal 1GPM 1500psi 1Hp 460V w/Pendant

USD $379.99
1 available
Overview
Manufacturer:
DAYTON HALDEX
Stock #:
303775
Specifications

Tank Volume (Gallons): 1.5
Tank Size (LxWxH): 6.5"x6.5"x11"

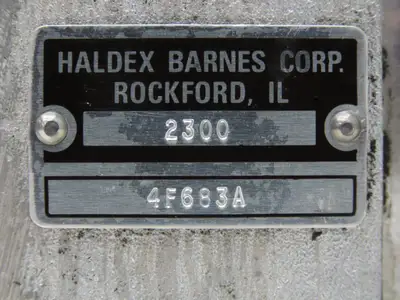

Pump Brand & Model Number: Haldex 4F683A
Pump Pressure (PSI): 1500
Pump Volume (GPM): 1
Pump capabilities (GPM and PSI) listed are MAX CAPABILITIES PER THE MANUFACTURER for the Hydraulic PUMP ONLY.

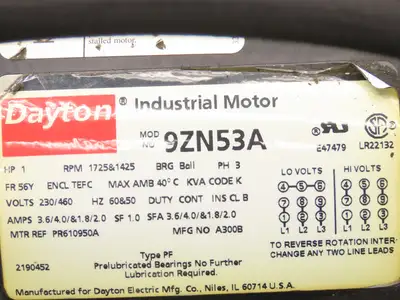

Motor Brand & Model Number: Dayton 9ZN53A
Motor Specs: 1Hp 1725RPM 230/460V 3PH 56Y
Solenoid Control Valve Voltage: 115V
In Good Working Condition.  Tested @460V.

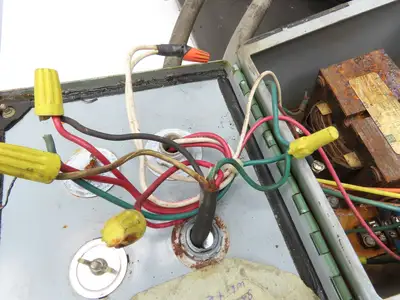

Wired with control pendant Square D BW-72Y.
29-1/2"L x 16"W Steel base.
