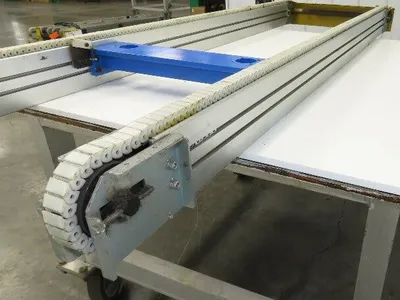

NKE CSB89A-PS-500-1740-180-90W-3 Plastic Chain Conveyor 2-Row 220V 3PH 20"x74"
USD $631.74
Overview
Specifications
In Good Used Condition. Removed from a Working Environment. Tested @220V 3PH.
3PH Oriental gearmotor drive. 180:1 reducer ratio.
18 FPM chain speed. #40 roller chain, 1/2" pitch.
Overall length: 73.75" (1740mm Distance between sprockets 68.5")
Conveying width: 20.5"
Chain width span: 500mm, 19.6" (center to center)
Plastic chain width: 0.9"
Conveying height: 4.75"
Overall width 26.5"
