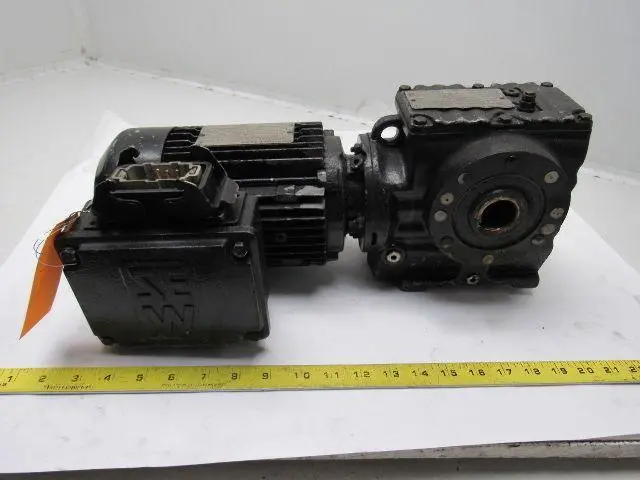

SEW-EURODRIVE 870269778.04.04.001 1/2HP Gearmotor 230/460V 3Ph 137.08:1 Ratio

SO#  870269778.04.04.101
 Model/Type  SA57DT80K6ACAX
 Gear Ratio  137.08
 Output Speed  8.3
 Mtg Position  M1
 Shaft Diameter  30MM
 Conduit Box Loc  180
 Cable Entry  2
 Out Torque (lb-in)  2296
 Gear S.F.  1.1
 Motor HP  .50
 Motor Voltage  230YY/460Y
 Frequency  60
 Connection  DT79
 Motor Amps  2.5/1.25
 KVA Code  H
 Insulation Class
Tested and works as it should.
