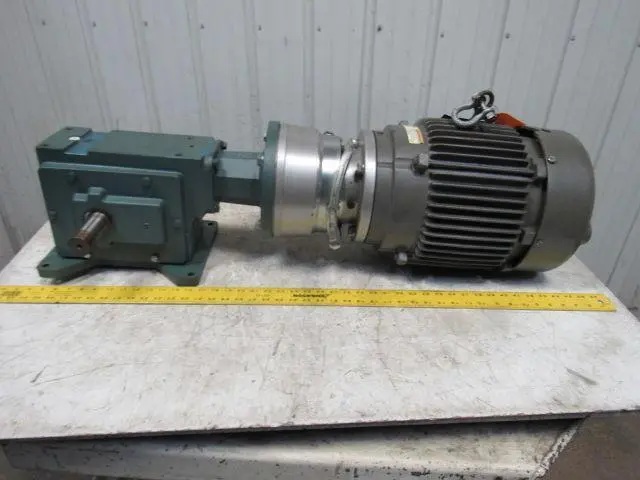

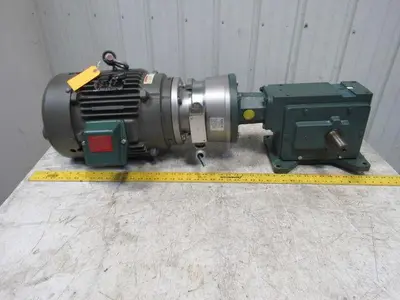

Dodge C262B15N180KL1 3HP 460V 15:1 Ratio Dual Shaft Gearmotor W/Brake

CLICK HERE FOR MANUFACTURER'S SPECS
CLICK HERE FOR MANUFACTURER'S SPECS
Gear Ratio: 15:1
Output Speed: 125
Shaft Diameter: 1-1/2"
Output Torque (lb-in): 2485
Motor HP: 3
Motor Voltage: 460
Frequency: 60
Motor Amps: 4.0
Insulation Class: F3
Brake Voltage: 205 VDC
Output Torque (In/lbs): 2485
Output Torque (N/M): 2485
Phase: 3
W/Kebco 06.17.670-930U Brake
W/Lincoln CCF4P3UCN64 3HP 460V 1760RPM Motor See page 114 in catalogue for specs
  Tested and works as it should.
