These lathes pack large lathe features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring an Electro-magnetic brake, 3 Jaw Chuck, ball bearing-mounted steady and follow rests and CNC Style Lighting with enclosed splash guard, these lathes are CSA / CUS Certified, and truly are Elite!
| Lathe Type | EVS | EVS |
| Swing Over Bed | 13" | 330.2 mm |
| Distance Between Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| Motor | 3 hp | 2.2 kW |
| Phase | 3 | 3 |
| Voltage | 230v | 230v |
| Amps | 19 | 19 |
| Dimensions | 67" x 30" x 57" | 67" x 30" x 57" |
| Weight | 1,433 lbs. | 1,433 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts and Labor

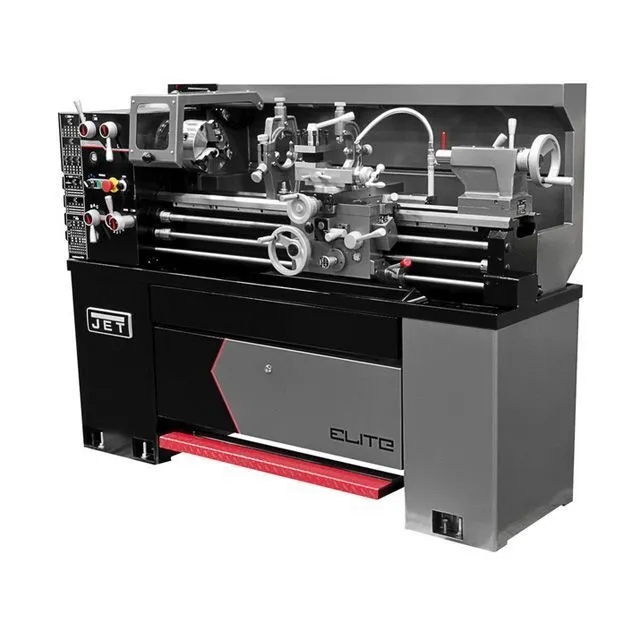

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
