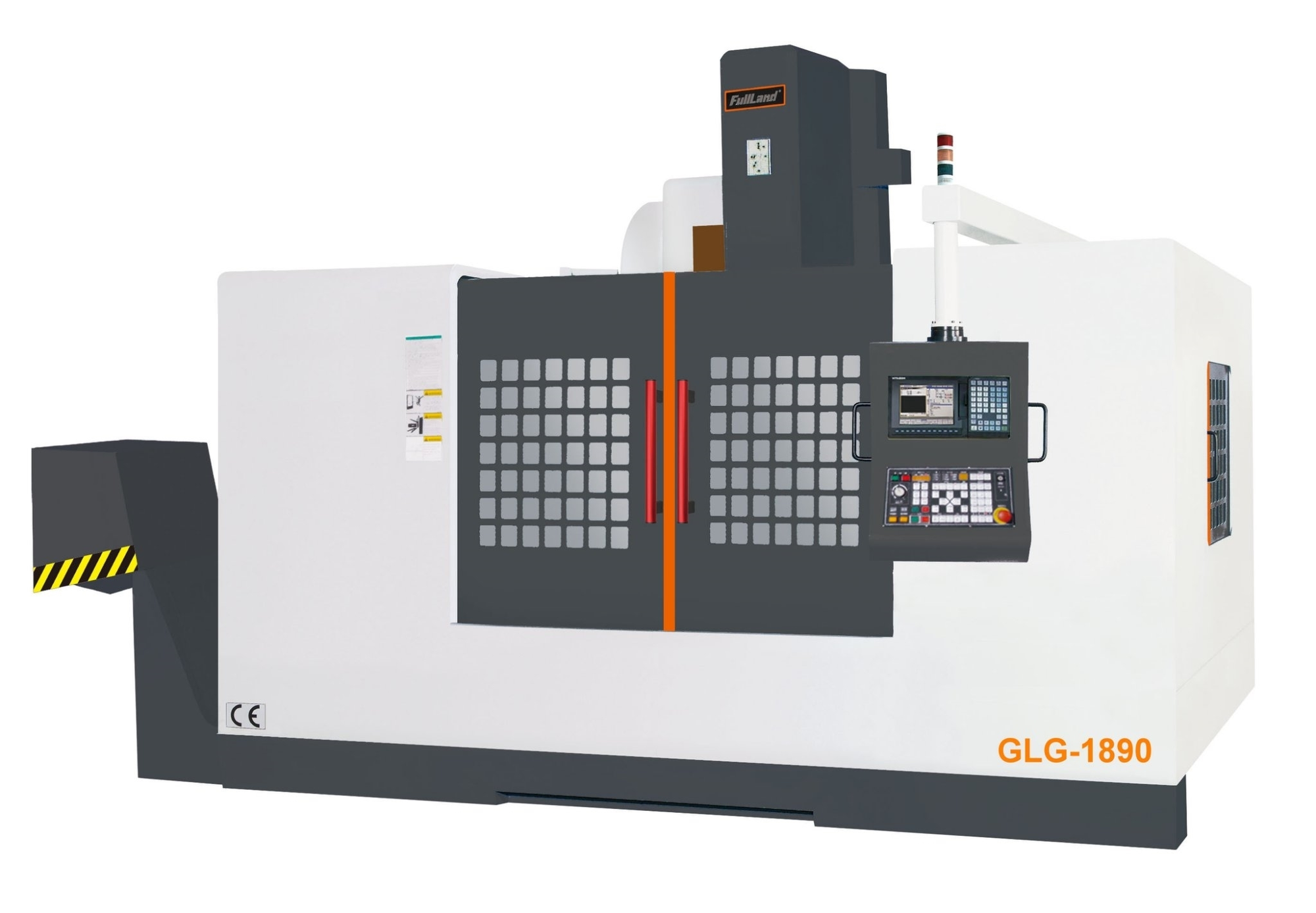

NEW FULLLAND GLG-1890

TRAVEL 　 　
X-axis                          1800(70.8")         mm/(inch)
Y-axis                          900(35.4")         mm/(inch)
Z-axis                          730(28.7")         mm/(inch)
Spindle nose to table surface  110-840 (5.1"-35.8") mm/(inch)
Spindle center to column surface 965(37.9")         mm/(inch)
X.Y.Z. Axis Ball screws dia 50 x pitch12         mm/(inch)
TABLE
Table Size                 1900 x 800
                                (74.8" x 31.4")         mm/(inch)
Working Area                 1800x 900
                                (70.8" x 35.4")  mm/(inch)
Tee slots (CD x W x NO)         CD100 x 18 x 8         mm/(inch)
Table load (maximun)         2500(5500)         KG(Ibs)

1 X,Y,Z-Axis linear roller guides for heavy loading
2. X travel over 1600mm, the base with 6 linear roller guides
3.Screw Type Chip Conveyor+Water Tank (Front)
Screw Type Automatic Chip Conveyor-2Pcs (Beside Y axis)
4. Spindle Cooling System
5. Functions of two water (oil) pumps :
one is for ① pressing chip flushing ② spindle splash ring ③ cutting coolant device: nozzle*2pcs and water gun
