NEW FULLLAND GMTC-368

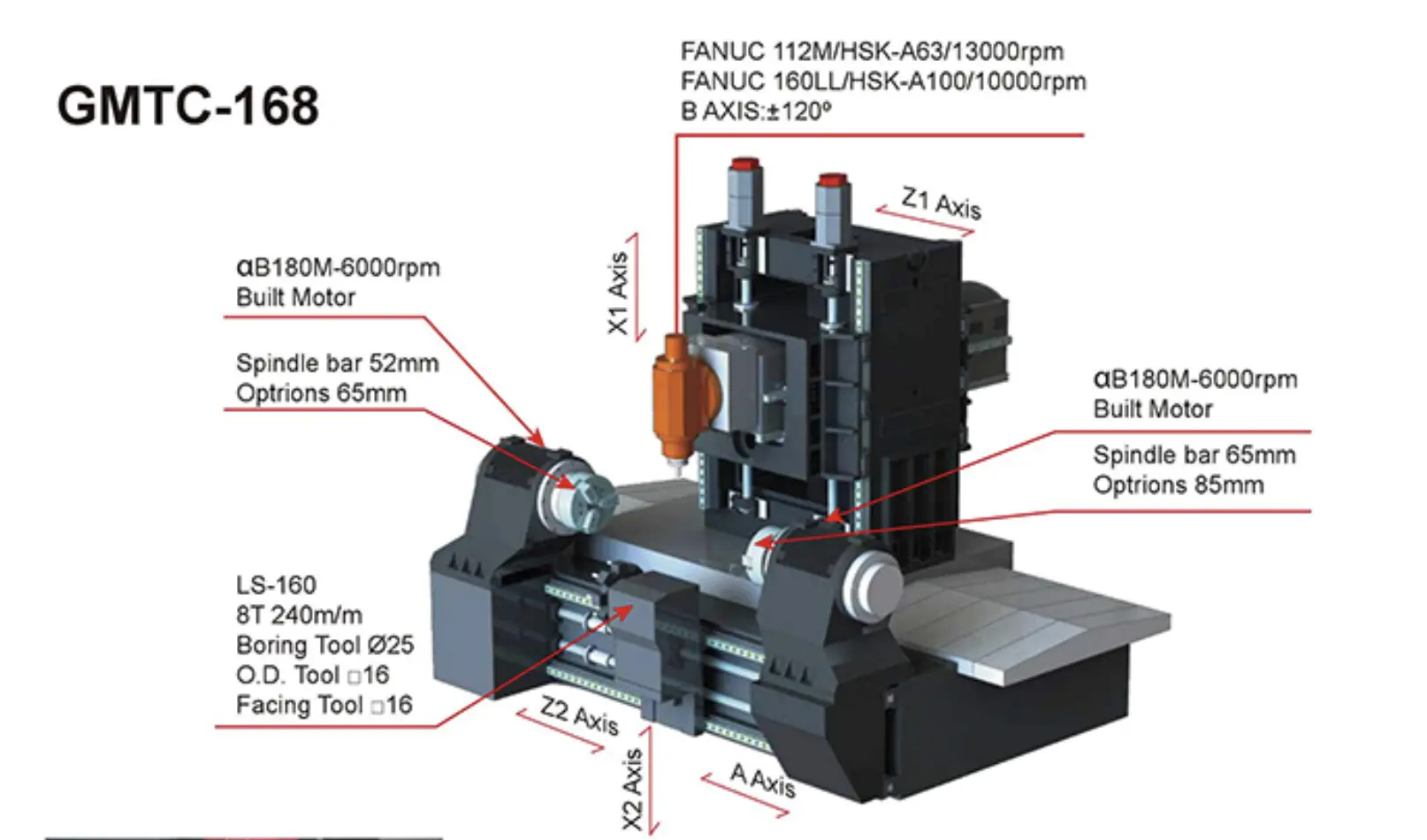

Machine Structure Designed and Refined by FEM Analysis

The most important benefit provided by integrated mill turn centers is the
process integration.
a wide rance or machining vanatons can oe oeromeo, Iom ow malnallo
completion, with one setup, dramatically improving productivity.

Travel 　 　
X1-axis                         800 / 31   mm/(inch)
Y-axis                         600 / 24   mm/(inch)
Z1-axis                         3200 / 126 mm/(inch)
X2-axis                         160 / 6    mm/(inch)
A&Z2-axis                 2700 / 106 mm/(inch)
Spindle nose to C-axis center 120~920
Ball Screw for X1, X2,
 Y, Z2, A axes(dia/Pitch) 40 / 12    (dia/Pitch Z1)
Ball Screw                 63 (12)
