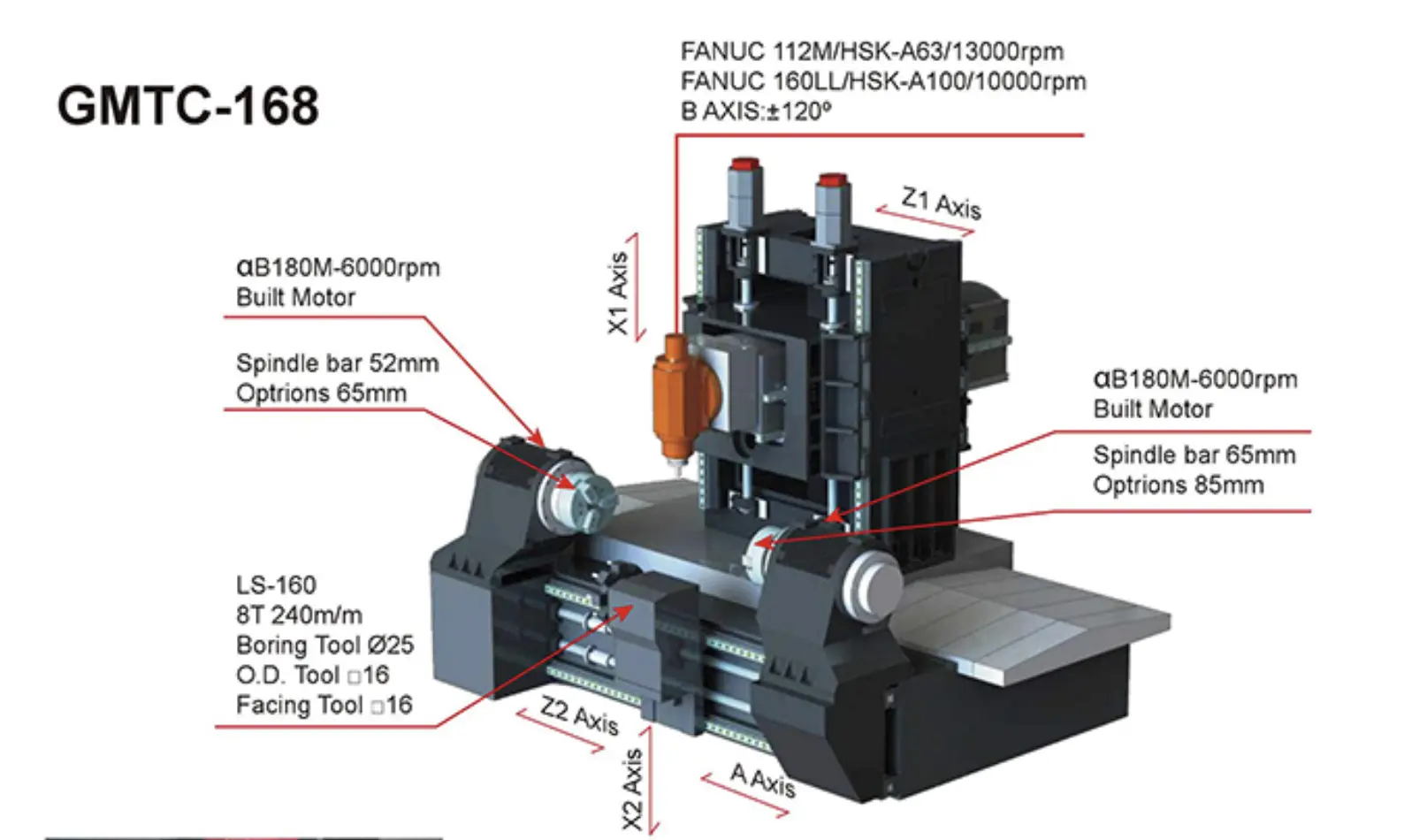

NEW FULLLAND GMTC-168

Machine Structure Designed and Refined by FEM Analysis

The most important benefit provided by integrated mill turn centers is the
process integration.
a wide rance or machining vanatons can oe oeromeo, Iom ow malnallo
completion, with one setup, dramatically improving productivity.

Travel 　 　
X1-axis                         380 / 15  mm/(inch)
Y-axis                         300 / 12  mm/(inch)
Z1-axis                         1200 / 47 mm/(inch)
X2-axis                         160 / 6   mm/(inch)
A&Z2-axis                 700 / 28  mm/(inch)
Spindle nose to C-axis center 120~500
Ball Screw for X1, X2, Y,
 Z2, A axes(dia/Pitch)         40 / 12   (dia/Pitch Z1)
Ball Screw                 50 (12)
