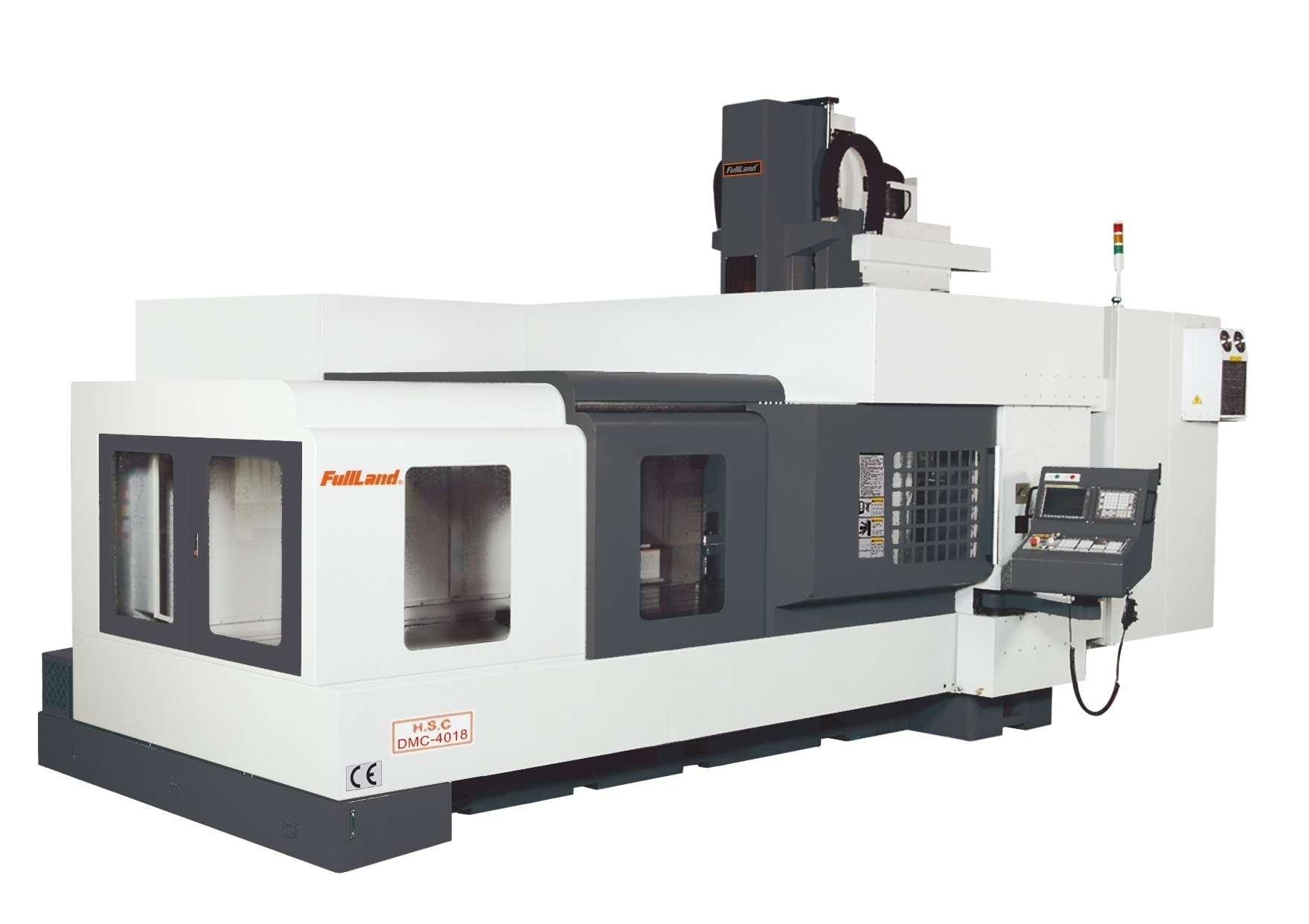

NEW FULLLAND DMC-4018
Overview
Optimum structure of GEOTECH DMC-SERIES is designed by an
excellent and experienced team of engineers. Using Finite Element
Scheme with ANSYS SOFTWARE to ensure rigidity of machines.
After the completion of assembling of whole machine, related
geometric and kinematics tests are via precise instruments
performed.
DMC-SERIES suit for 3-C products
(Consumer Electronics, Communications and Computers)
as well as complicated parts and moulds for injection, automobile
and aerospace industries.
Specs
Travel
X-axis 4000(157.4") mm/(inch)
Y-axis 1700(67") mm/(inch)
Z-axis 900(35.4") mm/(inch)
Z axis(O.P.) mm/(inch)
Spindle nose to table surface 120~1020(4.7~40.1") mm/(inch)
Distance between columns 1800/70.8 mm/(inch)
Table Dimension 4200 x 1700(165 x 67") mm/(inch)
Spindle speed
(Built-in type) 18,000/20,000(O.P.) RPM
Spindle motor (Built-in type) /
Torque Max. 21kw / 200NM kw/NM
Equipped With
1. 3 axes with Linear Guide ways - roller type provide with overall rigidity.
2.Oil Cooling System for X.Y Axes Ballscrew.
3.Patent No. 202004017403.0 was granted by Germany and 1059432 was granted by Spain for improvements in Y-axis (saddle) with three pieces of linear guide ways. The machining rate is increased by 25%.
4.Z-axis (Head) with 4 pieces of Linear Guide ways enabling more stability while cutting.
5.Screw Chip Conveyor system on both sides of bed (X-axis), to help to remove chips out of the bed, avoiding thermal growth.
6.Patent No. 202004019862.2 and 202004019861.4 were granted by Germany for improvements on the radial ribbing design to absorb both the radial and axial forces to achieve rigid machine.
7.Patent No. 202004019861.4 were granted by Germany for improvements on pollution-preventive mechanism on the bed.
