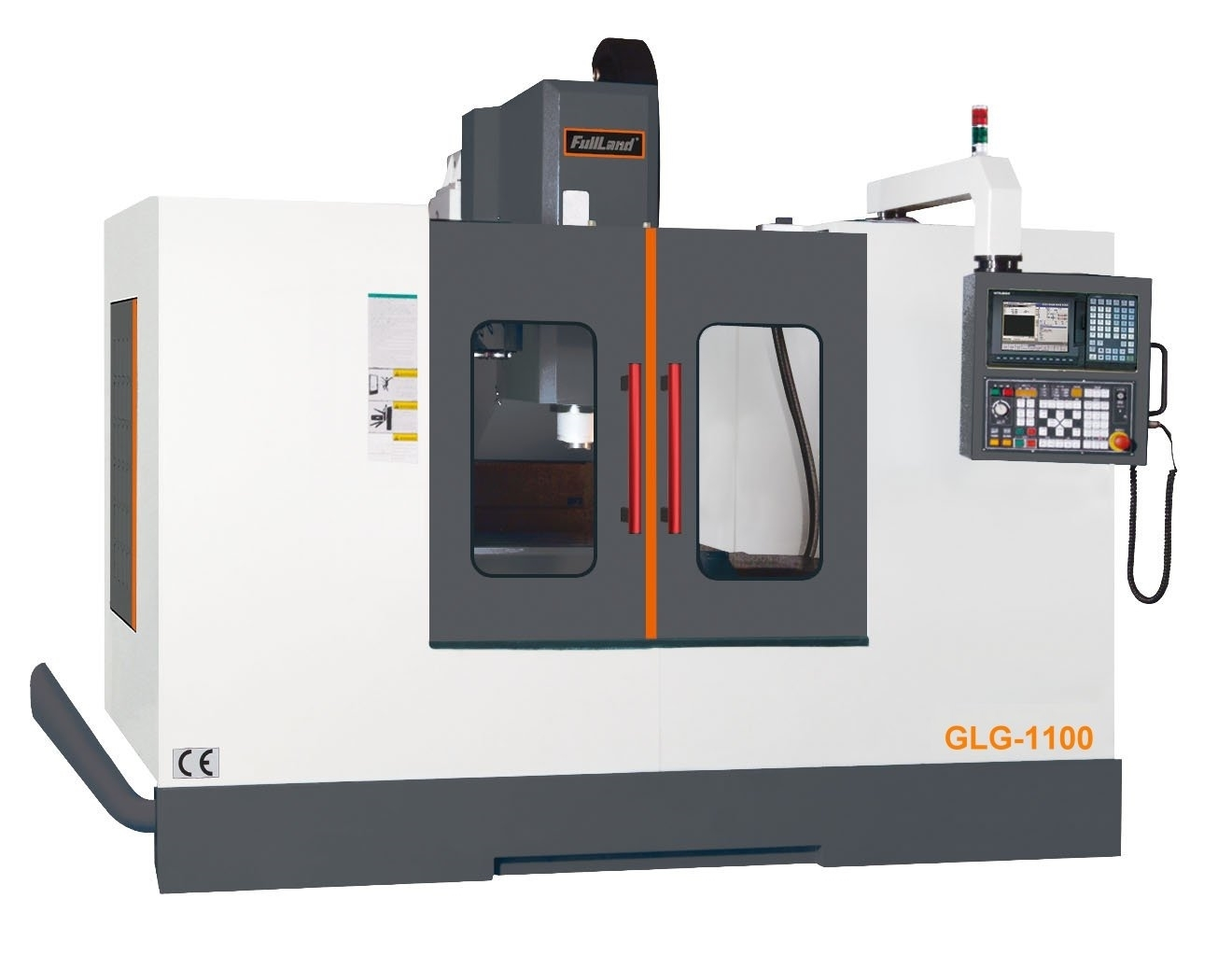

NEW FULLLAND GLG-1100

TRAVEL 　 　
X-axis                          1100(43.3")         mm/(inch)
Y-axis                          650(25.5")         mm/(inch)
Z-axis                          650(25.5")         mm/(inch)
Spindle nose to table surface  100-750 (3.9"-29.5") mm/(inch)
Spindle center to column surface 700(27.5")         mm/(inch)
X.Y.Z. Axis Ball screws dia  40 x Pitch12         mm/(inch)
TABLE
Table Size                  1200 x 650
                                 (47.2" x 25.5") mm/(inch)
Working Area                  1100x 650
                                 (43.3" x 25.5") mm/(inch)
Tee slots (CD x W x NO)          CD100 x 18 x 5         mm/(inch)
Table load (maximun)          1100(2420)         KG(Ibs)

1 X,Y,Z-Axis linear roller guides for heavy loading
2. X travel over 1600mm, the base with 6 linear roller guides
3.Screw Type Chip Conveyor+Water Tank (Front)
Screw Type Automatic Chip Conveyor-2Pcs (Beside Y axis)
4. Spindle Cooling System
5. Functions of two water (oil) pumps :
one is for ① pressing chip flushing ② spindle splash ring ③ cutting coolant device: nozzle*2pcs and water gun
