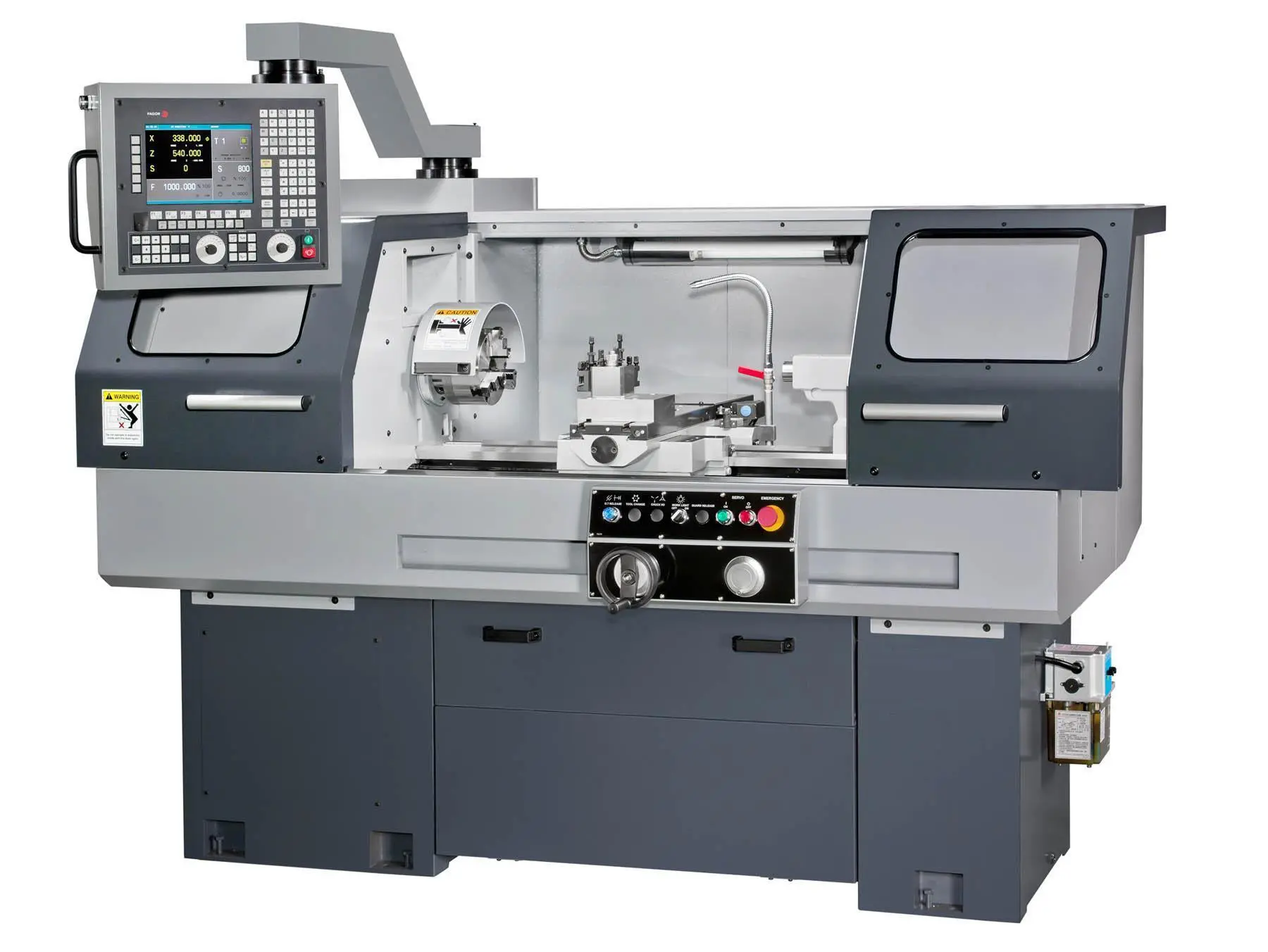

NEW GOSAN 1440NC

MODEL 1440NC

NOMINAL SIZE

Swing over Bed 356mm 14in

High of center 176mm 6-7/8in

Swing over Cross Slide　172mm 6.7in

Distance Between Centers　1000mm 40in

Width of Bedways　206mm 8-1/2in

SPINDLE

Number of spindle speeds　3 / 1(Opt.)

Speed range HI　2000~410 RPM MID　540~110 RPM LO　140~30 RPM 30-2000RPM Servo motor(Opt.)

Hole through spindle　38mm 1-1/2in

Spindle nose　D1-4 CAMLOCK

Taper of spindle bore　M.T.#5

TAIL STOCK

Total travel of tailstock barrel　100mm 3-15/16in

Taper in tailstock barrel　

M.T.#3

Diameter of barrel　Dia. 45mm 1-3/4in

X-axis

Travel 203mm 8in

Rapid travel 6m/min

Ballscrew Dia.　25mm Pitch5

Max servo force　6.3Nm

Z-axis

Travel　840mm 33-1/2in

Rapid travel 8m/min

Ballscrew Dia.　32mm Pitch5

Max servo force　6.3Nm

TOOLPOST

Number of tools　4T

Shank Tool20 mm

Cutting Distance　800~950mm

ELECTRICAL EQUIPMENT

Main spindle motor　5HP motor 3.5KW /Servo motor 7.5HP 5.7KW(Opt.)

Axis servo motor　Servo motor 1.6HP 1.2KW

Auto lubrication　3L 220V

Coolant pump　1/8HP 220V

PACKING SIZE

SPACE　2070 X 1360 X 1683mm

PACKING SIZE　2300 x 1460 x 2120mm

Machine net weight　1200 kg

Gross weight　1300 kg

STANDARD ACCESSORIES:

1. CNC control system.

2. 3 Jaw chuck 6 inch (165mm) with backplate.

3. Manual Quick change tool post.

4. Steady rest

5. Automatic lubrication system

6. Coolant pump system

7. Electrical hand wheel

8. Work lamp

9. Signal lamp

10. Safety guard

11. Toolbox with tools.

12. Center sleeve

13. Two dead centers

14. Camlock spindle wrench.

15. Oil gun

16. Optional manual and part list

OPTIONAL ACCESSORIES:

1. 3-jaw strong scroll chuck

2. 4-jaw independent chuck

3. Face plate

4. Follow rest

5. Electrical 4 way tool post

6. Live center M.T.#3.

7. Drilling chuck ½in. (13mm)

8. Hydraulic chuck system 3 jaw 6" chuck

9. Hydraulic tailstock

10. Transformer

11. CE Standard Equipment
