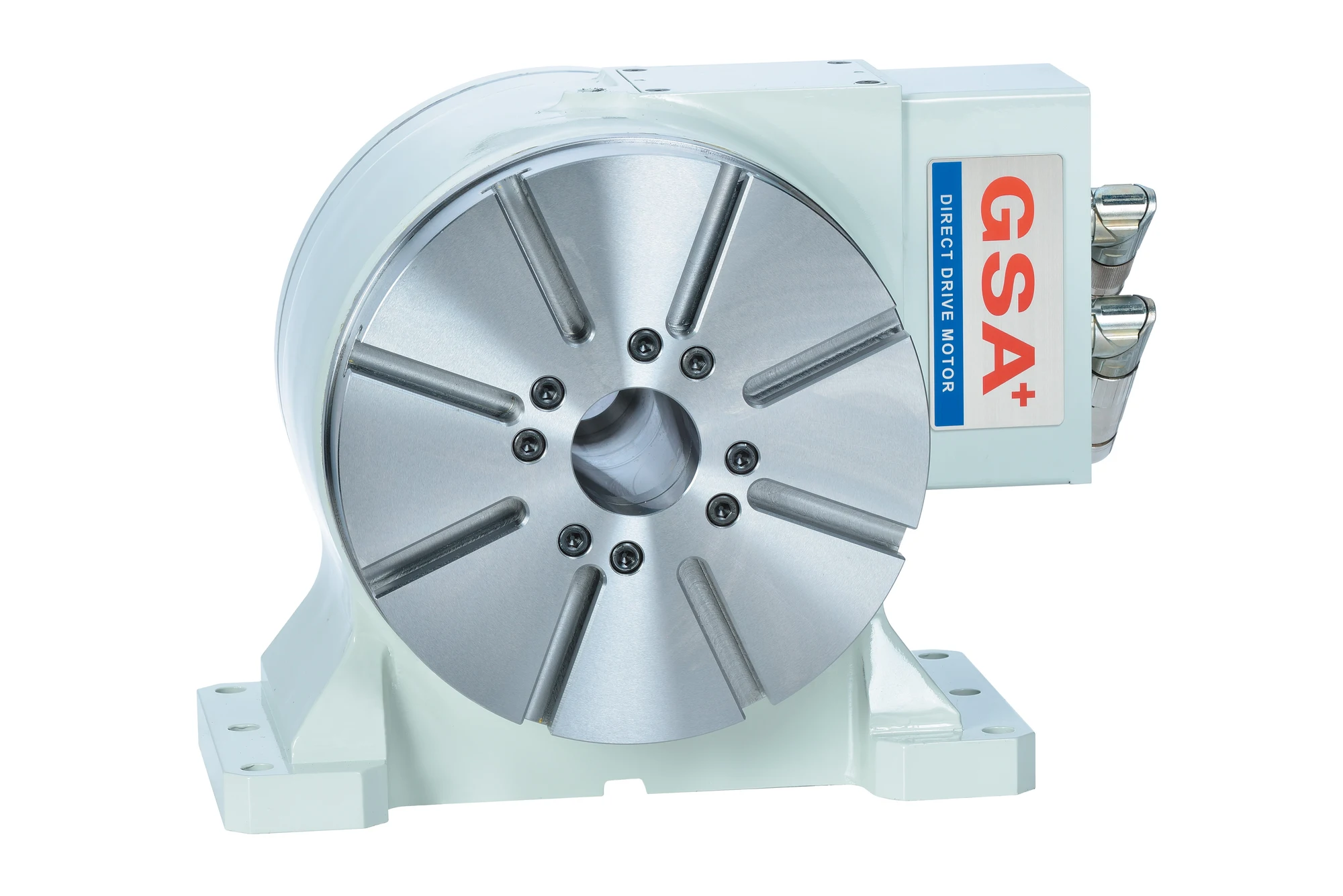

NEW GSA+ DDR210-50A

Direct Drive Motor-Rotary Table
High Speed
High Rigidity
Non-Backlash

Table diameter                   ø170 / 200
Center height                   135
Thru-hole dia                   ø55 H7
Width of T-slot                   12 H7
Width of guide block           18 H7
Pneu. clamp force           180
Hydro. clamp force           N
Capacity of workpiece mass   60
Max. tilting monent           320
Encoder                           HEIDENHAIN-ECA80
Min. indexing degree           0.001°
Indexing accuracy           20"
Repeatability accuracy           4"
Cooling method                   NATURE
Drive input voltage (Three-phase) 220
Rated / Peak torque           47/120
Rated / Max. speed           120/200
N.W.                           68
