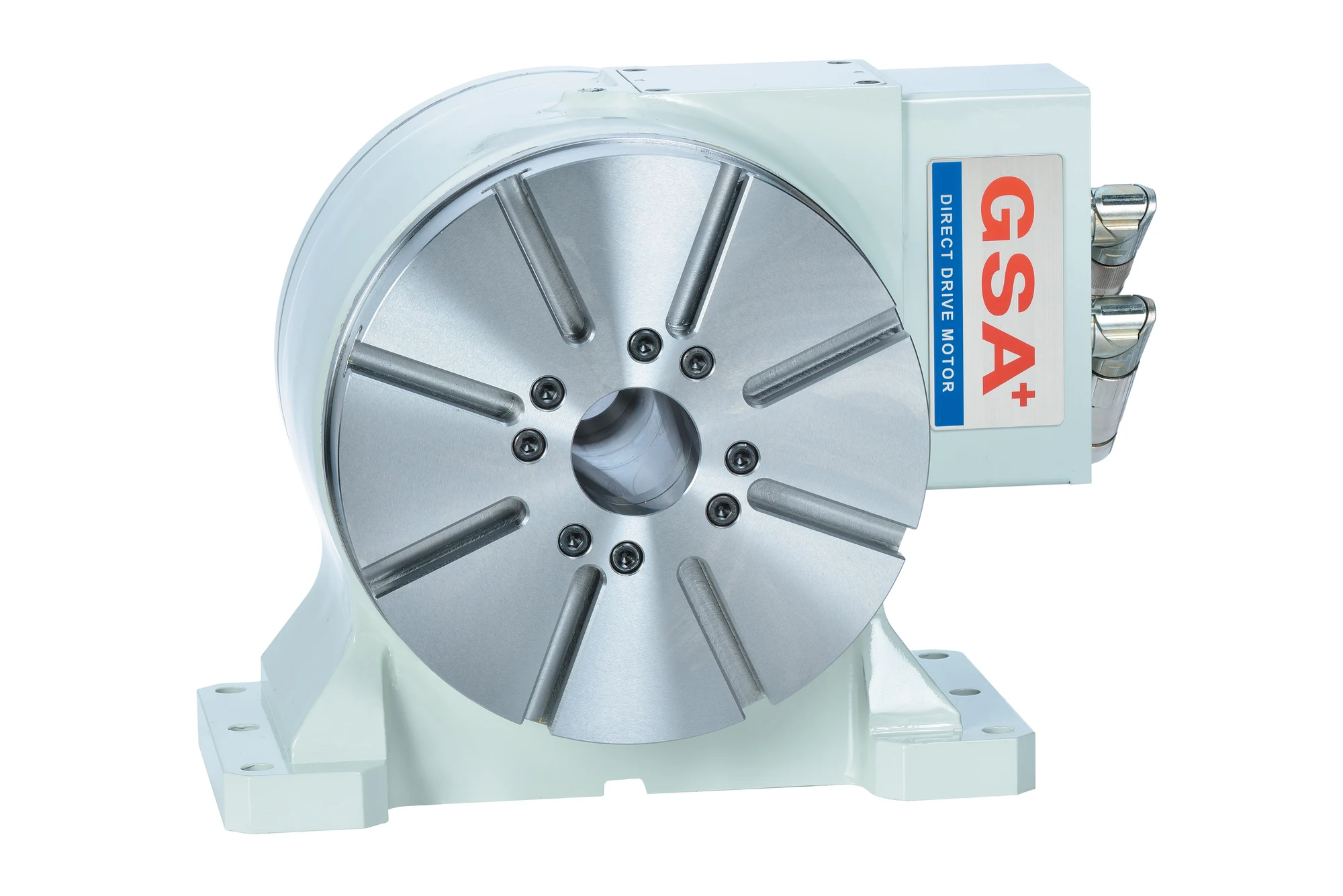

NEW GSA+ DDR175-50A

Direct Drive Motor-Rotary Table
High Speed
High Rigidity
Non-Backlash

Table diameter                   ø125
Center height                   110
Thru-hole dia                   ø20 H7
Width of T-slot                   12 H7
Width of guide block           14 H7
Pneu. clamp force           97
Hydro. clamp force           389
Capacity of workpiece mass   30
Max. tilting monent           120
Encoder                           HEIDENHAIN-ECA80
Min. indexing degree           0.001°
Indexing accuracy           20"
Repeatability accuracy           4"
Cooling method                   NATURE
Drive input voltage (Three-phase) 220
Rated / Peak torque           28/83
Rated / Max. speed           150/250
N.W.                           50
