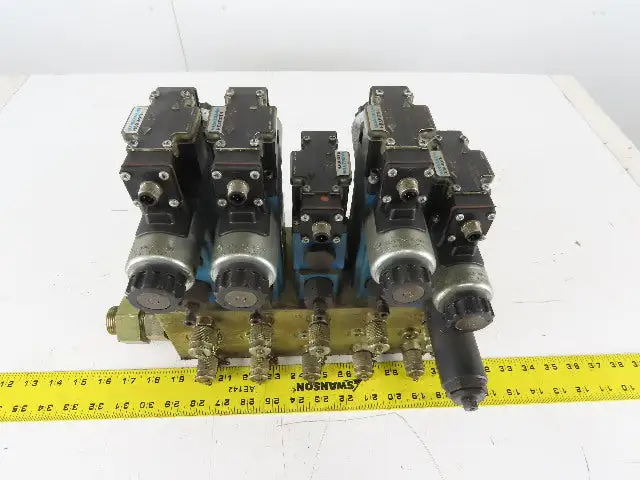

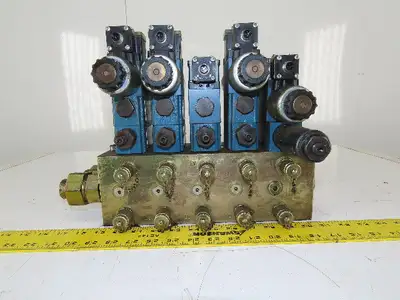

Rexroth 4WE6Y61 4/3 Way Hydraulic Valve Regulated Check Assembly
USD $495.89
Overview
Specifications
5 valve sections
(3) 4WE6J61/EG24N9DK24L2 4/3 Position Float center
(1) 4WE6Y61/EG24N9DK24L2 4/2 position spring return/assist
(1) 4WE6D61/OFEG24N9 4/2 Position
(1) ZDR 6 DA2-43/75Y pressure reducing valve
(4) Z2FS 6-2-43/2QV double throttle check valve 315 bar MAX pressure
(3) check valve sections with obscured numbers
24VDC coils
