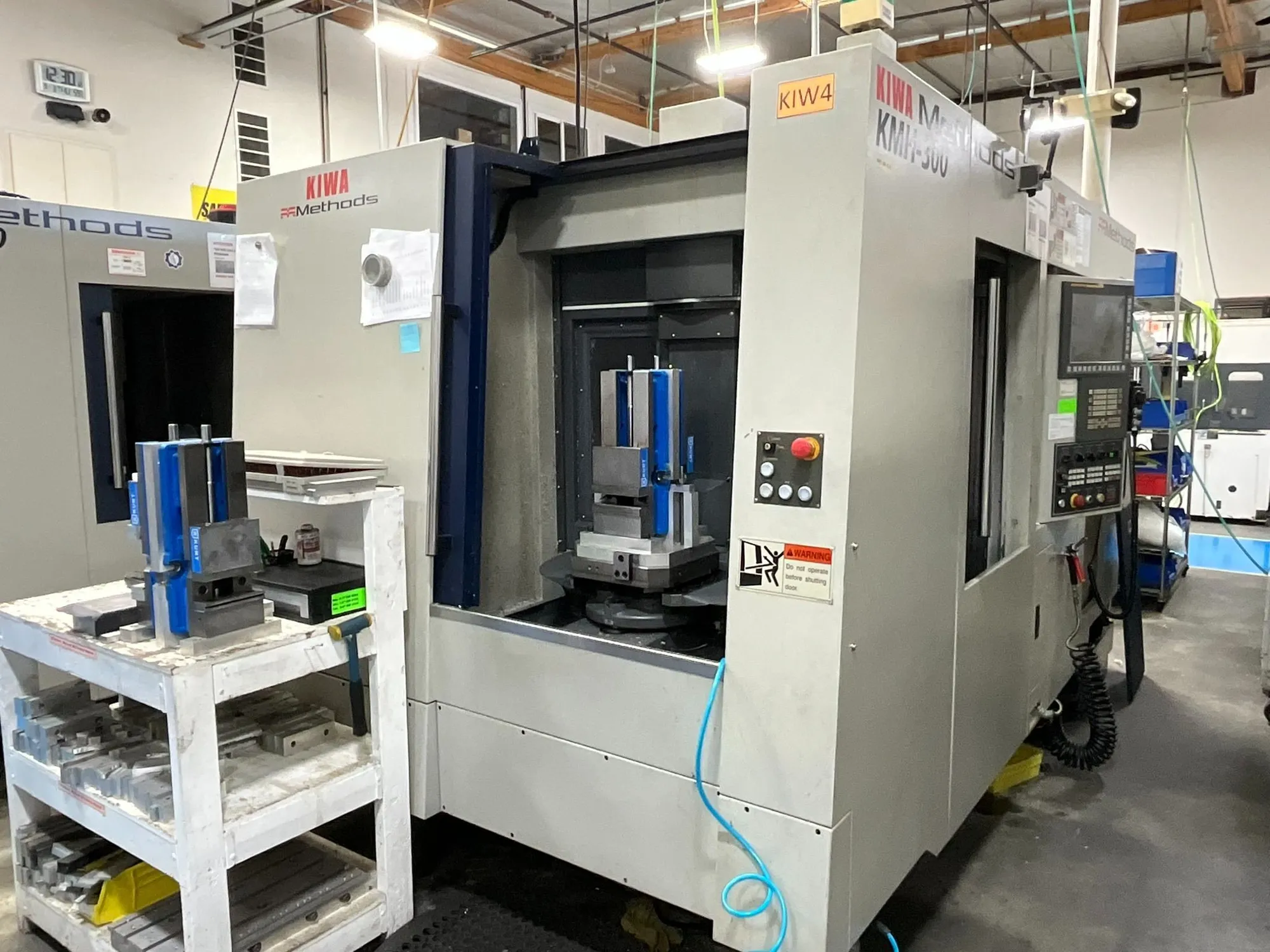

USED 2014 KIWA KMH300-F001
Overview
Specifications
| X Axis Travel | 18.1" | 459.74 mm |
|---|---|---|
| Y Axis Travel | 18.1" | 459.74 mm |
| Z Axis Travel | 13.7" | 347.98 mm |
| Feed | 787 in/min | 787 in/min |
| Spindle Motor | 15 hp | 11.2 kW |
| Spindle Speed | 15,000 RPM | 15,000 RPM |
| ATC Capacity | 30 | 30 |
| Spindle Taper | BT Big Plus-30 | BT Big Plus-30 |
| Max Load | 550 lb | 249.5 kg |
| Pallet Size | 12.6" x 12.6" | 12.6" x 12.6" |
| Number of Pallets | 2 | 2 |
| Weight | 13,228 Lbs | 13,228 Lbs |
Equipped With
Fanuc Series 0i-MD CNC Control
Full 4th-Axis
AI Nano Contour Control II (200 Block Look Ahead)
Through Spindle Coolant 500 psi
Spindle Oil Cooling System
Coolant Through Ballscrew
Chip Conveyor
CE Standard
Data Server/"Fast" Ehternet/1 Gig of Memory
**No Tooling Available**
