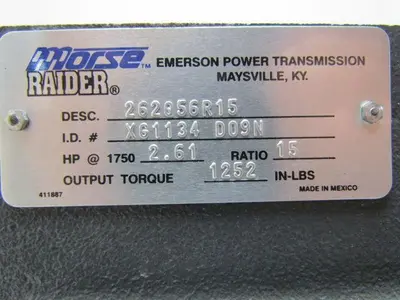

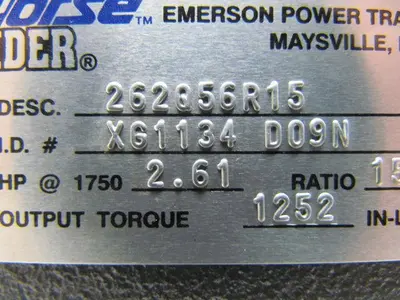

Emerson Morse Raider 262Q56R15 Worm Gear Box Speed Reducer 15:1 Ratio 2.61 HP RH

Nema frame size: 56
Ratio: 15:1
Input RPM: 1750
Output RPM: 116
Input shaft diameter: 5/8"
Output shaft diameter: 1-1/8"
Vent Not included
Output Torque:  1252(in/lbs)
Approximate dimensions of main body not including bell shaped motor adaptor (If Included) Length:7-1/2 " Width: 5-1/2" Height: 8"
All gear reducers must have a breather vent. This allows for expansion and contraction of the air within the casing as a result of temperature changes. If a gearbox is used without a breather, oil leakage and seal failure may result. Gear boxes may or may not have oil or breather. Buyer is responsible to ensure gear box is properly vented and has proper oil and oil level prior to use.
