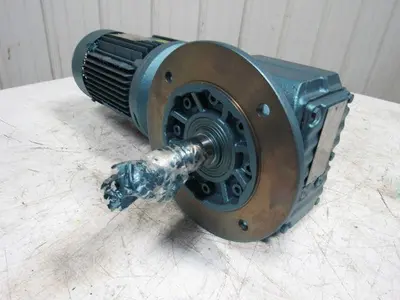

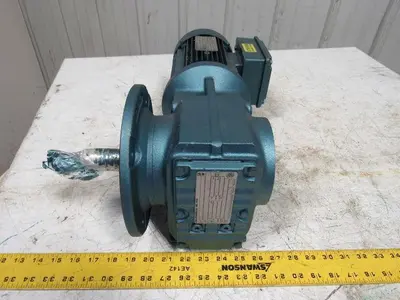

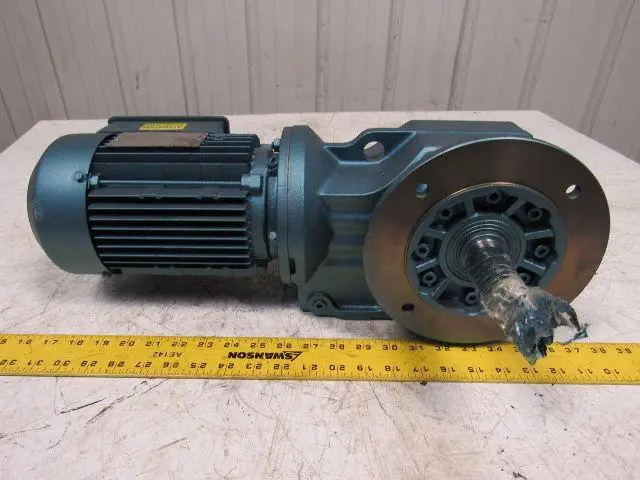

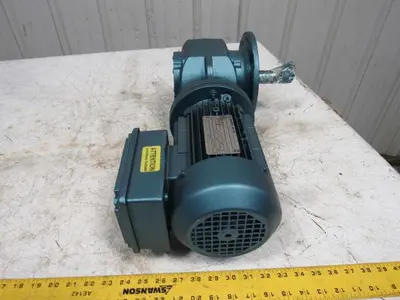

SEW-EURODRIVE KF47DT80N4 1Hp Right Angle Gear Speed Reducer 230/460V 3Ph

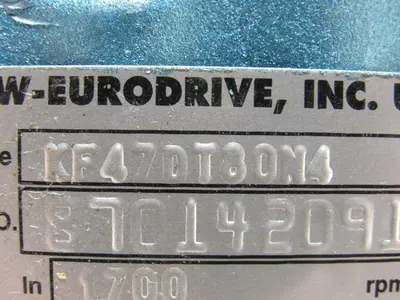

SO# 870142090.06.06.001
 Gear Ratio  46.03
 Output Speed  37
 Mtg Position  M1A

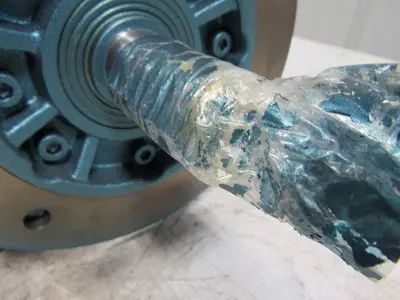

 Shaft Diameter  30MM
 Flange Diameter  200MM
 Conduit Box Loc  270
 Cable Entry  3
 Out Torque (lb-in)  1706
 Gear S.F.  2.1

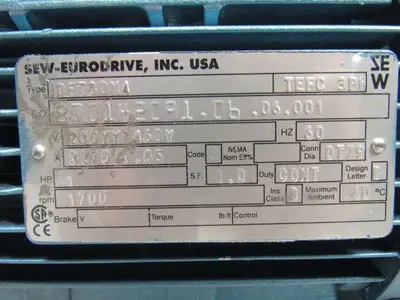

 Motor HP  1
 Motor Voltage  230YY/460Y
 Frequency  60
 Connection  DT79
 Motor Amps  3.70/1.85
 KVA Code  J
 Insulation Class  B
