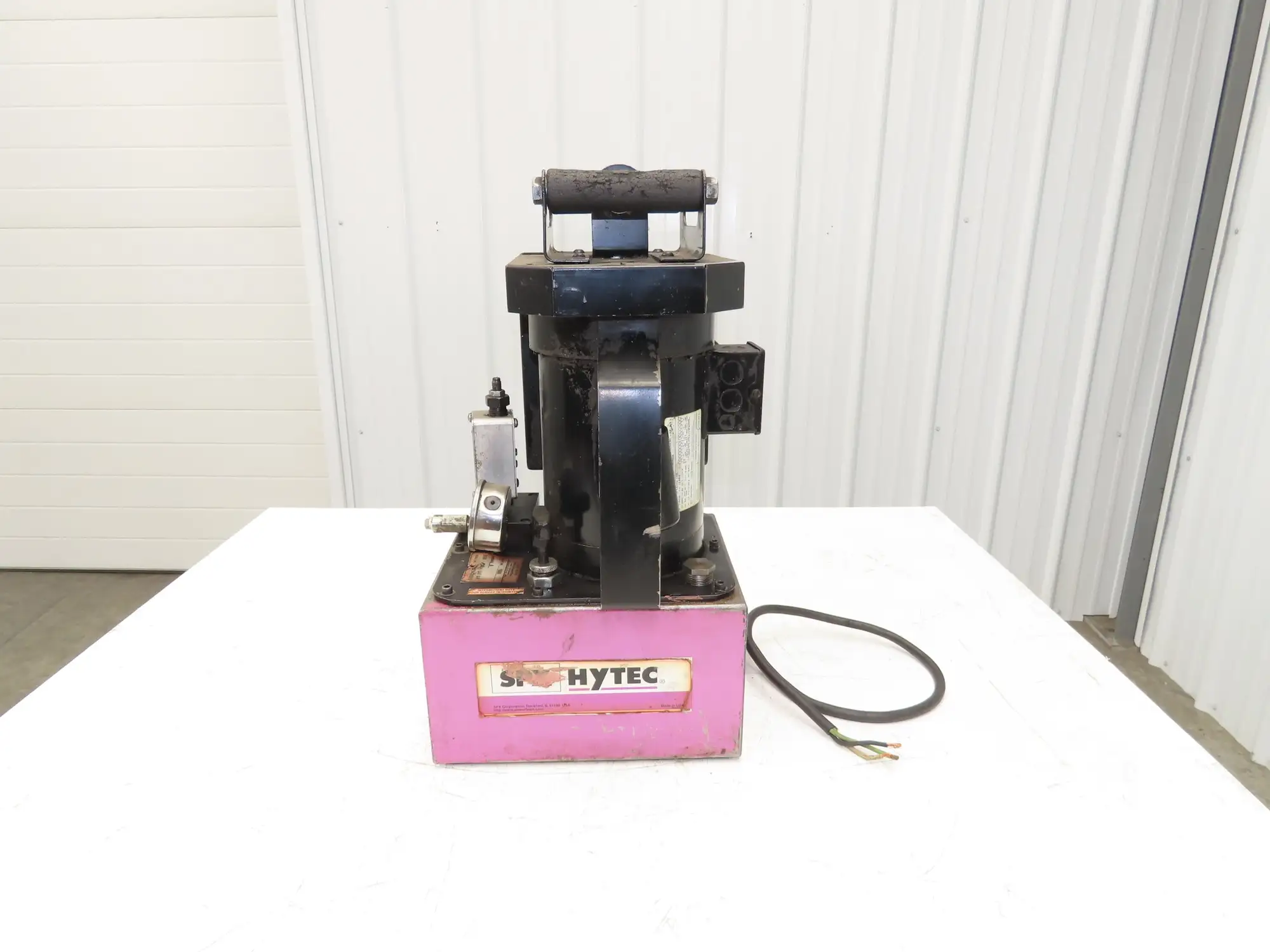

SPX Hytec 100888 Hydraulic Power Workholding Pump Unit 2.5gal 115V
USD $474.99
Overview
Specifications
Hydraulic Power Unit In Good Used Condition. Removed from Spare Parts Storage.
Remote On/Off Switch and power supply plug are cut off of the unit.
Unit wiring needs to be repaired. Electrical Box Cover is missing a screw.
Tank Mounting Bolts are missing.
Unit Housing is bent on the top.

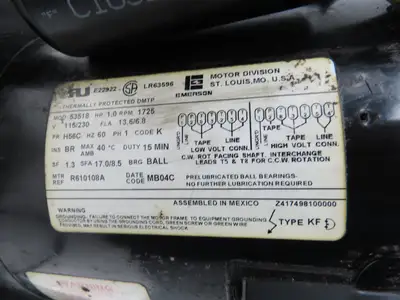

1Hp 1725rpm 115/230V 1PH motor. Wired with 115V plug.
2.5-gallon metal reservoir. Tank Size (LxWxH): 11.5x9.5x6"
44 cu. in./min. oil flow at max 5000psi pressure.

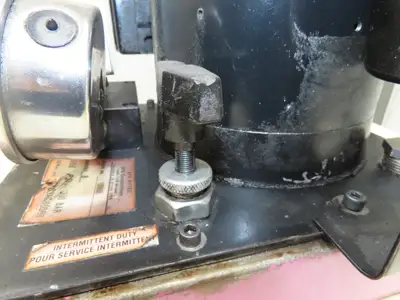

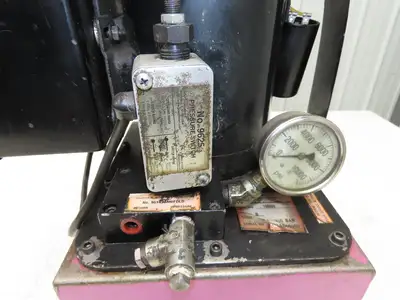

Pump output is controlled by a pressure switch and pressure regulator, both adjustable from 1,000 to 5,000 psi. Regulator is inside the tank control knob is on top of tank.
1/4" ports on manifold # 9614
