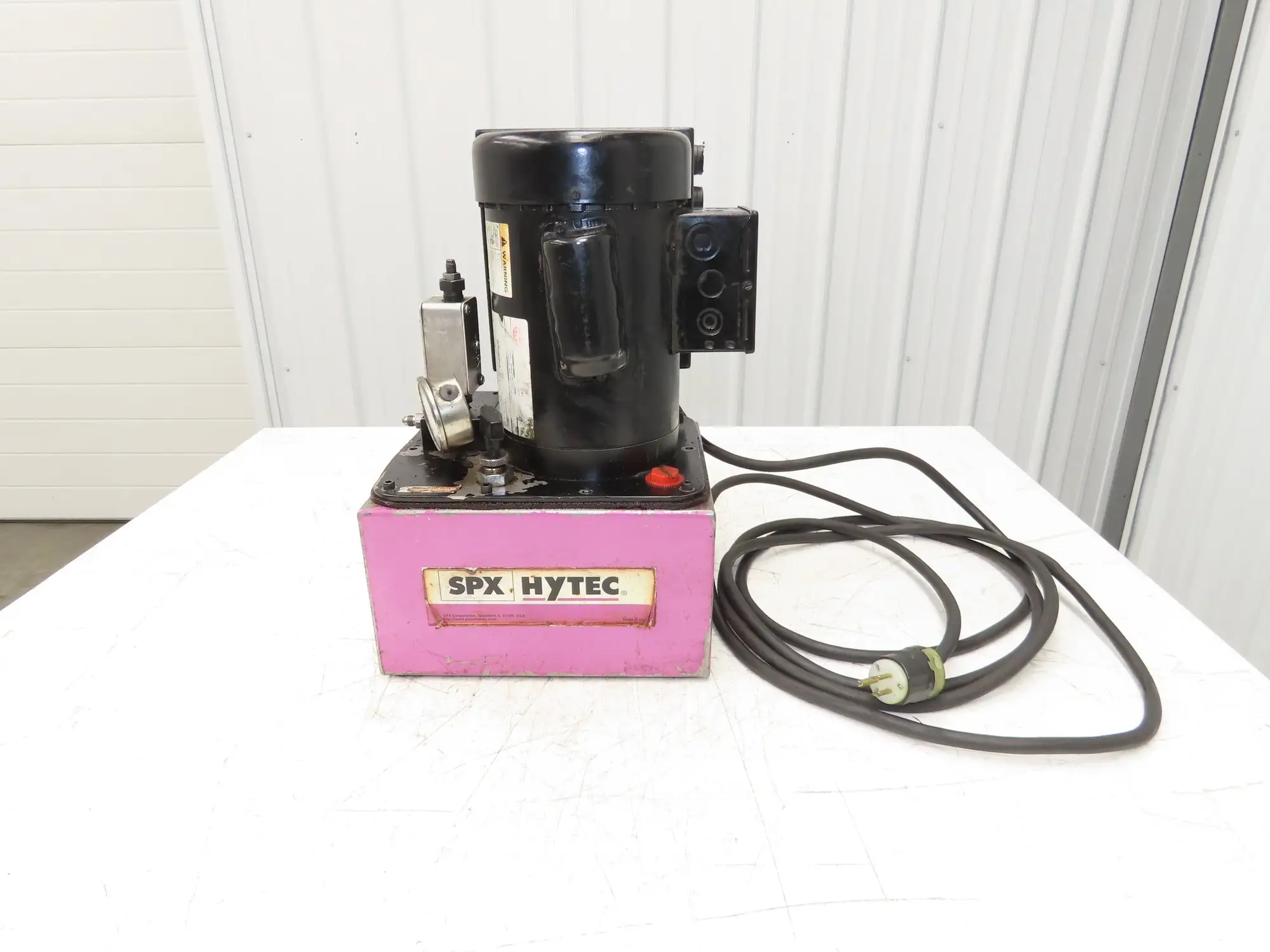

SPX Hytec 100888 Model B Hydraulic Power Workholding Pump Unit 2.5gal 115V
USD $664.99
Overview
Specifications
Pump and motor work properly. Unit needs to be re-wired.
Remote On/Off Switch and power supply plug are Removed from the unit.
Unit wiring needs to be repaired. Electrical Box Cover is missing 2 screws.
Several Tank Mounting Bolts are missing.
1Hp 1725rpm 115/230V 1PH motor. Wired with 115V plug.
2.5-gallon metal reservoir. Tank Size (LxWxH): 11.5x9.5x6"
44 cu. in./min. oil flow at max 5000psi pressure.

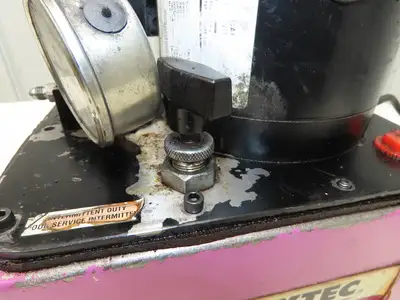

Pump output is controlled by a pressure switch and pressure regulator, both adjustable from 1,000 to 5,000 psi. Regulator is inside the tank control knob is on top of tank.
