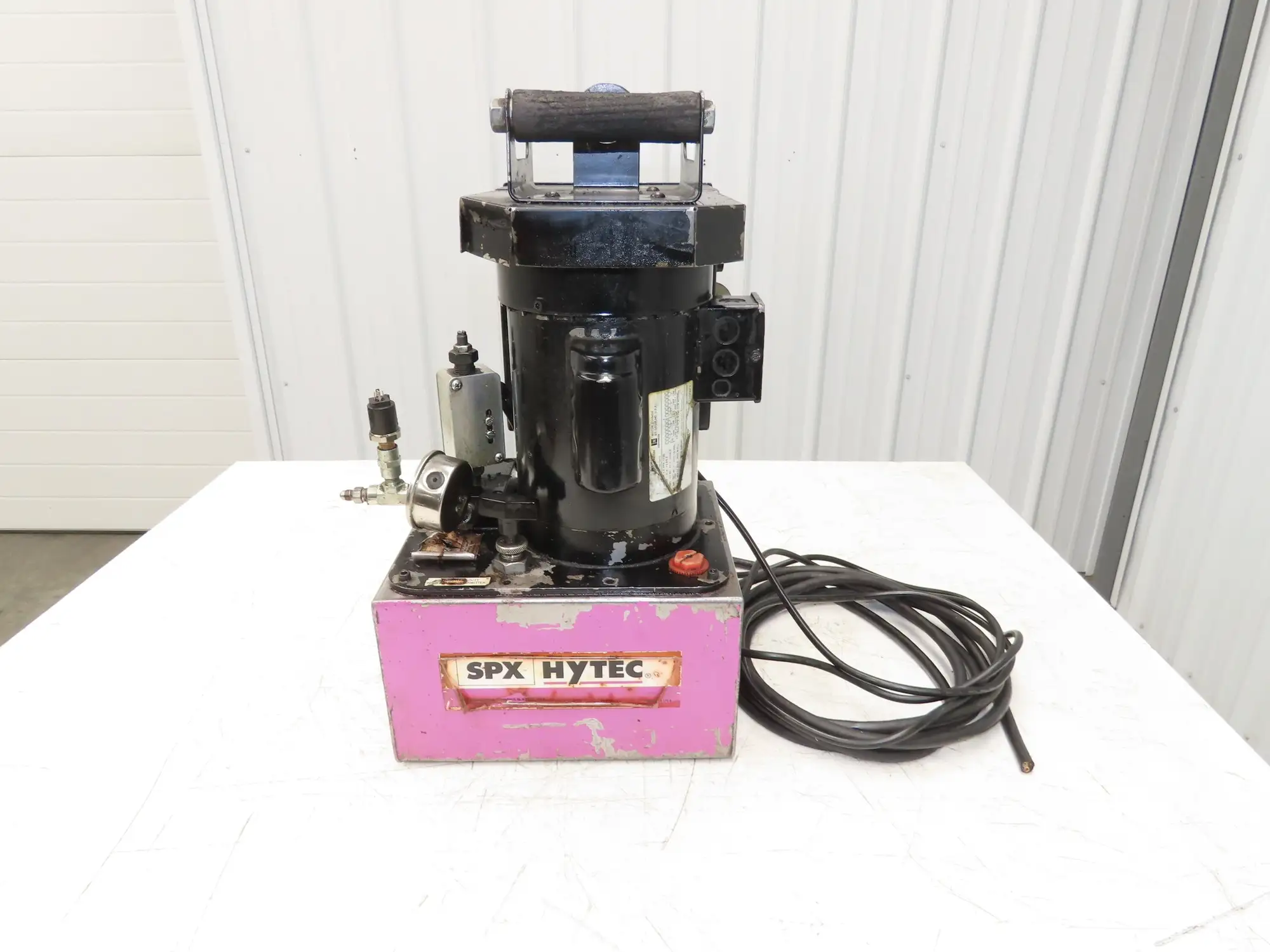

SPX Hytec 100888 Model B Hydraulic Power Workholding Pump Unit 2.5gal 115V

USD $645.99
1 available
Overview
Manufacturer:
SPX HYTEC
Stock #:
283556
Specifications

Pump and motor work properly. Unit needs to be re-wired.

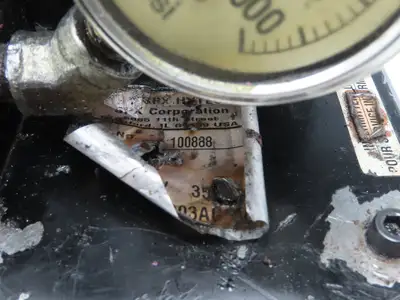

Gauge needs to be replaced.
Remote On/Off Switch and power supply plug are Removed from the unit.
Unit wiring needs to be repaired. Electrical Box Cover is missing 1 screw.
Several Tank Mounting Bolts are missing.

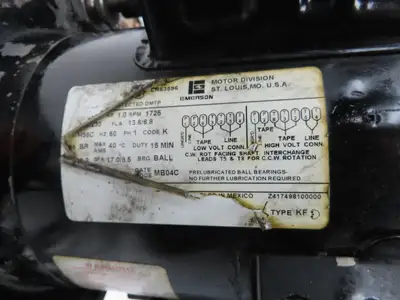

1Hp 1725rpm 115/230V 1PH motor.  Wired with 115V plug.
2.5-gallon metal reservoir.  Tank Size (LxWxH): 11.5x9.5x6"
44 cu. in./min. oil flow at max 5000psi pressure.

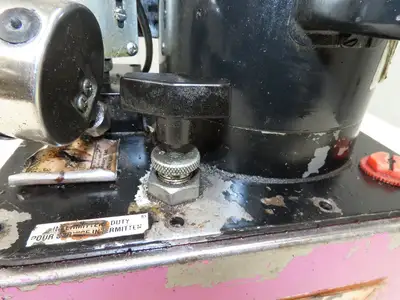

Pump output is controlled by a pressure switch and pressure regulator, both adjustable from 1,000 to 5,000 psi.  Regulator is inside the tank control knob is on top of tank.
