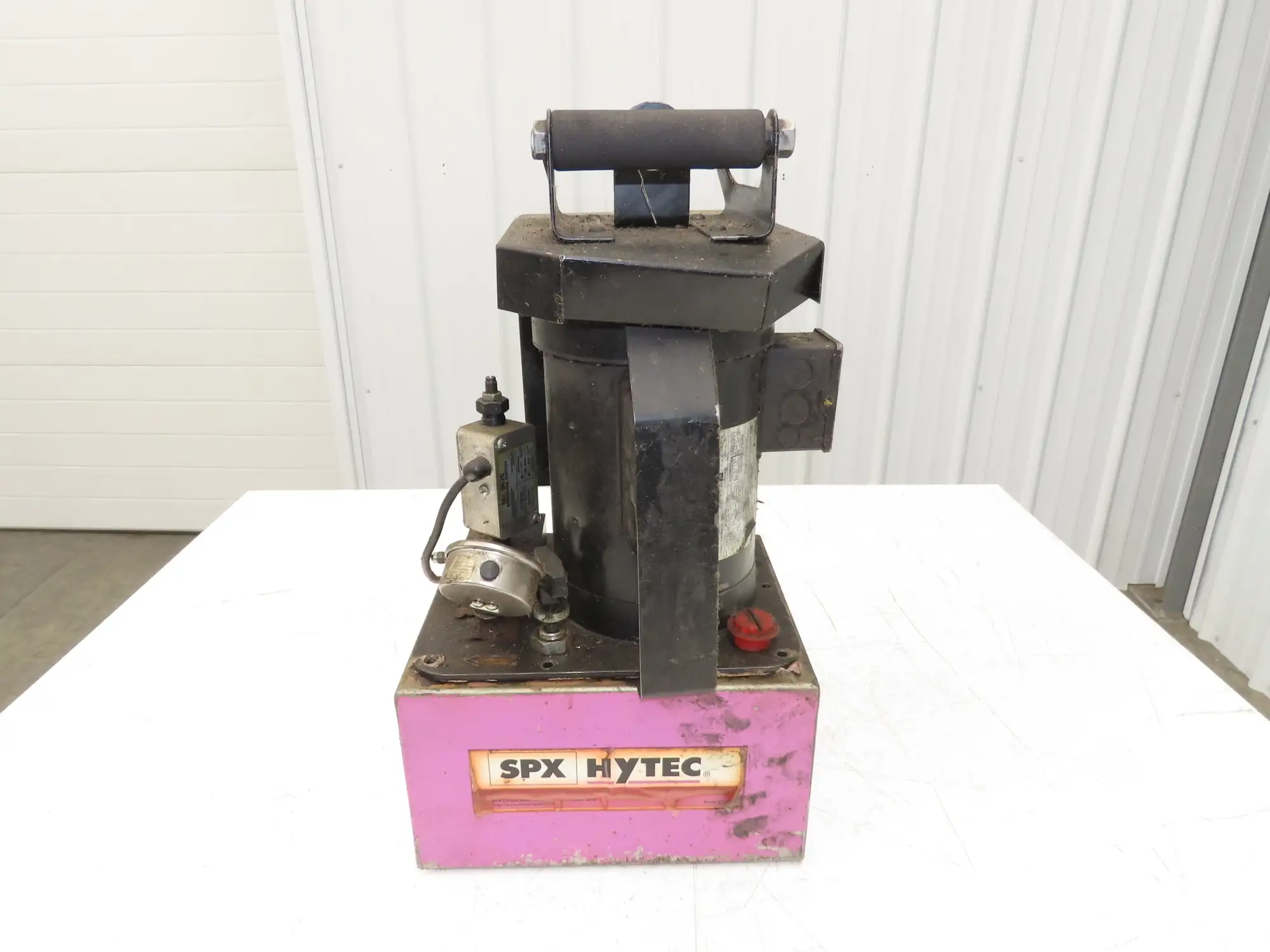

SPX Hytec 100888 Hydraulic Power Workholding Pump Unit 2.5gal 115V
USD $427.49
Overview
Specifications
Hydraulic Power Unit In Good Used Condition. Removed from Spare Parts Storage.
Remote On/Off Switch and power supply plug are cut off of the unit.
Unit wiring needs to be repaired. Electrical Box Cover is missing all screws.
Tank Mounting Bolts are missing.
Unit Housing is bent on the top.

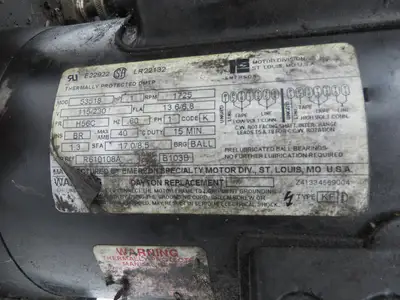

1Hp 1725rpm 115/230V 1PH motor. Wired with 115V plug.
2.5-gallon metal reservoir. Tank Size (LxWxH): 11.5x9.5x6"
44 cu. in./min. oil flow at max 5000psi pressure.
Pump output is controlled by a pressure switch and pressure regulator, both adjustable from 1,000 to 5,000 psi. Regulator is inside the tank control knob is on top of tank.
1/4" ports on manifold # 9614
