USED AIDA TCS-40-35/70

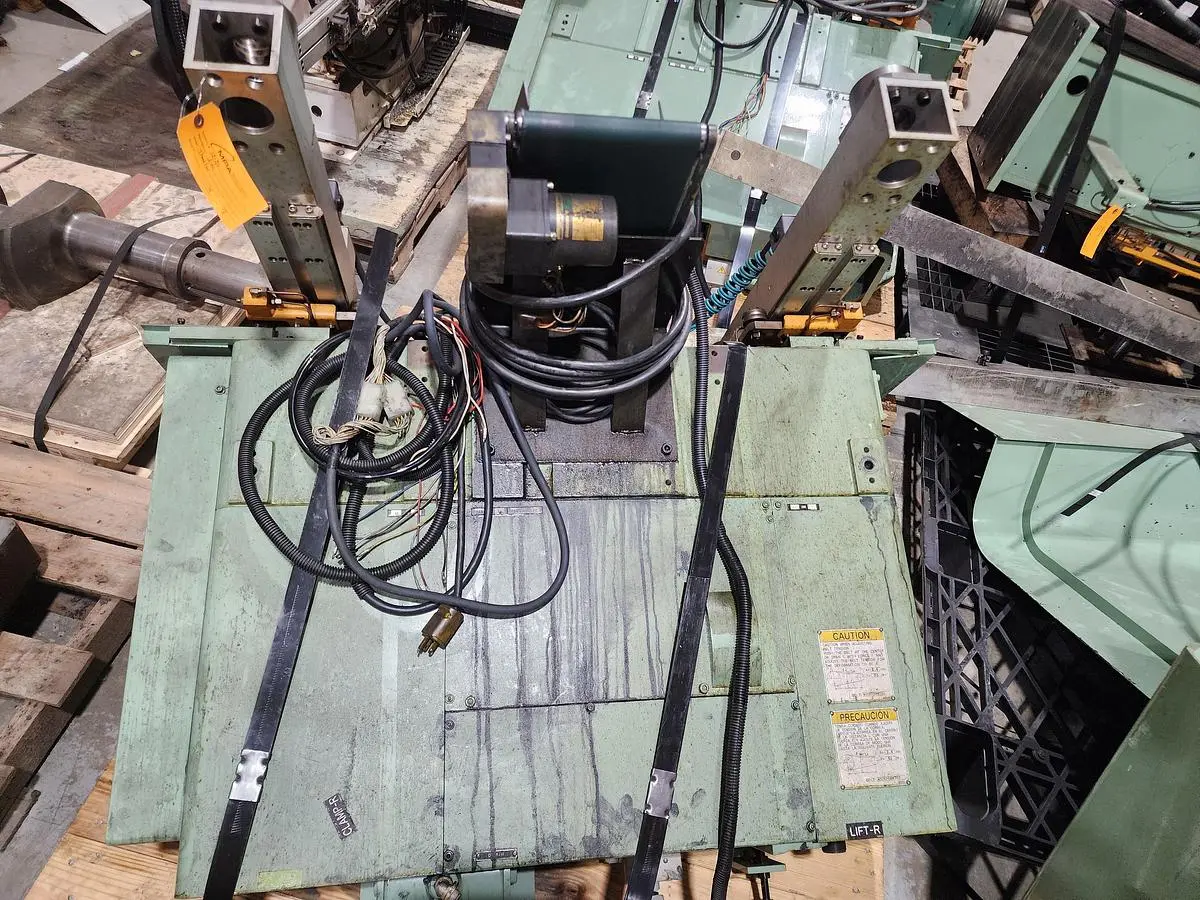

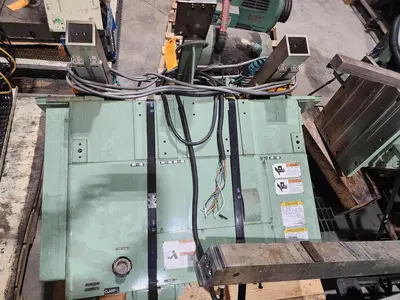

The AIDA TCS-40-35/70 Servo Transfer Feeder is a reliable solution for efficient transfer systems in industrial settings. It features a model and serial number of TCS-40-35/70 and 12300-6555, respectively. Its feed stroke reaches up to 15.748 inches, while the clamp stroke extends to 6.889 inches and the lift stroke to 2.362 inches. This unit is capable of handling a minimum distance of 13.779 inches between bars when clamped, expanding to a maximum of 27.559 inches when unclamped.

The feeder’s design incorporates a bolster to feed bar top at its lowest point measuring 15.748 inches. This model uses AC servo motors for various operations: a 4.0 kW motor powers the feed drive, a 3.0 kW motor is dedicated to the clamp drive, and a 2.0 kW motor operates the lift drive. These motors ensure precision and efficiency in its performance. The AIDA TCS-40-35/70 can handle a feedable weight limit of up to 88.184 lbs, making it suitable for various industrial applications.

This used transfer feeder offers robust performance with substantial specifications, providing a reliable option for facilities looking to enhance their transfer system operations with servo motor precision.

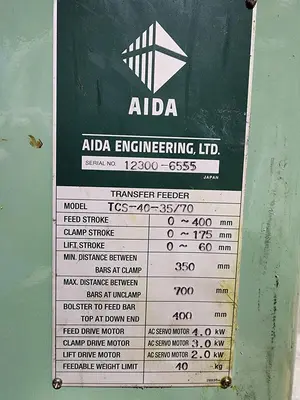

MODEL NUMBER: TCS-40-35/70
SERIAL NUMBER: 12300-6555
FEED STROKE: 0 - 15.748"
CLAMP STROKE: 0 - 6.889"
LIFT STROKE: 0 - 2.362"
MIN DISTANCE BETWEEN BARS AT CLAMP: 13.779"
MAX DISTANCE BETWEEN BARS AT UNCLAMP: 27.559"
BOLSTER TO FEED BAR TOP AT DOWN END: 15.748"

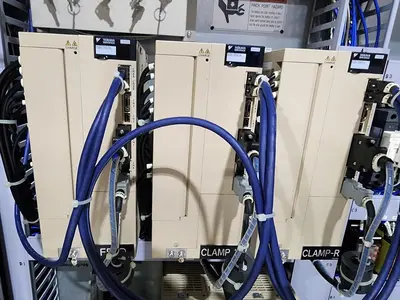

FEED DRIVE MOTOR: AC SERVO MOTOR, 4.0 KW
CLAMP DRIVE MOTOR: AC SERVO MOTOR, 3.0 KW
LIFT DRIVE MOTOR: AC SERVO MOTOR, 2.0 KW
FEEDABLE WEIGHT LIMIT: 88.184 LBS
