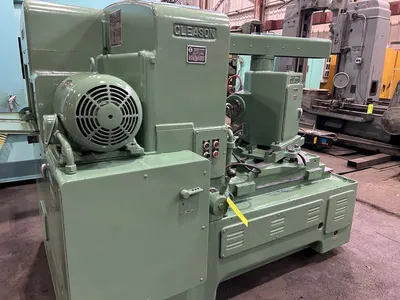

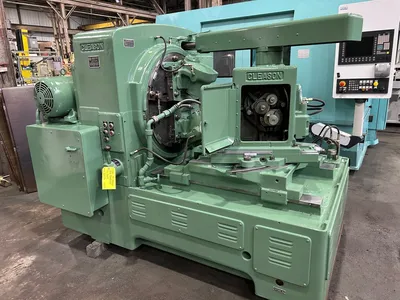

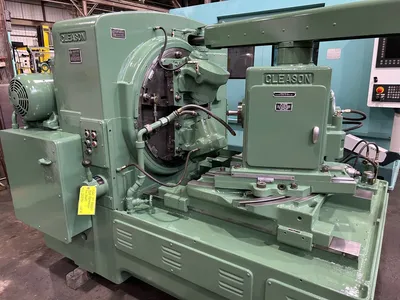

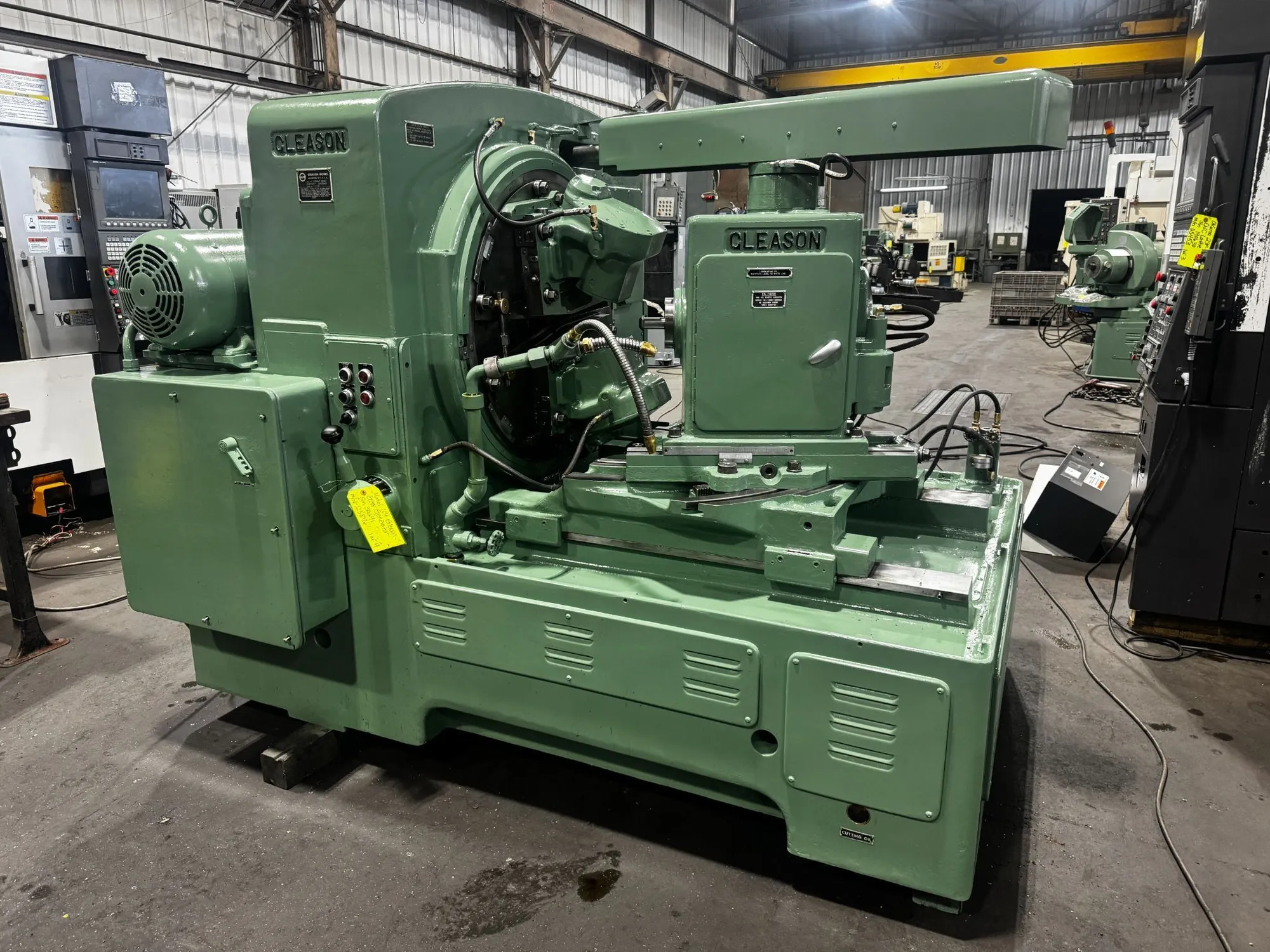

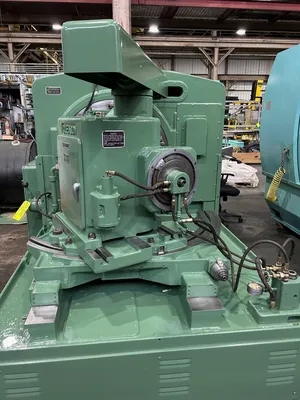

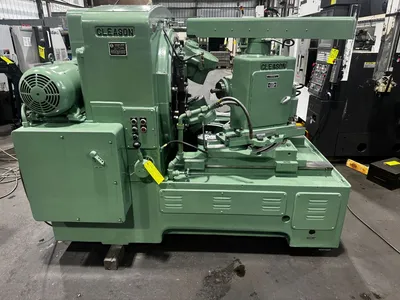

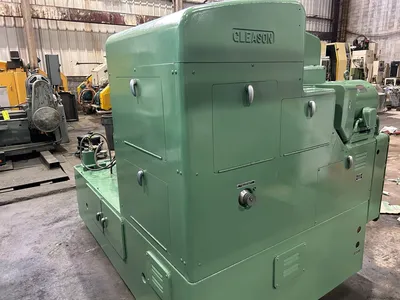

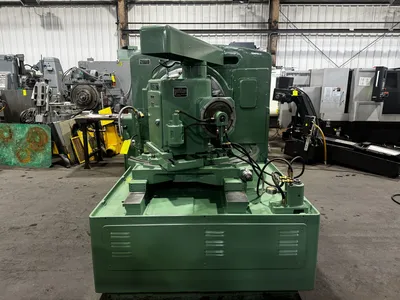

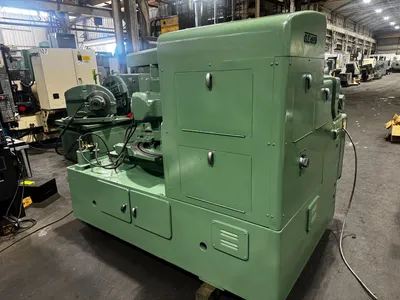

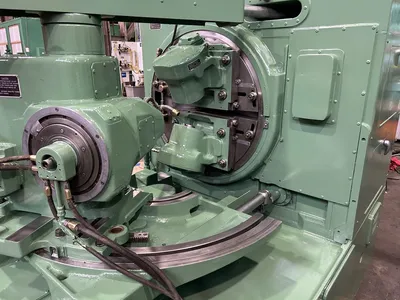

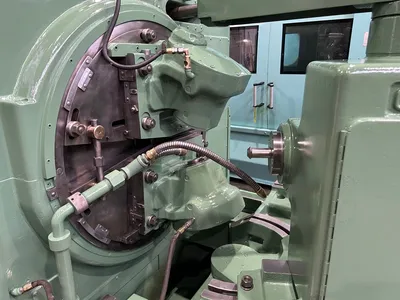

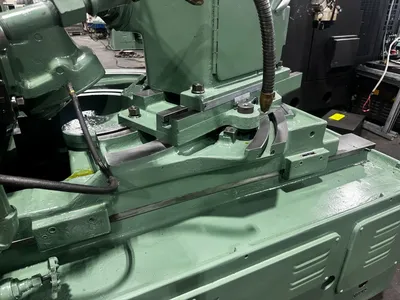

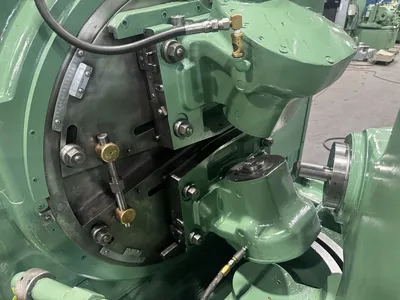

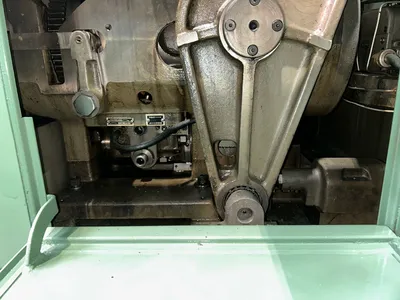

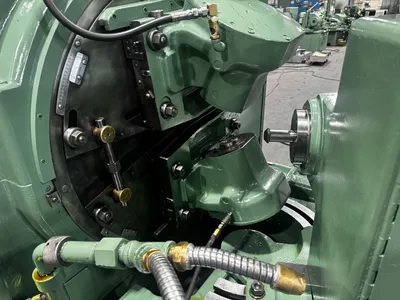

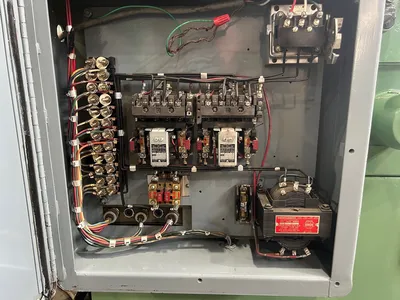

The Gleason Model 104 Straight Bevel "Coniflex" Gear Generator is an industrial machine tool designed to produce high-precision straight bevel gears and pinions. It is renowned for manufacturing gears with localized, crowned tooth profiles (Coniflex), which prevent stress concentrations at the edges of the teeth and allow for smoother, more forgiving meshing.
| Type | Straight Bevel Coniflex Generator | Straight Bevel Coniflex Generator |
| Maximum Workpiece Diameter | 9.82" | 249.43 mm |
| Maximum Face Width | 1.375" | 34.925 mm |
| Diametral Pitch | 0 | 0 |
| Maximum Cone Distance | 4.5" | 114.3 mm |
| Extreme Ratio | 10 | 10 |
| Number of Teeth | 0 | 0 |
| Control Manufacturer | Conventional | Conventional |
| Dimensions | 87" x 67" x 68" | 87" x 67" x 68" |
| Weight | 14,500# | 14,500# |
Specifications:
Cone Distance: 0 to 4-1/2"
Pitch Angle: 84 deg. 18 min. (max); 5 deg. 42 min. (min)
Extreme Ratio: 10-to-1
Pitch Diameter: 10-to-1 ratio; 8-1/2" (max)
Pitch Diameter: 1-to-1 ratio; 6" (max)
Diametral Pitch (coarsest): 3 DP
Diametral Pitch (finest): 20 DP
Face Width: 1-3/8" (max)
Index Range: 9 to 93 inclusive, and most numbers up to 175
Pressure Angles: 20, 22-1/2 & 25 deg.
Diameter of Taper Hole at Large : 3-29/32"
Taper per Foot: 39/64"
Depth of Taper: 6"
Diameter of Hole Through: 2-7/16"
Spindle Nose to Machine Center: 1-1/2" to 9"
Cutter Speeds: 98 to 286 (feet per minute)
Feeds: 4.2 to 69.2 (seconds per tooth)
Main Motor: 5 HP - 480V - 1800 RPM - 60 Hz - 3 PH
Hydraulic Pump Motor: 3/4 HP, 1800 RPM
Cutting Oil Pump Motor: 1/2 HP, 3600 RPM
Floor Space: 61-1/4" x 84-3/4"
Net Weight: 14,500#
Coniflex

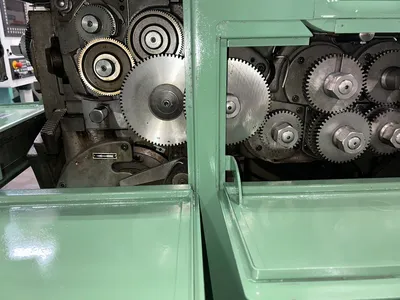

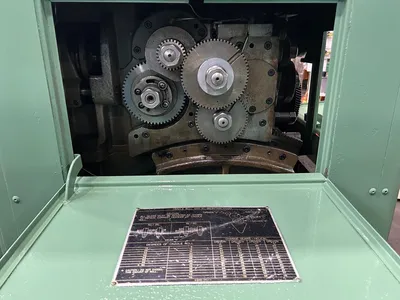

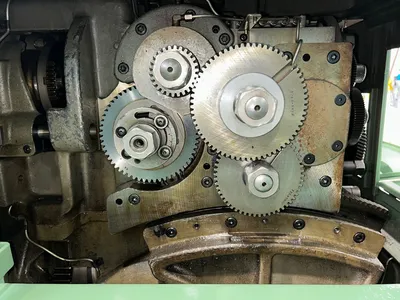

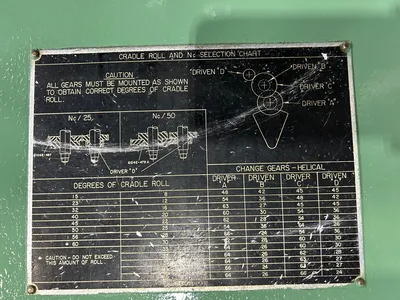

Change Gears
Cutter Adapters
Cutters
Coolant Pump
Hydraulic Chucking
Hydraulic System
Lube System
Work Holding
Gages
