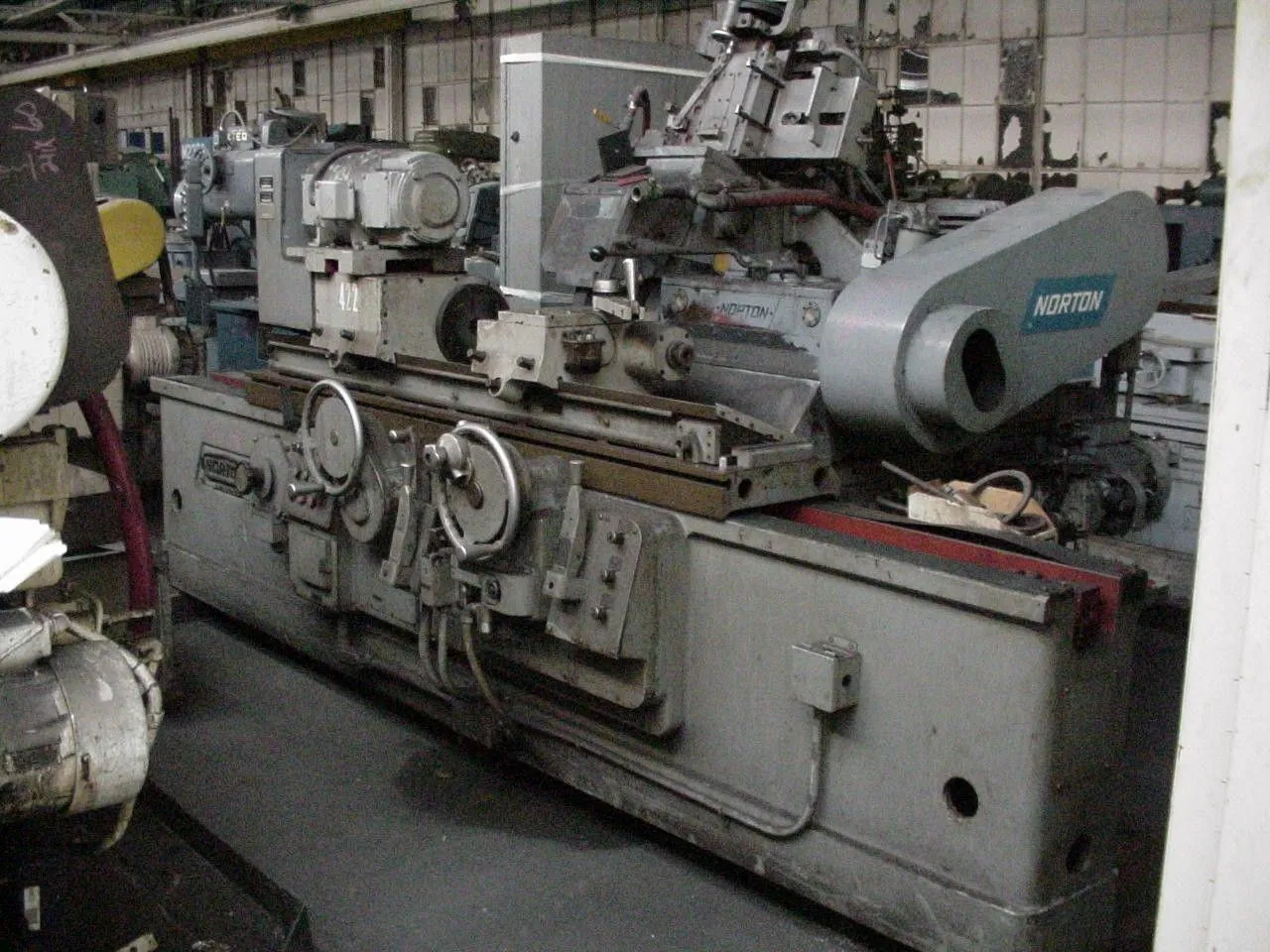

USED 1969 NORTON C5 10 x 48

NORTON C5 10 x 48 cylindrical grinder available. Built in 1969, this used model offers a 10" swing, 48" centers, and a 30" wheel diameter. Features include 20 wheel power, 1750 speed, plunge, and dresser. Ideal for precision grinding tasks.

10" x 48" NORTON C5 PLAIN CYLINDRICAL GRINDER

S/N 28674 Year: 1969

STANDARD CATALOG SPECIFICATIONS
Nominal lengths.................................... 48"
Nominal swing...................................... 10"
Maximum diameter work ground with 30" wheel........ 10"
Wheel and work center distances - maximum.......... 21"
- minimum.......... 8 1/4"
Coolant tank capacity, U.S. gallons................ 75
Coolant pump capacity, gallons per minute.......... 21
Hydraulic oil reservoir capacity U.S. gallons...... 38
Lubricating oil reservoir capacity U.S. gallons.... 3 1/2"
Steady rest, maximum work diameter accommodated.... 4 5/8"
Swivel table adjustment (in/per/ft/on dia.)
Machine length..................................... 48"
Maximum taper...................................... 48"
Maximum taper (degrees)............................ 4 3/4"

HEAD STOCK
Spindle diameter................................... 4 1/8"
Center diameter.................................... 1 3/4"
Center taper....................................... No. 14 Jarno
Work speed, AC motor......................... 50, 80, 125, 200 RPM

FOOT STOCK
Spindle diameter................................... 2 3/4"
Center diameter.................................... 1 3/4"
Center taper....................................... No. 14 Jarno

BASE WAYS
Width flat way................................. 2 1/2"
Width of v way, projected...................... 2 1/2"
Lubrication.................................... Automatic pressure

WHEEL SLIDE
Length of bearing ways......................... 37 3/8"
Width of flat way.............................. 5 5/8"
Width of v way, projected...................... 4 11/32"
Lubrication.................................... Automatic pressure
Automatic taped advance stroke, max............ 4"

WHEEL SPINDLE
Wheel spindle....................... 20 HP 230/460V 1750 R.P.M.
Material............................ Heat treated alloy steel
Large bearing (LH).................. 3 1/2" x 8 5/16"
Small bearing (RH).................. 3 1/4" x 7 1/8"
Number of speeds.................... 3
Diameter of sheaves................. 14 1/8" 11 15/16" 9 9/16"
Lubrication......................... Automatic flood
Reciprocation (when supplied)....... 0" 3/8"

TABLE SPEEDS
Range of speed IMP............................. 2" 240"
Number of speeds............................... Infinite

SHIPPING SPECIFICATIONS
Approximate weight............................. 11,500 lbs.
Floor space.................................... 124" x 150"

EQUIPPED WITH
Head stock (dead center).
Tail stock (lever operated) with dresser.
Automatic plunge cycle.
Hand and hydraulic table traverse.
30" Diameter x 4" wide wheel capacity.
Coolant.
Electrics and controls.
Automatic wheel balancer.
Vari speed work head.
Above wheel auto truing with compensation.
Spark out timer.
L & R Dwell and timer.
Oscillating spindle.
