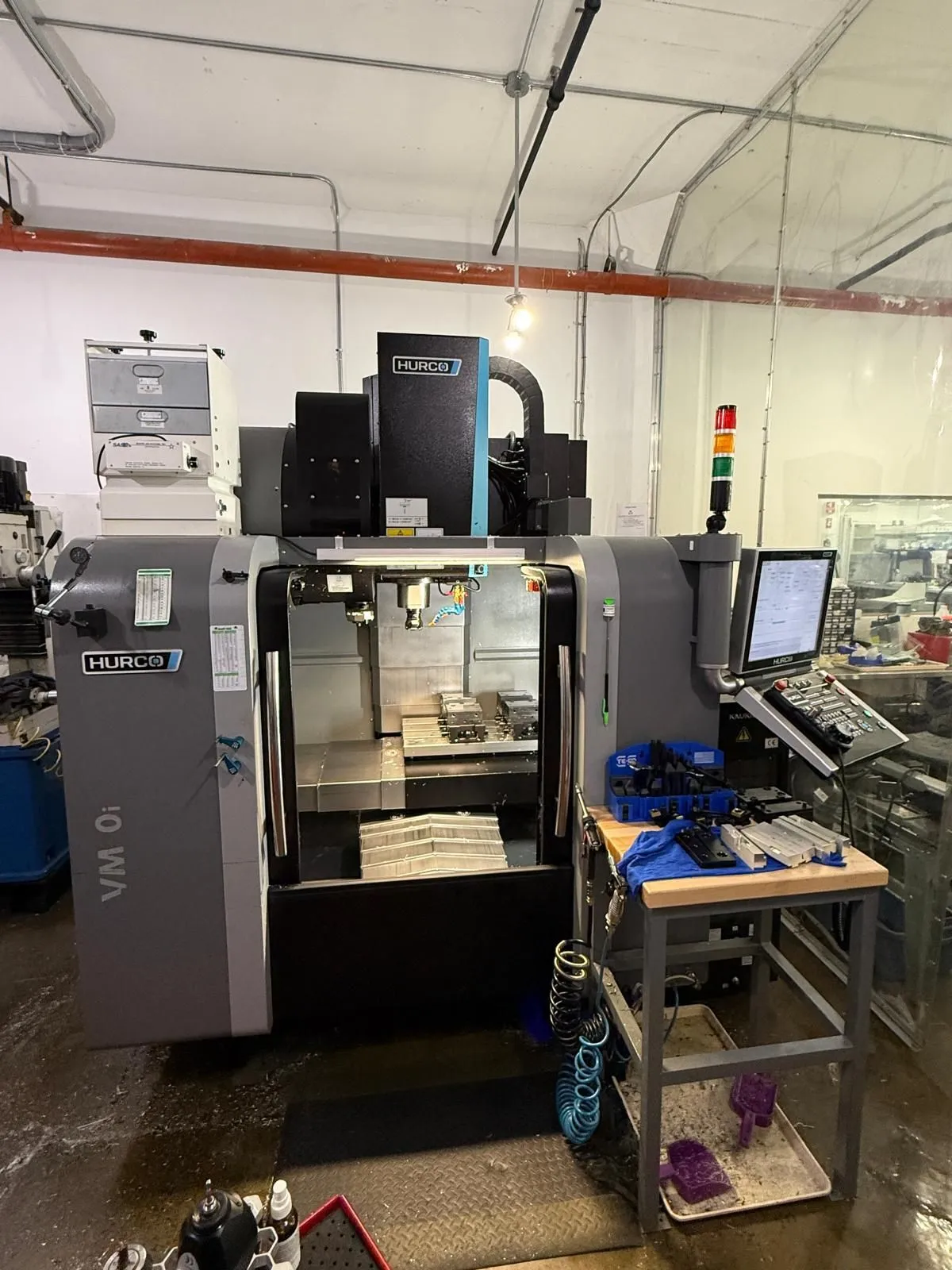

USED 2022 HURCO VM10I

2022 HURCO VM10i PLUS VERTICAL MACHINING CENTER

Manufacturer: Hurco Companies Inc.
Model: VM10i (VM10i Plus Package)
Machine Type: Vertical Machining Center (VMC)
Control: Hurco WinMax 5 CNC with Ultimotion

POWER: 230v, 60hz, 3ph

Hour Meter Readings (HH:MM)
Machine Hours: 1,508:13
Spindle Hours: 374:55

Spindle
Max Spindle Speed: 12,000 RPM
Spindle Motor Power: 15 HP
Spindle Taper: CAT 40 Big Plus
Coolant Thru Spindle: Non-coolant-thru

Travel
X-Axis Travel: 26 in (660 mm)
Y-Axis Travel: 16 in (406 mm)
Z-Axis Travel: 20 in (508 mm)
Table Size: 30 in × 16 in
Max Table Load: 1,200 lb

Tool Changer
Automatic Tool Changer (ATC): 24 Position
Retention Knob Kits Included: Two (2) kits (2 × 16 pcs.)
2 vices included

Tooling/Accessories Included
Face Mill Cutter Assembly (MariTool)
CAT40 Face Mill Holder – Dual Contact (MariTool CAT40 FMA1.0-1.5D)
Renishaw CNC Touch Probe
Digital 3D-Taster / Edge Finder Probe
CAT40 ER Collet Chuck Holder (Schunk)
Solid Carbide End Mill
Precision Milling Vise (Compact Machine Vise)
Round 360° Rotary Fixture / Indexing Base (Angle Positioning Plate)
Pro-Set Edge Technology Setup Tool (Workpiece Stop / Edge Setting Arm)
ER Collet Set (Multiple Sizes)
ER Collet Storage Blocks / Organizers
Collet Chuck Extensions / Collet Holders (Loose)
Assorted Precision Setup Clamps & Workholding Hardware
Step Clamp Workholding Kit (T-Slot Clamp Set)
Assorted Step Blocks & Clamping Supports
T-Nuts, Studs, Flange Nuts & Strap Clamps (Clamp Hardware Set)
Precision Parallels / Setup Bars (Aluminum Parallels)
Vise Jaw Plates / Soft Jaws (Machinable Aluminum Jaw Blanks)
Additional Workholding Fixture Plates / Mounting Blocks

CNC Control & Software
Control System: WinMax 5 CNC
Motion System: Ultimotion
UltiPocket w/ Helical Ramp Entry & Insert Pockets
Enhanced DXF Transfer
Tool & Material Library
NC / Conversational Merge
WinMax Desktop Software Package for Mill

Weight: 6,300 lbs
Dimensions: 100'' x 95'' x 96''
