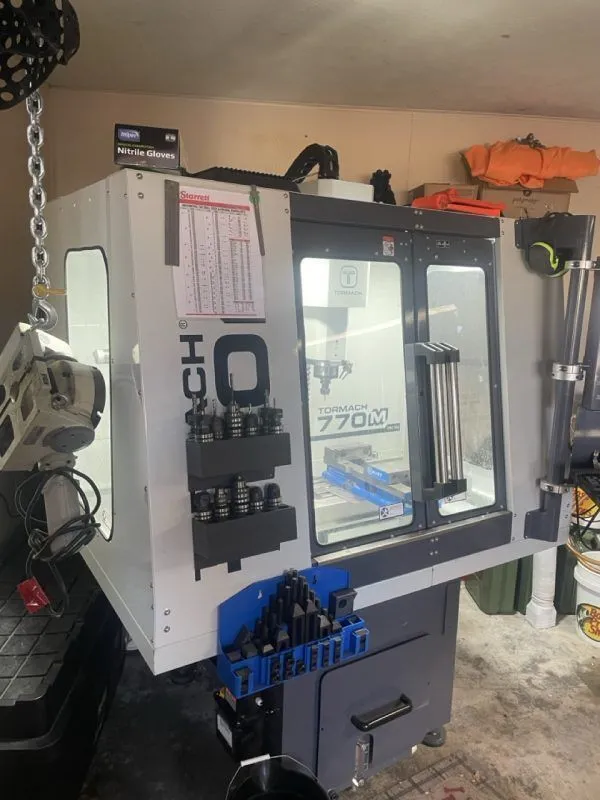

Tormach 770M Vertical Machining Center, New in 2022
| X-Axis | 14" | 355.6 mm |
| Y-Axis | 7.5" | 190.5 mm |
| Z-Axis | 13.25" | 336.55 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| Taper | R8 | R8 |
| Table-W | 8" | 203.2 mm |
| Table-L | 26" | 660.4 mm |
| # Axis | 3 | 3 |
| Dimensions | 56″ x 48.5″ x 88″ | 56″ x 48.5″ x 88″ |
| Weight | 950 lbs | 950 lbs |
General Specifications:
X-Axis Travel: 14″
Y-Axis Travel: 7.5″
Z-Axis Travel: 13.25″
Spindle Power: 1.5 HP
Max. Spindle Speed: 10,000 RPM
Spindle Taper: R8
X/Y Axis Feed Rate: 135 IPM
Z Axis Feed Rate: 110 IPM
Table Size: 26″ x 8″
Max. Weight on Table: 500 lbs
Table Slots (3): 5/8″
Spindle Nose to Table: 14.25″
Spindle Centerline to Machine Column: 8.6″
Electrical: 115 V Single Phase
Machine Dimensions: 56″ x 48.5″ x 88″
Machine Weight: 950 lbs
Path Pilot Computer
4th Axis Rotary
10 Pocket Automatic Tool Changer
Tool Holders
