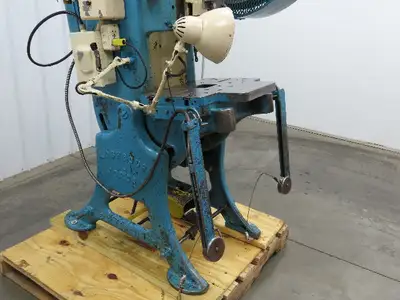

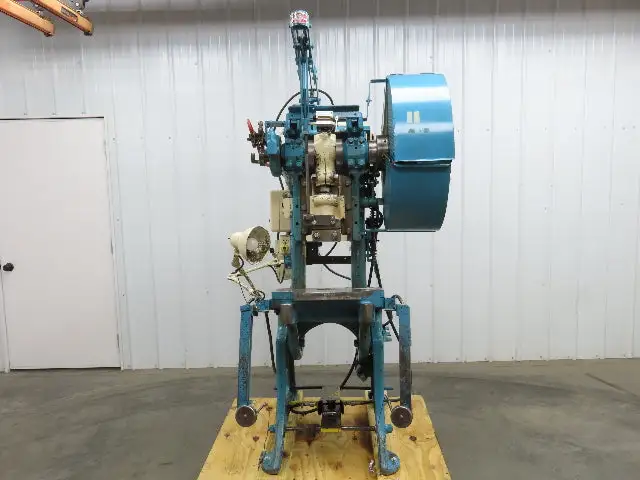

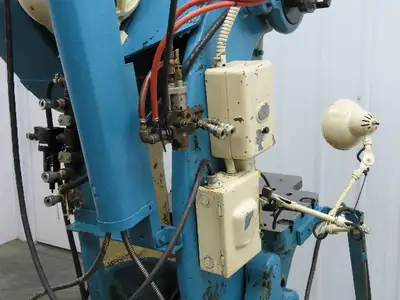

L&J No 3 Mechanical OBI Punch Press 22 Ton 2" Stroke 6-1/2" Throat 2Hp 3Ph

HP: 2
Voltage: 220/440 3 phase
Press Rating Ton: 22 This may not be correct.
Stroke (inches): 2
Ram Open Height w/adjustment up (Inches): 10-3/4
Ram Shut Height w/Adjustment up (Inches): 8-3/4
Ram Adjustment Length (Inches): 3

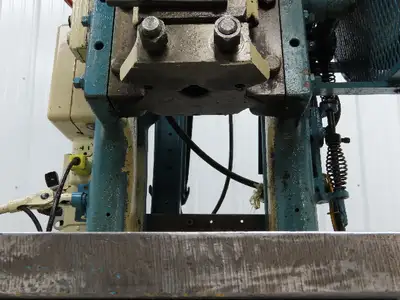

Ram Die Shank Size (Inches): 1-1/4
Ram Die Shank Length (Inches): 3-3/8
Ram Bolt Distance (Center to Center) (Inches): 3-1/2
Throat Opening (Frame to Center of Ram) (Inches): 6-1/2
Bed Size (Inches): 12-1/2x21-1/4
Bed Opening (Inches): 8x9-1/4
Used, in Good Working Condition, Tested OK.
Tested in our shop.
Wired for 208V 3 phase

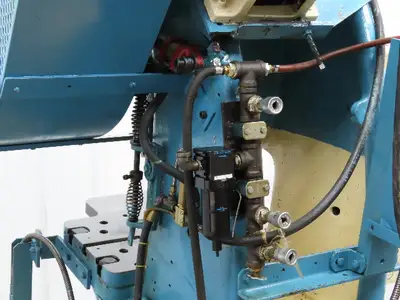

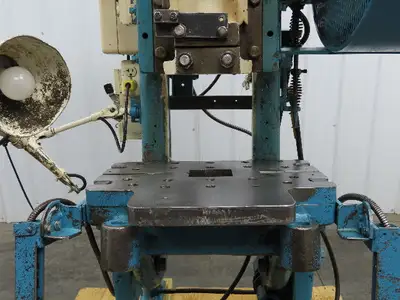

Has aftermarket plate 1-5/8" thick with T slot. Center hole is 4-3/4"x4-1/2".

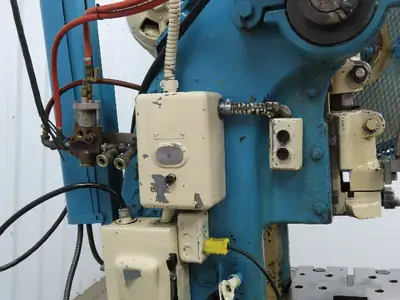

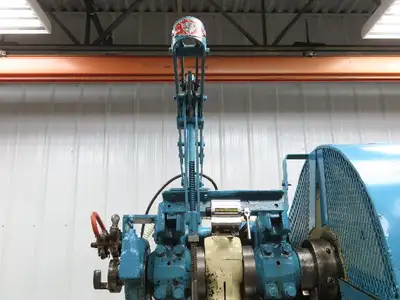

Has Safeguard safety controls. Pulls operator's hands out of the way.
We are not sure on the tonnage. A No 2 is 18 ton and a No 3-1/2 is 27 ton.
