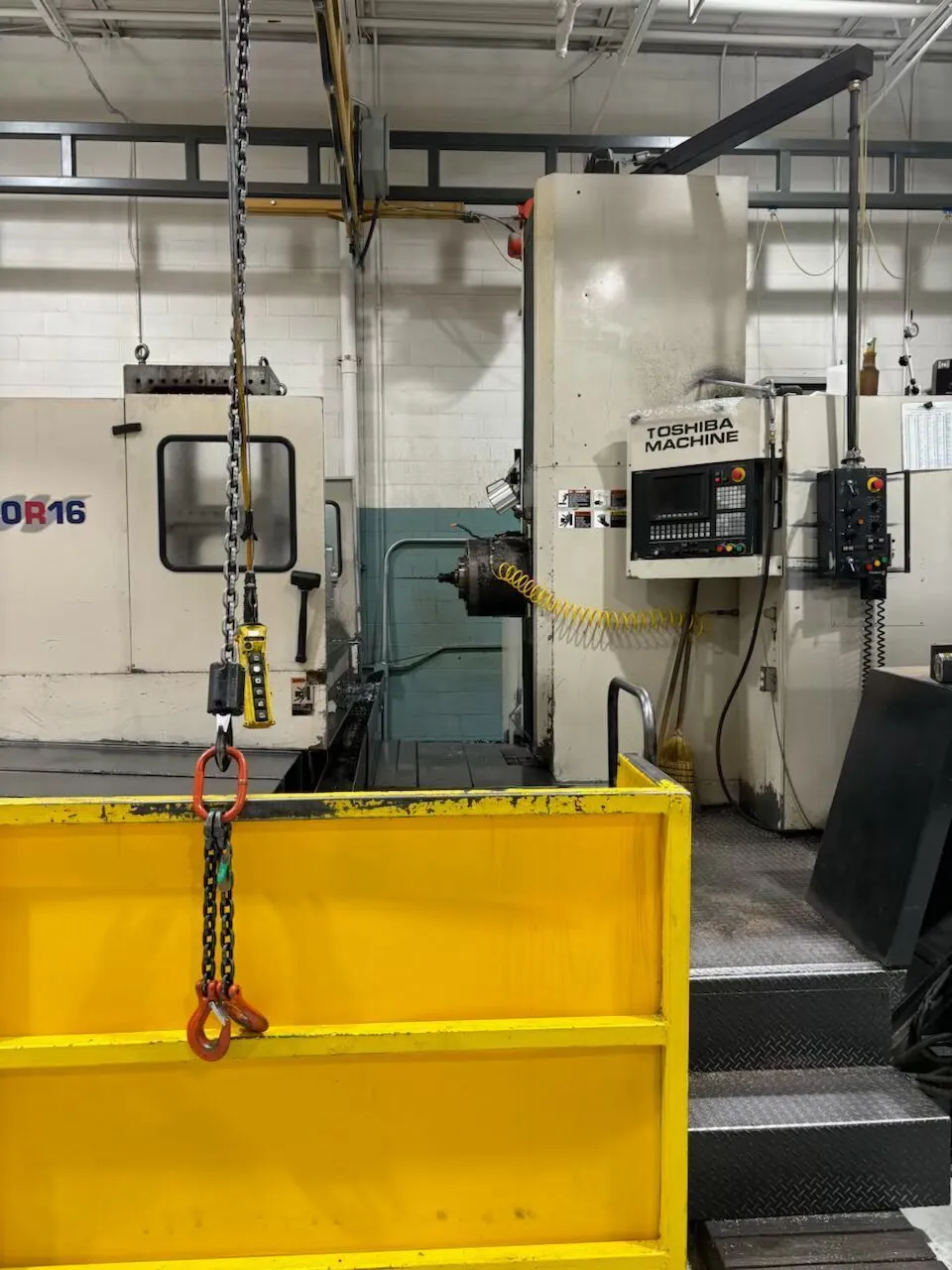

USED 1998 TOSHIBA BTD-110R16
Overview
Specifications
| Spindle Size | 4.3" | 109.22 mm |
|---|---|---|
| X Axis - Table Travel | 78.7" | 1,999 mm |
| Y Axis - Vertical Head Travel | 59" | 1,498.6 mm |
| Z Axis - Spindle Travel | 19.7" | 500.38 mm |
| W Axis - Quill Travel | 19.6" | 497.84 mm |
| B Axis - Table Rotation | 0.0001° | 0.0001° |
| Table Dimensions | 55" x 65" | 55" x 65" |
| Power | 40 hp | 29.8 kW |
| RPM | 3,000 RPM | 3,000 RPM |
| Max Table Load | 13,860 lb | 6,286.8 kg |
| Tool Changer Capacity | 30 | 30 |
| Machine Dimensions | 202" x 242.5" | 202" x 242.5" |
Equipped With
Tosnuc 888 CNC Control
Coolant Thru Spindle
Partial Enclosures
Data Server
Shape Contouring Software
