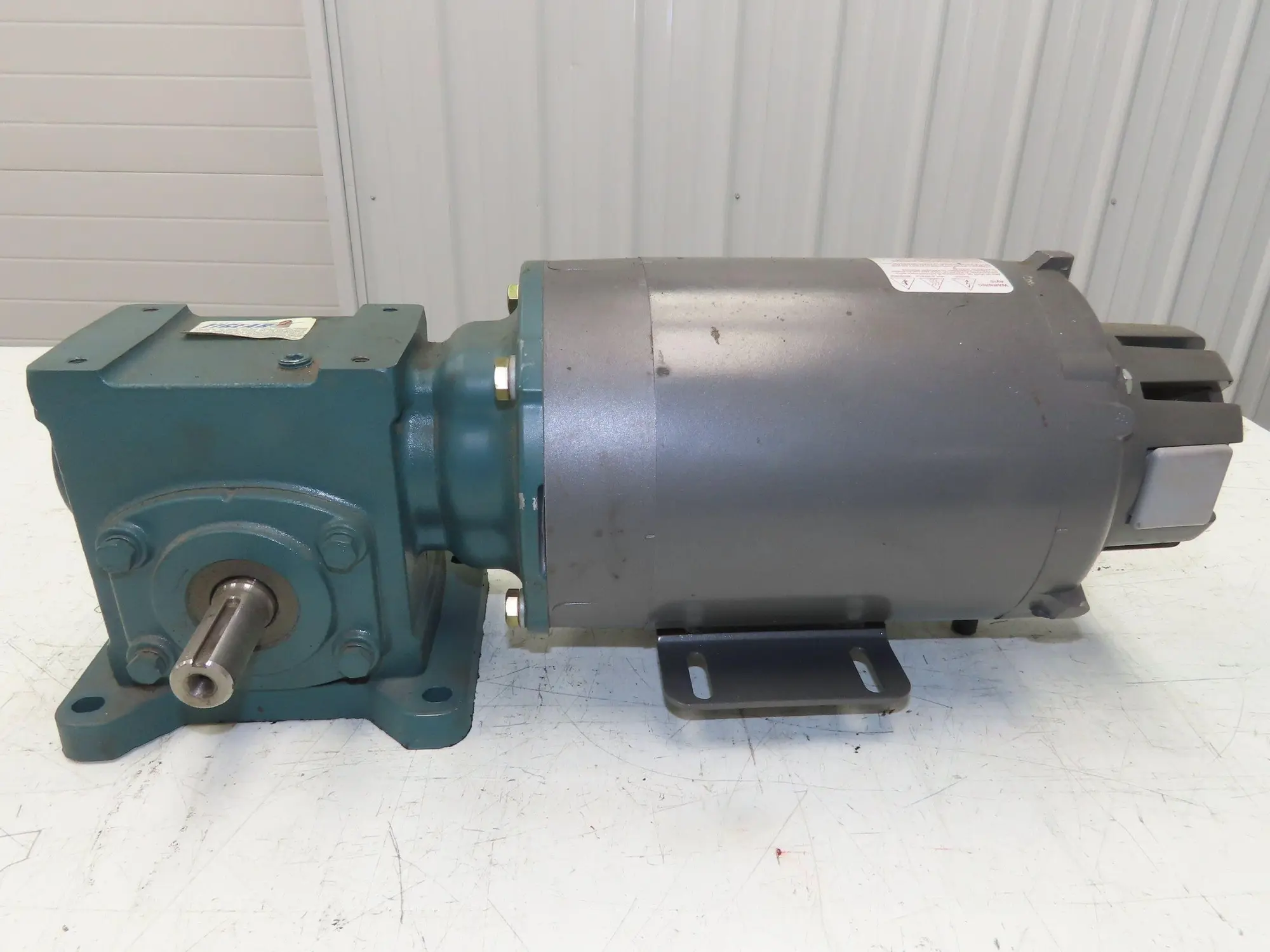

Dodge Baldor 17Q15R56 Gear Motor 15:1 Reducer 117 RPM 0.75Hp 230/460V 3PH LH 56C

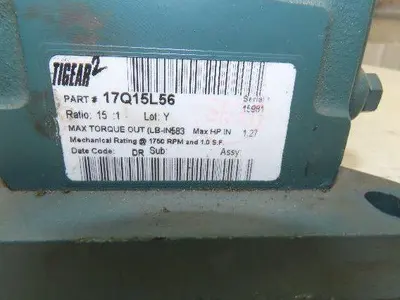

Gear Ratio: 15:1
Output Speed: 116-2/3
Shaft Diameter: 7/8"
Flange Size: 56
Output Torque: 583
Shaft Output (Left, Right or Inline): Left

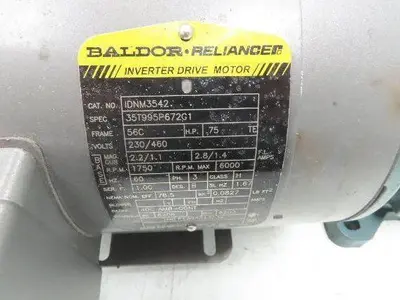

Motor Brand: Baldor
Motor Catalog Number (Model): IDNM3542
Motor HP: 3/4
Motor Phase: 3
Motor Voltage: 230/460
Motor Frequency: 60
Motor Amps: 2.2/1.1
Insulation Class: H
Used, in Good Working Condition.
Motor tested and confirmed working in our shop.
Currently wired for 460V. We can rewire it for you to 230V upon request.
