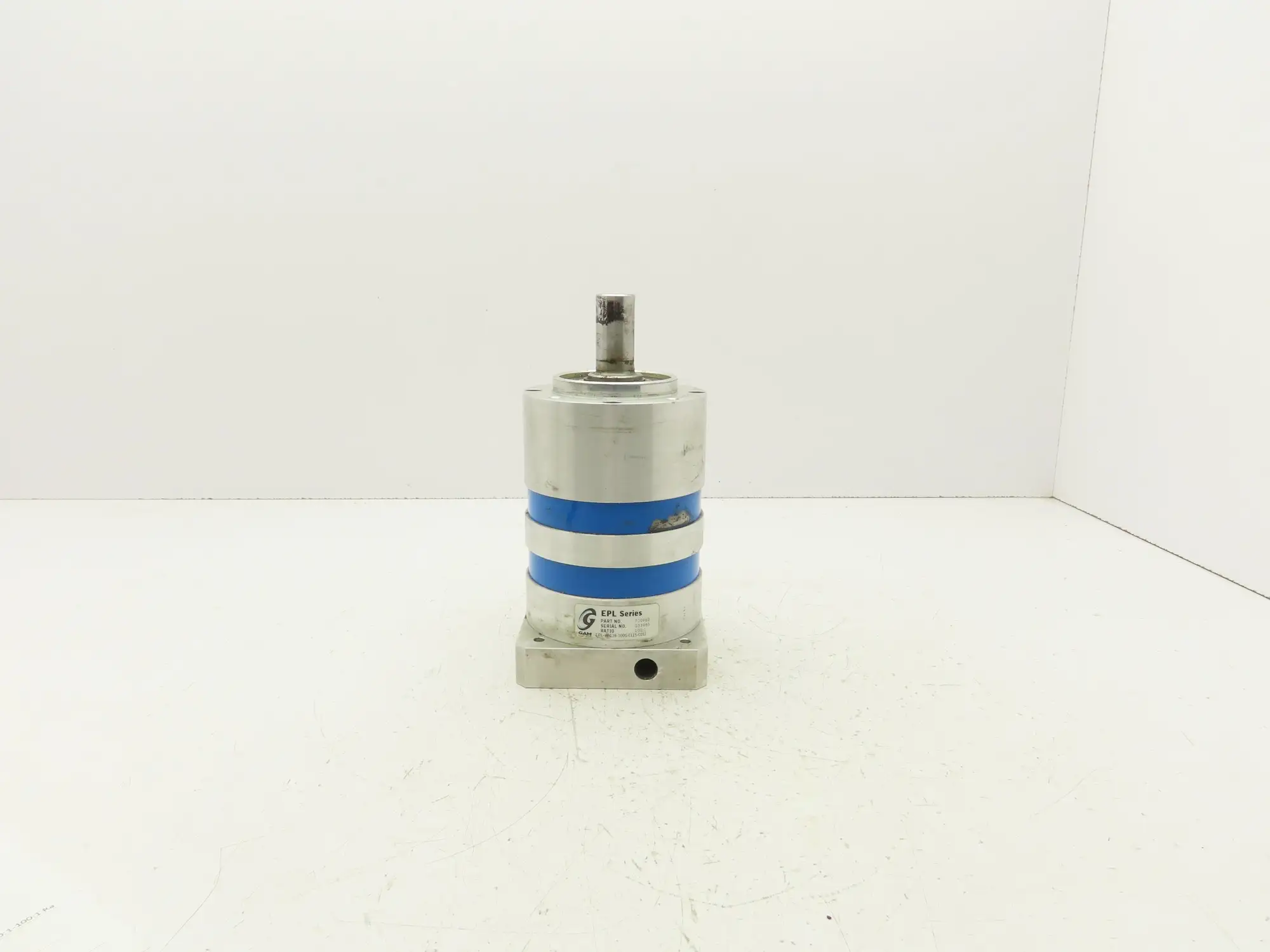

GAM EPL-W-118-100G-[115-C01] Inline Planetary Gearbox 100:1 Reducer 250 RPM

Frame Size: n/a
Ratio: 100:1
Input RPM: 2500
Input Shaft Diameter: 19mm/24mm
Vent: no
Input H.P: n/a
Output RPM: 250
Output Shaft Diameter: 25mm
Output Torque (lbs): 105Nm (929 in-lb)
Shaft Output (Left, Right or Inline): inline
Used, in Good Working Condition.
Backlash <12 arcmin
Output end mount info:
80mm flange
4x M8-1.25 threaded holes 98mm opposed
25mm shaft - 50mm long
8mm key
Input end info:
19mm shaft recess
95mm wide recess 4.5mm deep
4x M8-1.25 threaded holes
