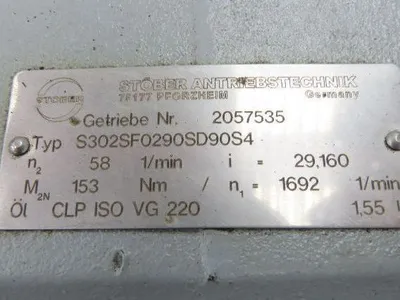

Stober S302SF0290SD90S4 Gearmotor 58 RPM 1.1Kw 277/480V 3PH Hollow Shaft 29.16:1

Gear Ratio: 29.160
Output Speed: 58 RPM

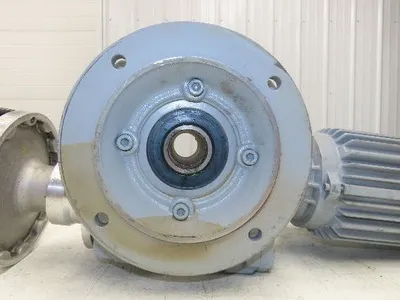

Shaft Diameter: 42mm Hollow Shaft
Output Torque: 153 Nm
Shaft Output (Left, Right or Inline): Hollow

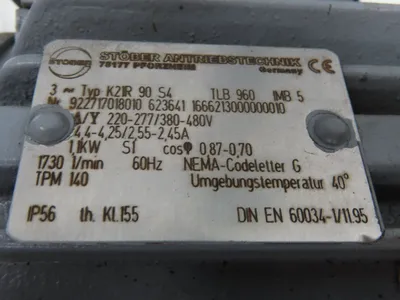

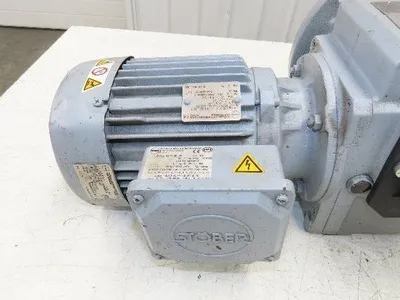

Motor Brand and Model: Stober K21R 90 S4
Motor Specs: 1.1Kw 1730 RPM 277/480V 3PH IEC 90 Metric Frame
Gearmotor is in working condition, tested @: 480V
Voltage motor is currently wired for:: 480V

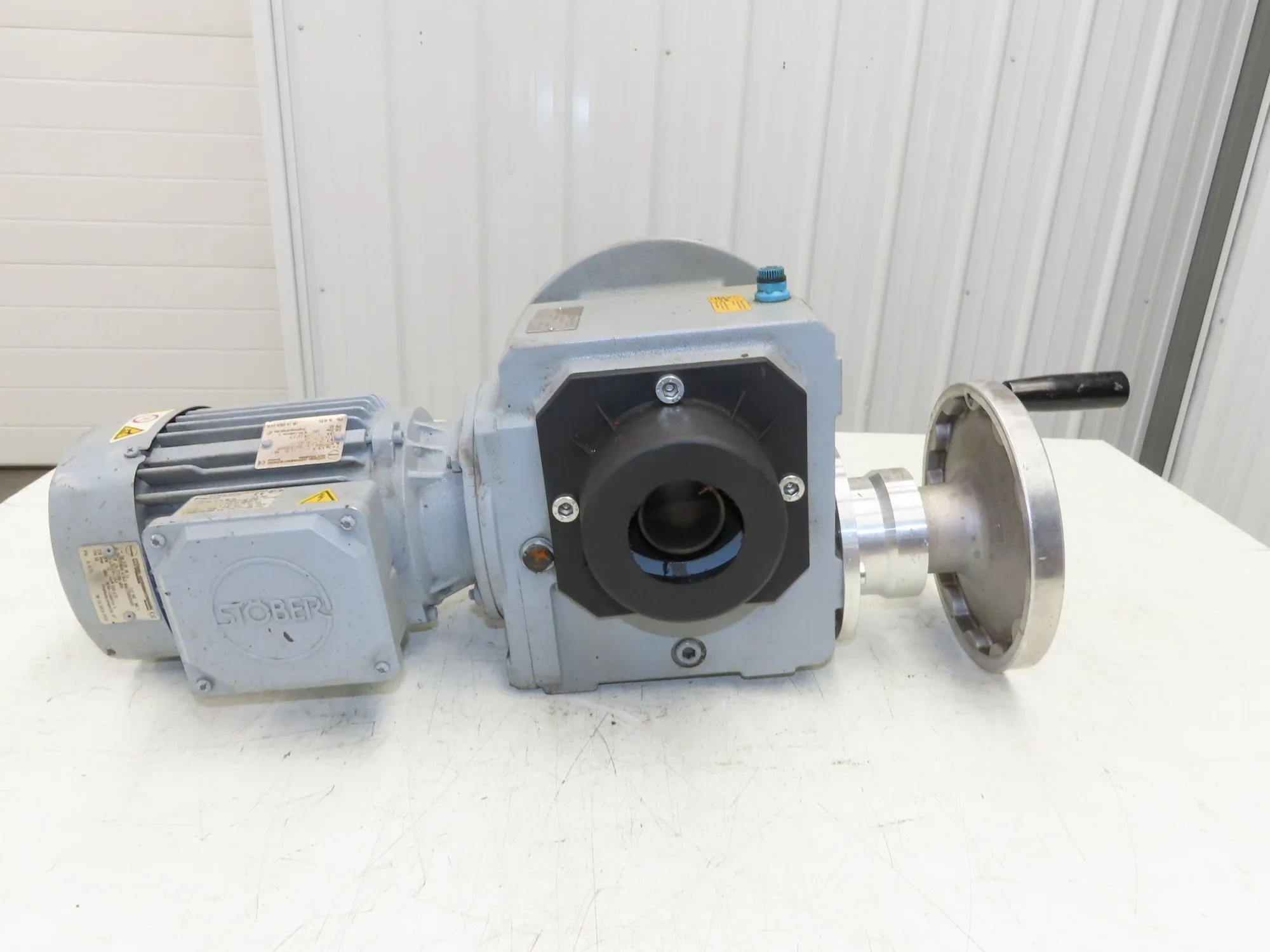

Gearbox is set up with a manual handwheel that cranks the shaft.
