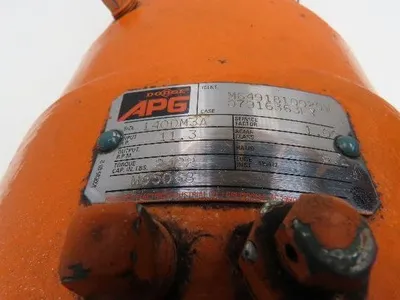

Reliance/Dodge APG 140DM3A Gearmotor 282rpm 6.2:1 Reducer 2Hp 230/460V 3PH 145TC

USD $299.24
1 available
Overview
Manufacturer:
RELIANCE DODGE APG
Stock #:
266951
Specifications

Gear Ratio: 6.2:1
Output Speed: 282 RPM
Shaft Diameter: 1-1/4"
Flange Diameter: 145TC
Output Torque (lbs-in): 2,422
Shaft Output (Left, Right or Inline): Parallel

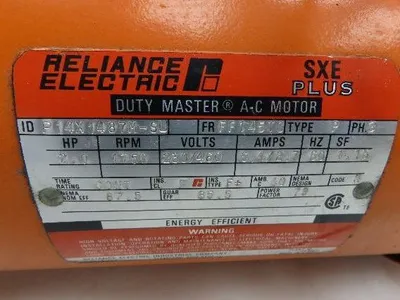

Motor Brand: Reliance
Motor Catalog Number (Model): P14X1487M-SU
Motor HP: 2
Motor Phase: 3
Motor Voltage: 230/460V
Motor Amps: 5.4/2.7
Insulation Class: F4
In Good Used Condition.  Removed from a Working Environment.  Tested @460V.
