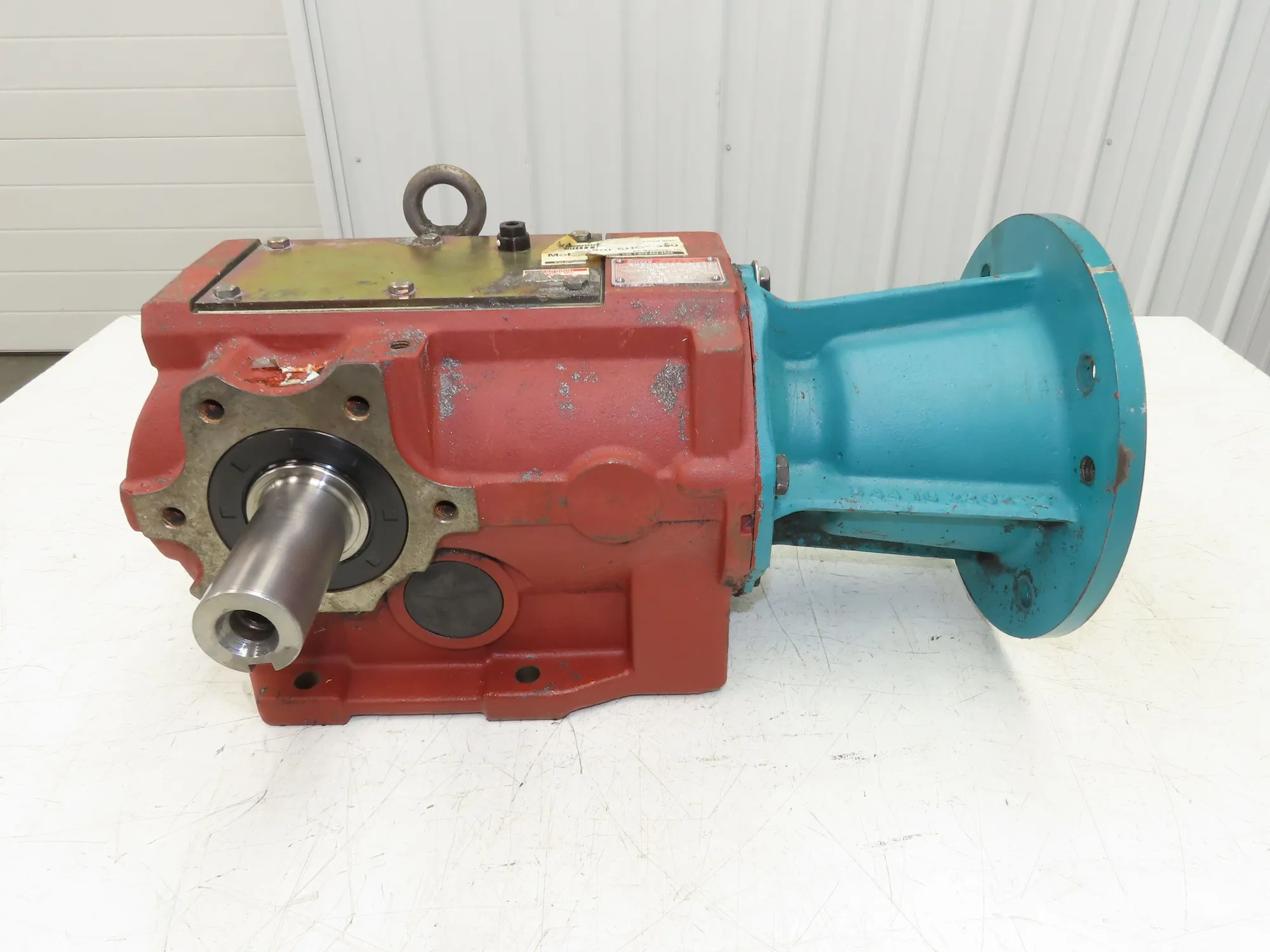

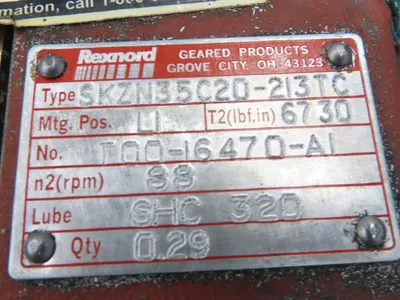

Rexnord SKZN35C20-213TC Gearbox 20:1 Reducer 88rpm 5Hp 213/215TC LH Output
USD $676.87
Overview
Specifications
Frame Size: 213/215TC (8-1/2" Motor frame OD, 7-1/4" Bolt circle)
Ratio: 20:1
Input RPM: 1750
Output RPM: 88
Input Shaft Diameter: 1-1/4" shaft, Includes coupler for 1-3/8" motor shaft
Output Shaft Diameter: 1-5/8"
Output Shaft Orientation (Left, Right, Inline): Left
Input H.P: Gearbox was removed from a 5Hp motor
Output Torque: 6730
Does gearbox include breather vent?: Yes
