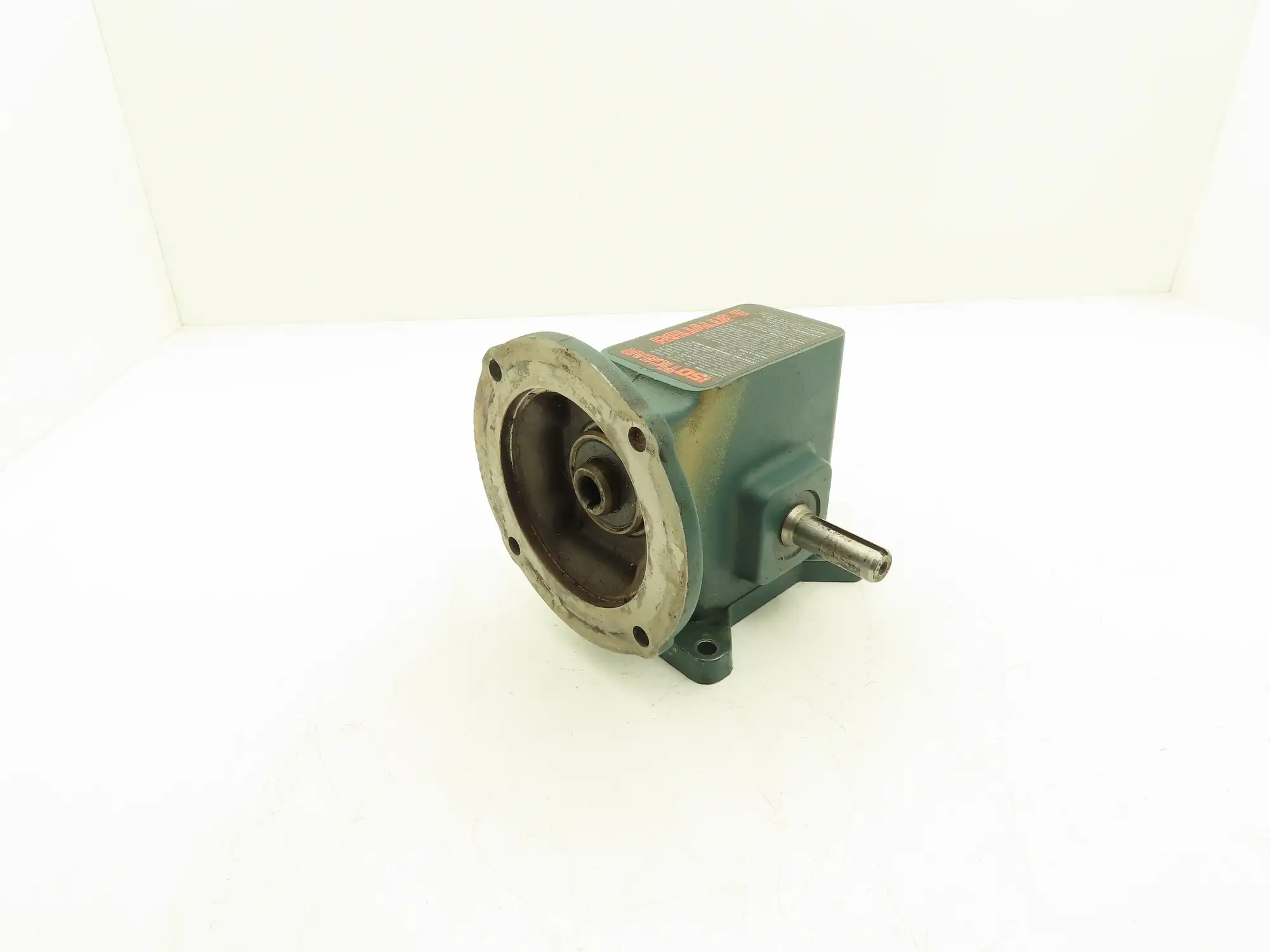

Dodge Tigear MR94744L1 Gearbox 15:1 Reducer 116 RPM .75HP RH 56C 313 in-lb
USD $135.37
Overview
Specifications
Frame Size: 56C
Ratio: 15:1
Input RPM: 1750
Input Shaft Diameter: 5/8"
Vent: yes
Input H.P: 0.75
Output RPM: 116
Output Shaft Diameter: 3/4"
Output Torque (lbs): 313 in-lbs
Shaft Output (Left, Right or Inline): Right
Used, in Good Working Condition.
Input parameters: 56 frame, 1750 RPM, 5/8" shaft, 0.75HP
Output parameters: right hand output shaft, 313 in-lbs (26 ft-lb), 116-2/3 RPM, 15:1 ratio, 3/4"x 1-7/8" shaft
Vented
