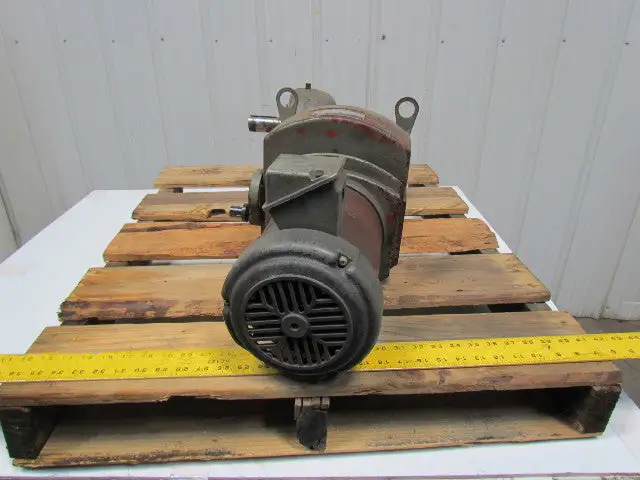

US Motors VariTrac 2Hp 230/460V 50/60Hz Manual Speed Adjust LH Output Gear Motor

USD $197.21
1 available
Overview
Manufacturer:
US Motors
Stock #:
144369
Specifications

Horse Power: 2
RPM: 1725 Input
Phase: 3
Voltage: 230/460
Amps: 6.2/3.1
Hertz: 60
Output Shaft Size: 1-1/2" Left Hand Output
Enclosure: TEFC
Service Factor: 1.15
Rating: Cont
Insulation Class: F
Amb. Temp(Degree C): 40

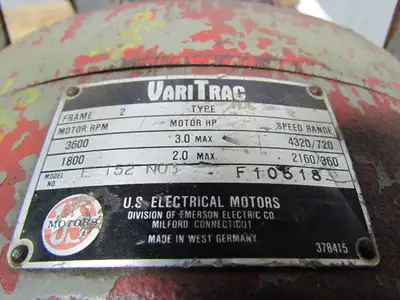

2Hp Motor With A 1725 RPM Output Into Varitrac Manual Adjustable Speed Reducer With Range Of 2160-360RPM Into A Gear Box With 30.5:1 Ratio. As Unit Sits Output Speeds Are Approx. 70.81-11.8 RPM
The Varitrac And Gear Reducer Are Rated Up To 3 Hp and 2Hp Respectively
The speed adjustment hand wheel is missing
