USED ASQUITH MDB 300

Asquith MDB-300 393" x 157" Gantry Type Machining Center

Asquith MDB-300 393" x 157" Gantry Type Machining Center
Table Size 400" X 160"
(X) Travel: 393"
(Y) Travel: 157"
(Z) Quill Travel: 50"
Spindle Speeds: 4000 Rpm
Spindle Drive: 100 Hp
Spindle Taper: #50
Spindle Quill Diameter: 11"
Maximum Rail Bottom To Table: 60"
Current Electrical Arrangement: 440 3/60
Scales: X,Y,Z Axes

Delta Dynapath CNC Control

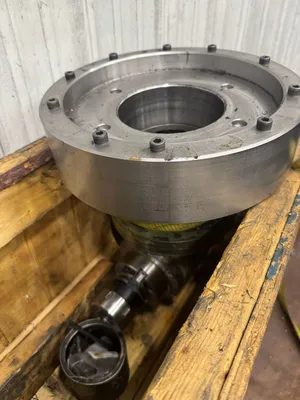

Right Angle Milling Head
Coolant Through Spindle
Baldor Servo Drives
Siemens Spindle Drive
Dual Chip Conveyors
