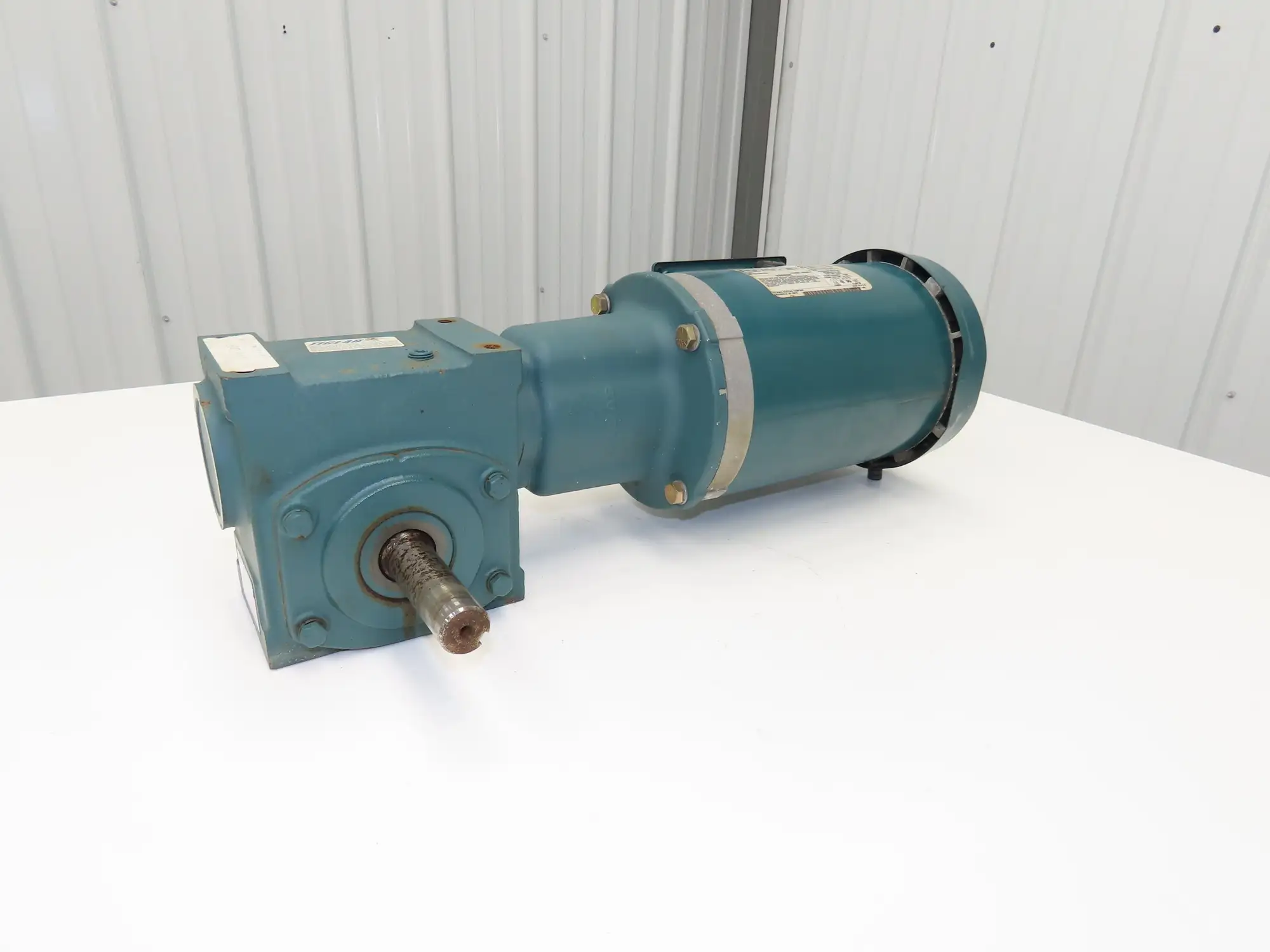

Reliance P14G9256H Gearmotor 12:1 Tigear Reducer 144rpm 1Hp 230/460V 143TC LH
USD $189.99
Overview
Specifications
Gear Ratio: 12:1
Output Speed: 144
Shaft Diameter: 1" Dia x 3-1/4" Length
Flange Size: 143/145TC
Output Torque: 770 In-Lb
Output Shaft Orientation: Left

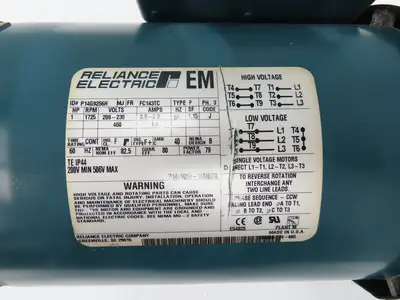

Motor Brand and Model: Reliance P14G9256H
Motor Specs: 1Hp 1725 RPM 208-230/460V 3PH 143TC
Voltage tested at and wired for:: 460V
Gearbox Brand and Model: Dodge Tigear 2 20A12L14SL302
In good used condition, tested.
