Hydraulic Lift Table 10000lb 5 Ton 102" Travel 78x48" 3Ph 5Hp Leeson Mobile
Overview
Specs
Table Type: Scissor
Load Capacity (lbs): 10000
Table Length: 102
Table Width: 48
Table Maximum Height: 108
Table Minimum Height: 17"
Table Power Source: Electric Over Hydraulic
Motor HP: 5
Volts: 230/460
Phase: 3
Control Type: Pendent with 4' cord
Used, in Good Working Condition. Tested.
We have no specs on this unit. We do know it lifts 10000 lbs.
Lift speed 1 min 48 seconds.
Wired for 480V.
Mobile unit. To be pulled around.
We load tested at 10000 lbs.

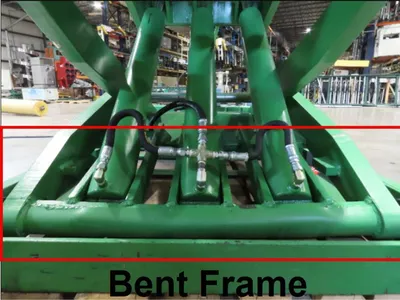

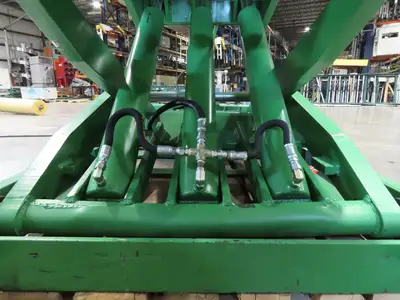

Triple cylinder. Frame is bent where cylinder connects to the lower frame.

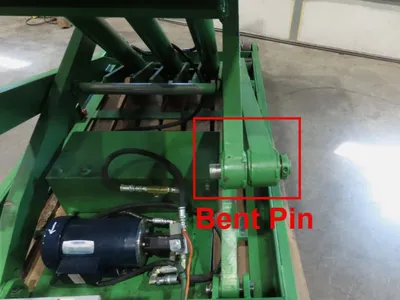

One pin housing is bent. Should be addressed if it is for heavy use.
