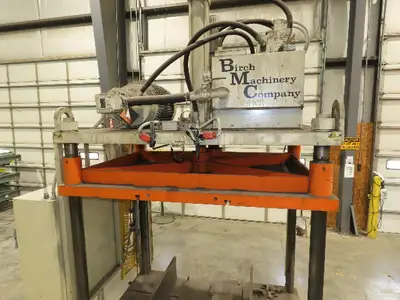

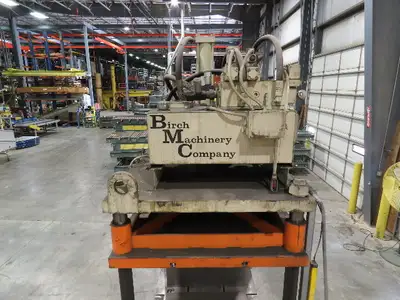

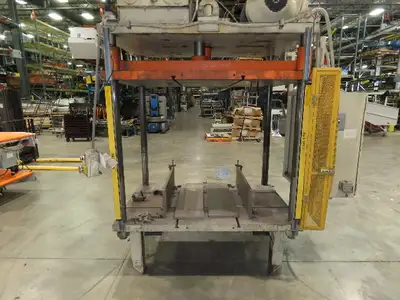

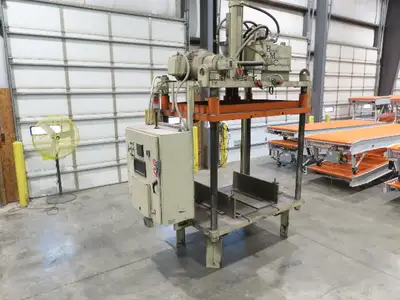

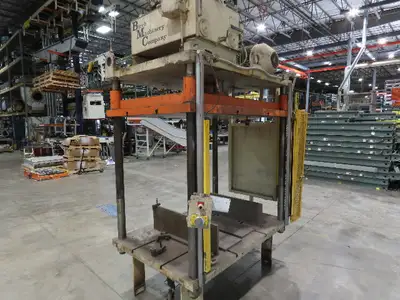

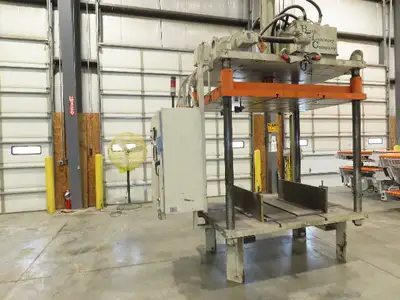

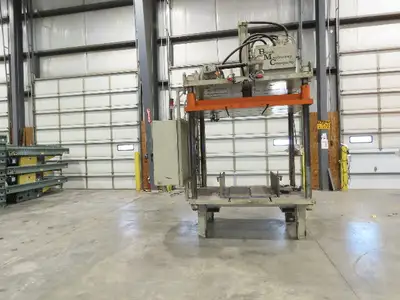

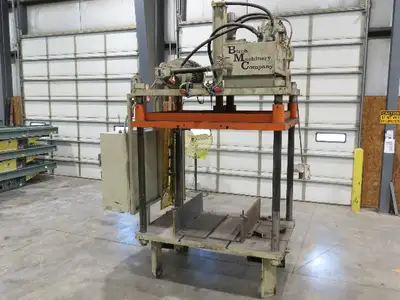

Birch 20 Ton 4-Post Vertical Hydraulic Die Casting Trim Press 25Hp 460V

USD $12,159.99
1 available
Overview
Stock #:
248483
Specifications

Trim press in good working condition.  Tested in our shop.
Mfg Date:  2006.  689 Hrs on hourmeter.
20-ton capacity.
36" stroke length.
Distance Between Tie Bar Posts: 64" x 41"

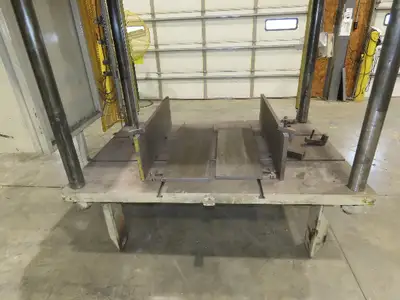

Table Dimensions: 74" x 50"
Table Height: 25-1/2"
Max Height Under Press Plate: 55"
Post Size: 3-1/2" Dia.
Cylinder Size:  5" Bore x 36" Stroke.

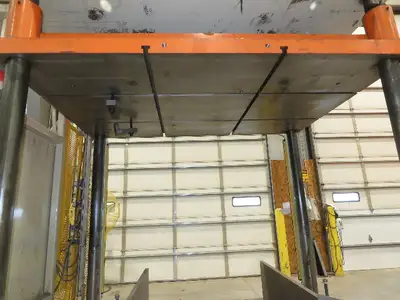

Press plate and table thickness is 2-7/8"

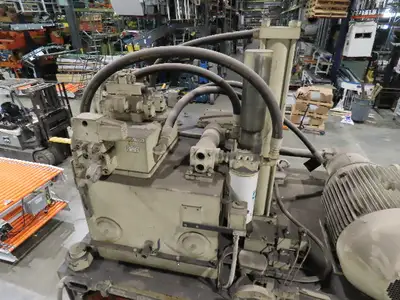

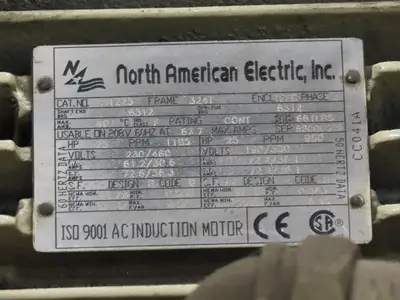

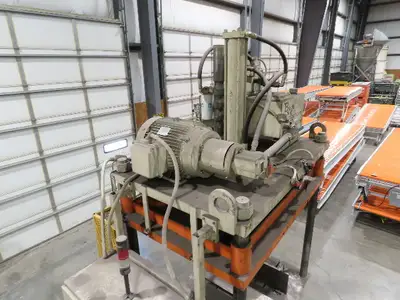

Power Unit Motor:  25Hp 230/460V 3PH. With Vickers pump 35V30A-1C22R.

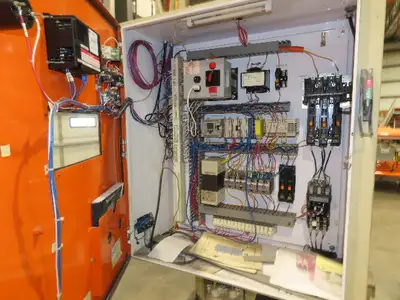

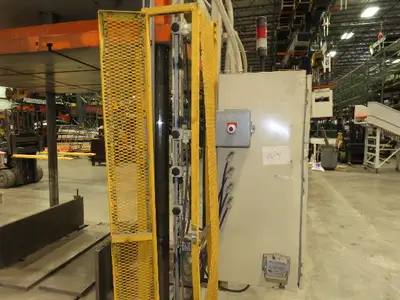

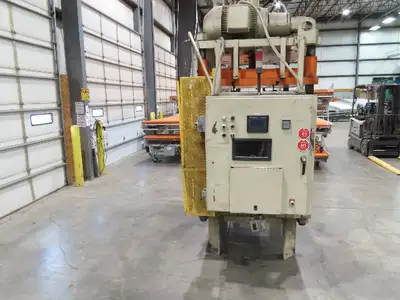

Press is set up with 4 limit switch stops.  Panelview 550 touchscreen control panel.
Overall Dimensions: 102"L x 60"D x 141" Clearance Height.
Approximate weight:  9000 - 10,000 Lbs,
