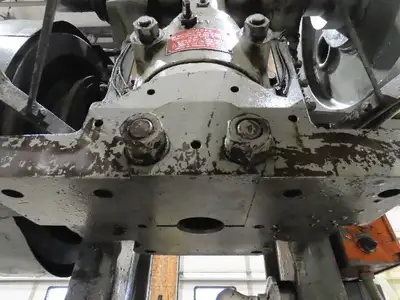

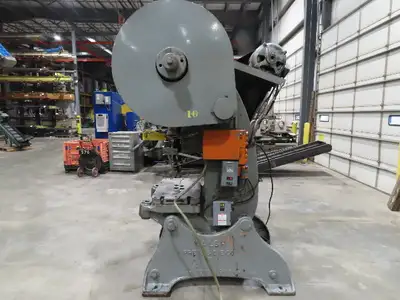

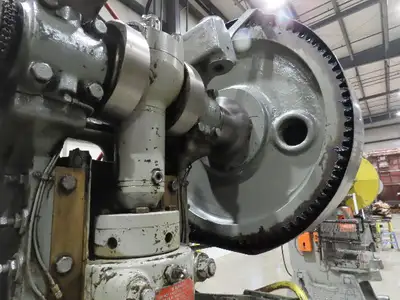

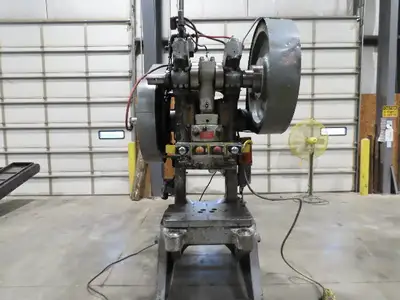

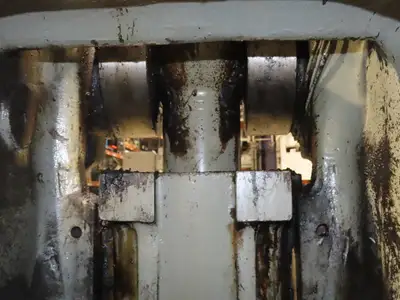

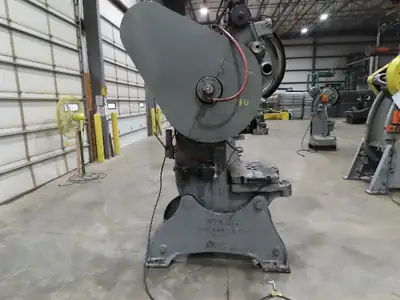

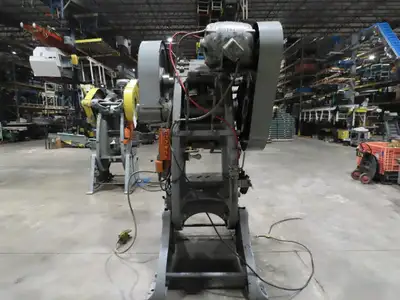

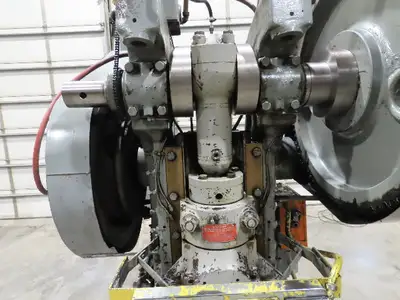

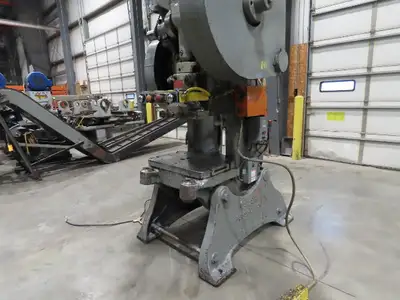

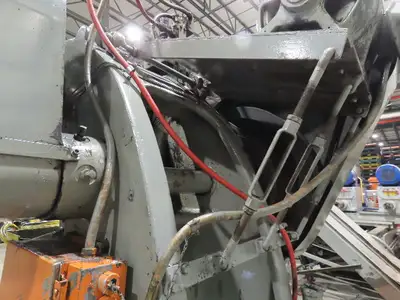

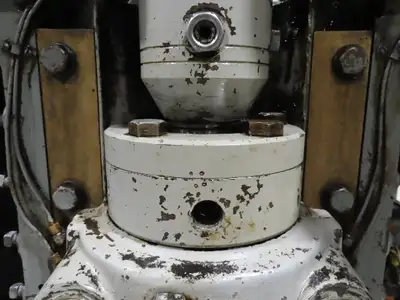

Walsh No 65 Ton Geared Mechanical Punch Press 6" Stroke 10" Throat 7.5Hp 3Ph

HP: 7.5
Voltage: 220/440V Wired for 220
Press Rating Ton: 65
Stroke (inches): 6
Ram Open Height w/adjustment up (Inches): 18
Ram Shut Height w/Adjustment up (Inches): 12
Ram Adjustment Length (Inches): 3
Ram Die Shank Size (Inches): 2-1/2
Ram Die Shank Length (Inches): 6
Ram Bolt Distance (Center to Center) (Inches): 10-3/4" and 8-1/2"
Throat Opening (Frame to Center of Ram) (Inches): 10

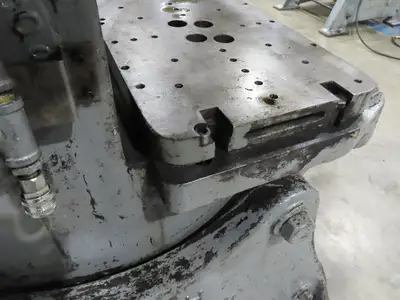

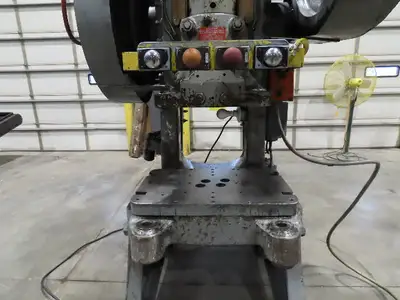

Bed Size (Inches): 18x32" Has a 2-1/4"plate 29x18-1/2
Bed Opening (Inches): 14-1/8 x15"
Used, in Good Working Condition, Tested OK.

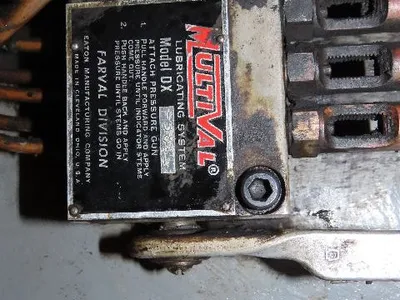

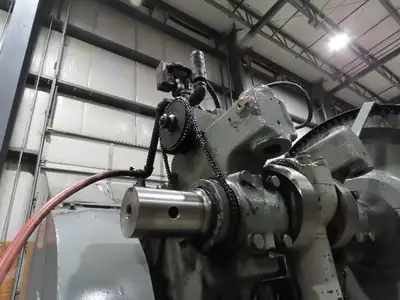

Central oiler.

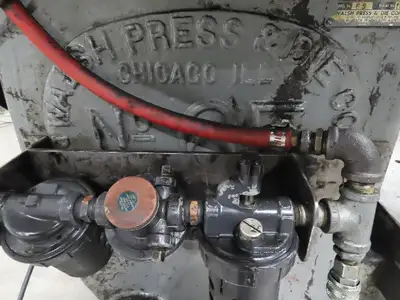

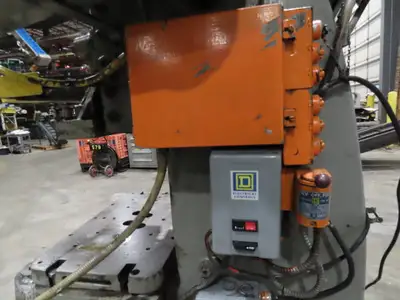

Air clutch. Controls can be hand or foot. Motor can be reversed.
We got it to inch. We did not mess with the control much.
Unit would not have to make a full cycle. Could be inched and then reversed.
Wired for 220V 3Ph.
