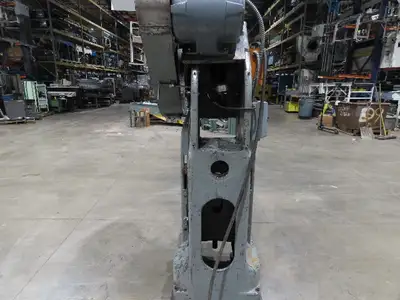

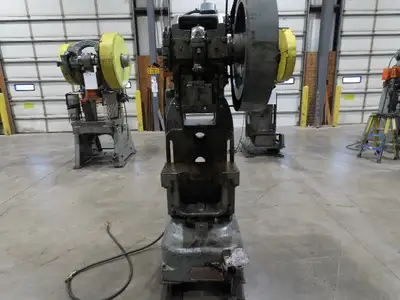

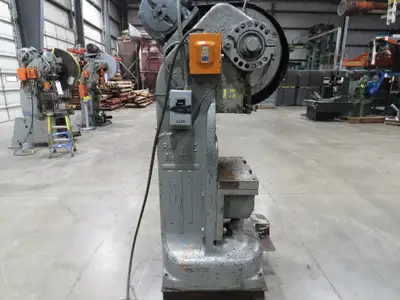

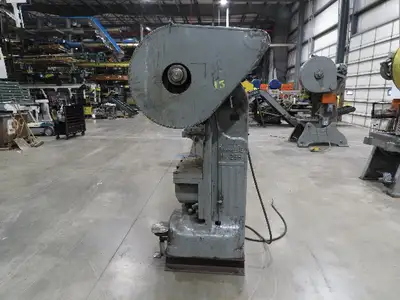

Rousselle No 25H Ton Mechanical Horn Punch Press 2" Stroke 6.5" Throat 3 Hp 3Ph

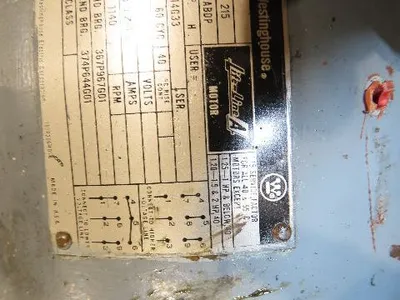

HP: 3
Voltage: 220/440 Wired for 220
Press Rating Ton: 25
Stroke (inches): 2
Ram Open Height w/adjustment up (Inches): 17
Ram Shut Height w/Adjustment up (Inches): 15
Ram Adjustment Length (Inches): 2
Ram Die Shank Size (Inches): 1-1/2
Ram Die Shank Length (Inches): 3-1/4
Ram Bolt Distance (Center to Center) (Inches): 7-1/2
Throat Opening (Frame to Center of Ram) (Inches): 6-1/2"

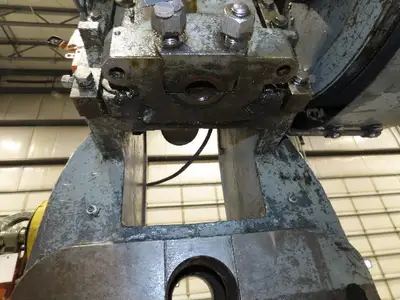

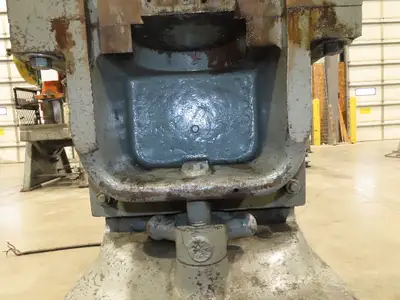

Bed Size (Inches): 9-3/4x20-1/4 Has a 2" Plate
Bed Opening (Inches): 8x7"
Used, in Good Working Condition, Tested OK.
This unit has 6" I beam under the base. The foot pedal has been modified to match.
Bed height can be adjusted up another 10".
This unit has a 4" bore for a shank.
Floor space: 28x38" with 81" height.
