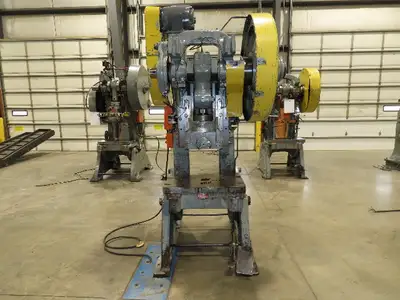

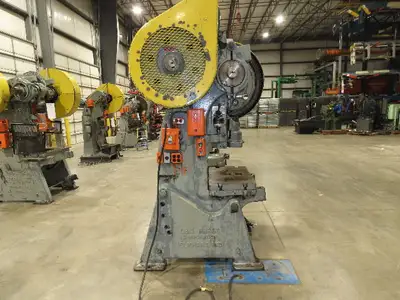

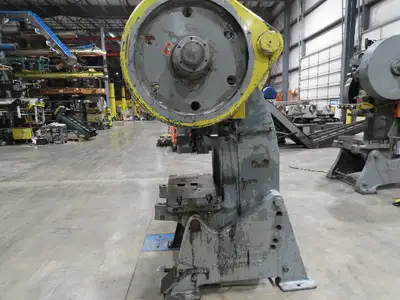

L & J 60 Ton Geared OBI Punch Press 5Hp 4" Stroke 9-1/2" Throat 220/440V 3Ph

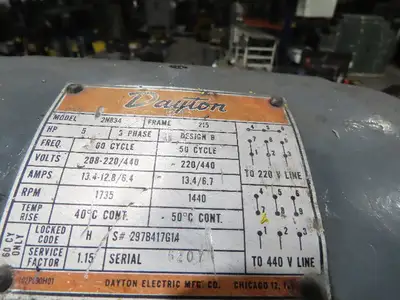

HP: 5
Voltage: 220/440V Wired for 220
Press Rating Ton: 60
Stroke (inches): 4
Ram Open Height w/adjustment up (Inches): 15-3/8
Ram Shut Height w/Adjustment up (Inches): 11-1/8
Ram Adjustment Length (Inches): 2
Ram Die Shank Size (Inches): 2-1/2
Ram Die Shank Length (Inches): 4
Ram Bolt Distance (Center to Center) (Inches): 11" x 3-3/4"
Throat Opening (Frame to Center of Ram) (Inches): 9-1/2
Bed Size (Inches): 30x18
Bed Opening (Inches): 14x11-1/2
Used, in Good Working Condition, Tested OK.

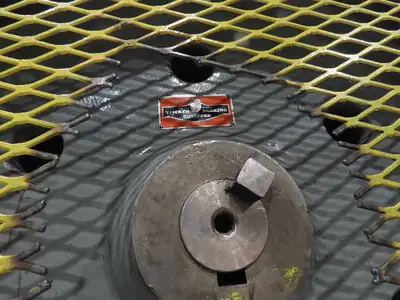

This machine has a label that says Timken bearings.

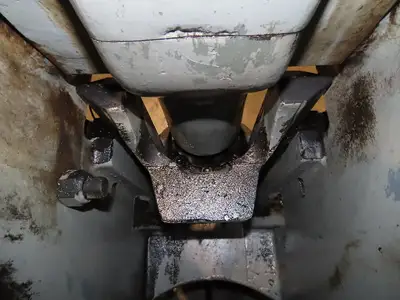

Machine was well taken care of. The sliding hardware looks like it was replaced at one time.

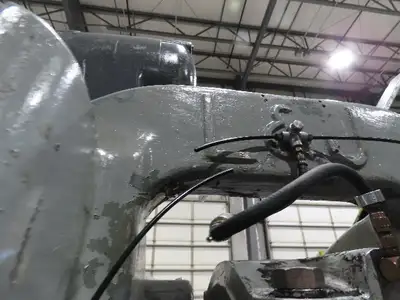

Center oiler system. One hose is broken. Minor fix.
OEM controls. Has the original foot pedal.

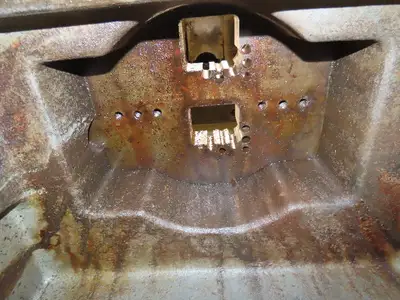

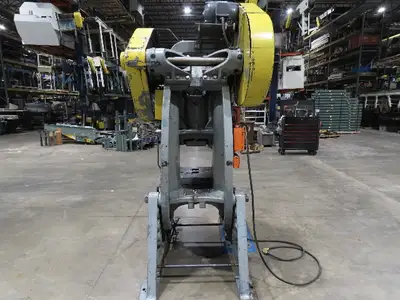

Open back. Max width is 13". Larger type opening in the back.
The front additional support pieces have been missing. No idea of how long. Not sure if this would affect the tonnage.
This machine would take 40x52" floor space. 102" high.

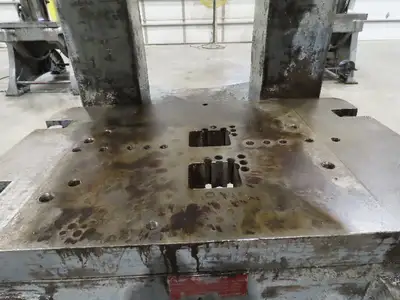

The bed has a 2-1/4" steel plate bolted on. Has 2 openings. 3.2x2.7"
