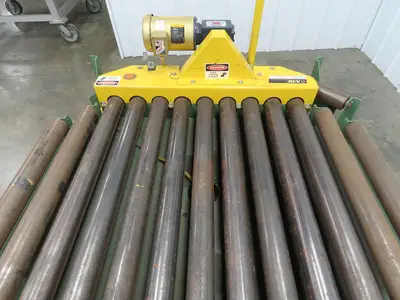

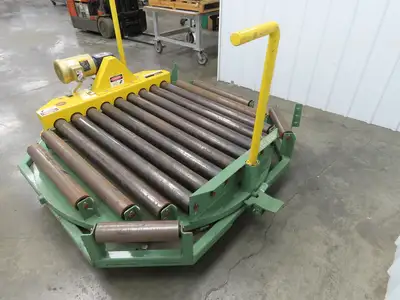

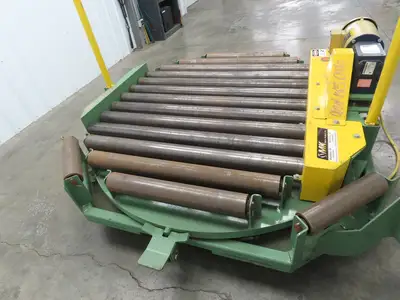

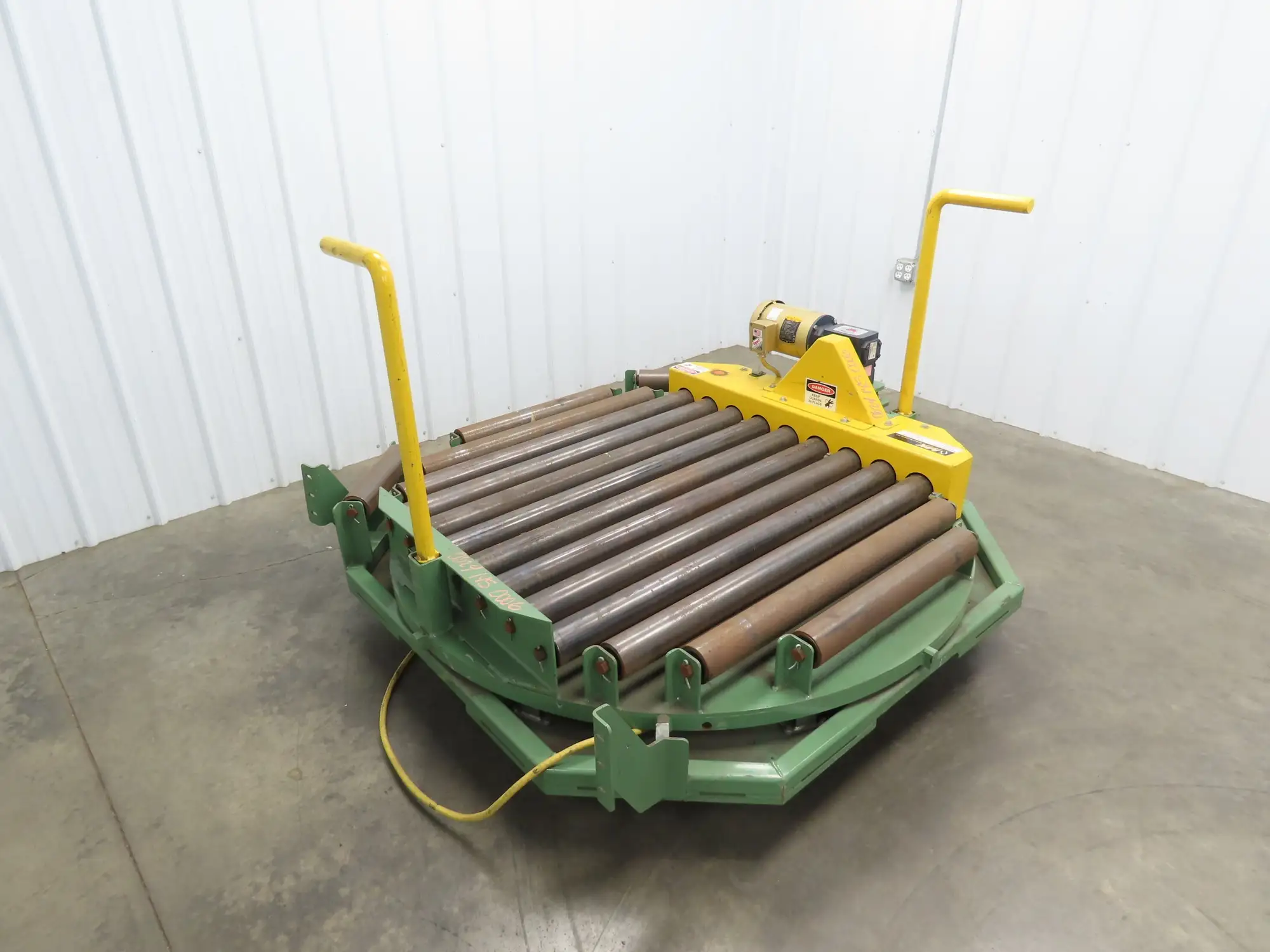

48" Pallet Rotator Transfer Conveyor 360° Swivel Turntable 3.5" Powered Roller

USD $4,274.99
1 available
Overview
Manufacturer:
MK METAL PRODUCTS
Stock #:
284057
Specifications

Pallet Conveyor In Good Used Condition.  Tested and running.
Manual 360° swivel with 5 stops on the non-drive side.
NOTE: Table does a full swivel turn but stops, does not do a continuous 360.
Chain drive powered rollers.
1Hp 230/460V 3PH drive, 40:1 gearbox.
Fits a 48" pallet width.
60" Bed Length.
49" between frame width.
60" conveyor frame width x 8" height.
11" roller bed height.
67" Overall base width.
3.5" roller dia.  5" centers.  1-1/16" Hex axles.
30 FPM Roller speed.
2200 Lbs.
