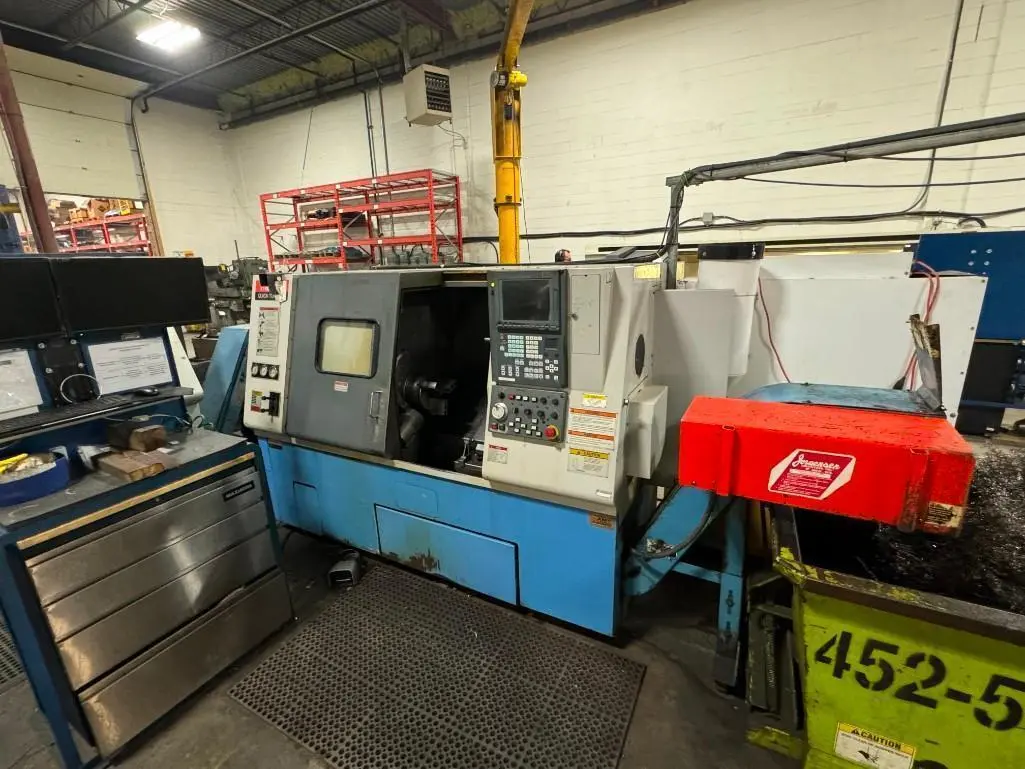

USED 2000 MAZAK QT250 Universal

Mazak QT250 Universal CNC Lathe

Max Turning Diameter: 15.7″
Max Turning Length: 19.7″
Max Bar Capacity: 2.05″
Swing Over Bed: 23.6″
Distance Between Centers: 24.6″
X Axis Travel: 8.5″
Z Axis Travel: 20.1″
Rapid Traverse X Axis: 1200 IPM
Rapid Traverse Z Axis: 1300 IPM
Spindle Nose: A2-6
Spindle Bore: 2.44″
Spindle Speed: 40-4000 RPM
Spindle Motor: 20 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 18.1″
Tailstock Quill Dia.: 4.33″
Tailstock Quill Stroke: 3.93″
Tailstock Taper: MT-4
