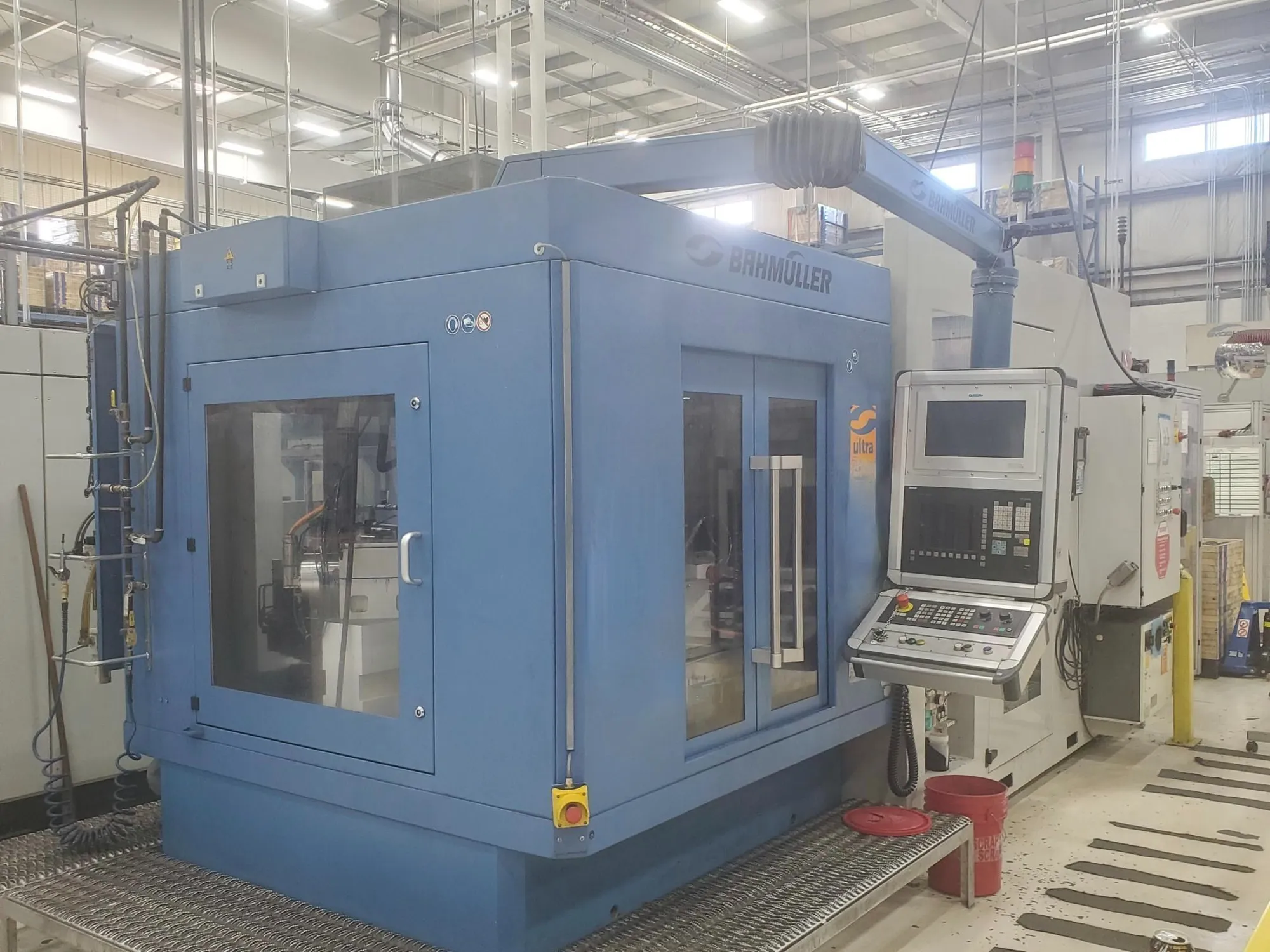

USED 2016 BAHMUELLER ULTRA FLOW
Overview
Configuration
In-process measuring Marposs measuring system Comes with Fanuc M10-iA
OEM Model Description
-ALPHA match1/match2/match3 allows match quality in 1, 2 or 3 match diameters -Internal grinding options: up to 3 processing spindles per axis and the possibility to finish optimized surface qualities in the operation of one final clamping. ALPHA finish -The ULTRA ALPHA is the expandable basis for the further expansion variants SYNCRO and TWINNER, up to the option of double output.
Specs
Bahmueller Ultra Alpha Cylindrical Internal CNC Grinder (2016)
Axes Specifications
Longitudinal: 9.840"
Cross: 24.410"
Workpiece Envelope
Grinding Length: 7.870"
Grinding Depth: 2.360"
Grinding Width: 1.580"
OD Max Grinding Diameter(s): 0.790"
ID Max Grinding Diameter(s): 1.580"
Grinding Wheel And Spindle
Grinding Wheel:
Grinding Wheel Diameter: 24.020"
Grinding Wheel Width: 3.940"
Wheel Head:
Angle Adjustment: 30°
Motor: 17.000hp
RPM Opt: 1,194
Workhead:
Motor: 9.00hp
RPM: 4,500
RPM Opt: 6,000
Equipped With
In-process measuring Marposs measuring system Comes with Fanuc M10-iA
OEM Model Description
-ALPHA match1/match2/match3 allows match quality in 1, 2 or 3 match diameters -Internal grinding options: up to 3 processing spindles per axis and the possibility to finish optimized surface qualities in the operation of one final clamping. ALPHA finish -The ULTRA ALPHA is the expandable basis for the further expansion variants SYNCRO and TWINNER, up to the option of double output.
