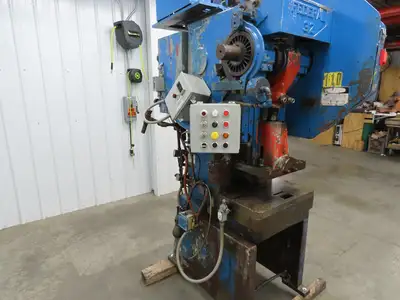

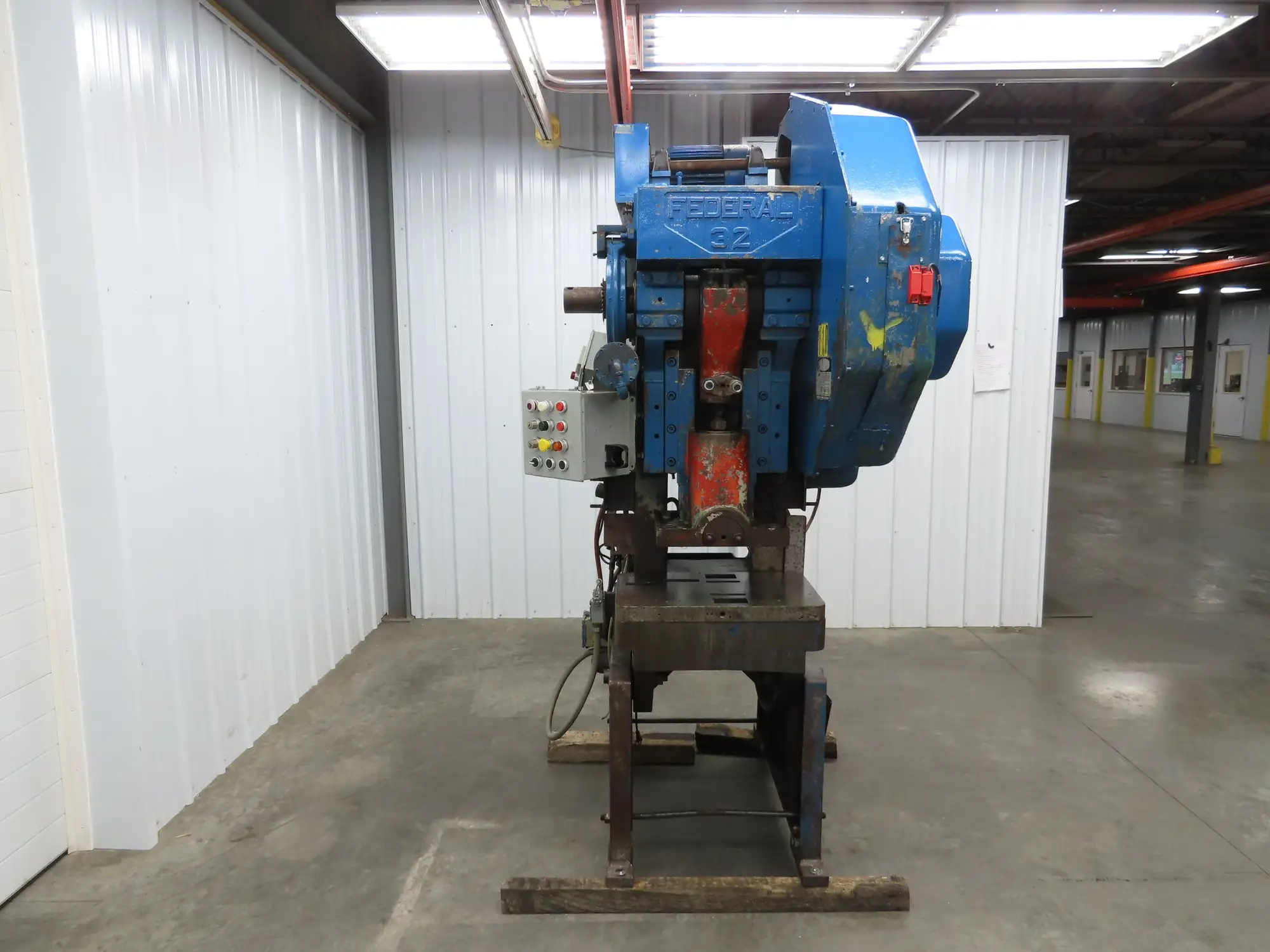

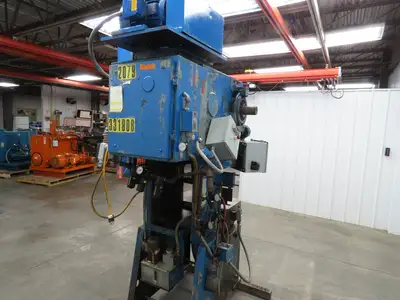

Federal Mechanical OBI Punch Press 32 Ton Air Brake Clutch 1-1/2" Stroke 7.5Hp

HP: 7.5
Voltage: 230/460V wired for 460
Press Rating Ton: 32
Stroke (inches): 2-1/2" Tested. Original factory specs is 3"

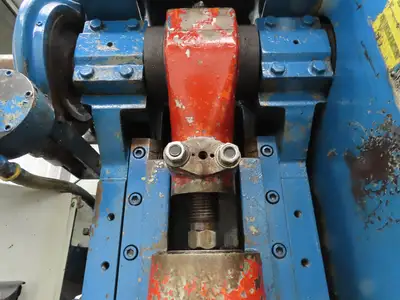

Ram Open Height w/adjustment up (Inches): 11-1/2"
Ram Shut Height w/Adjustment up (Inches): 9"
Ram Adjustment Length (Inches): 2"
Ram Die Shank Size (Inches): 1-1/4
Ram Die Shank Length (Inches): 6-1/2"
Ram Bolt Distance (Center to Center) (Inches): 12x9" 4 bolt type
Throat Opening (Frame to Center of Ram) (Inches): 8"
Bed Size (Inches): 15x24"
Bed Opening (Inches): 10x12"
Used, in Good Working Condition, Tested OK.
Air Brake Clutch This can be started and stopped in any position. It does not have to do a complete cycle. It could inch or it could do the full cycle.

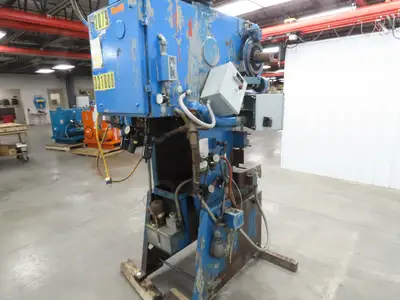

This will need new controls. We tested manually. Mechanical sound. Lots of older wiring that should be cleaned up and redone.

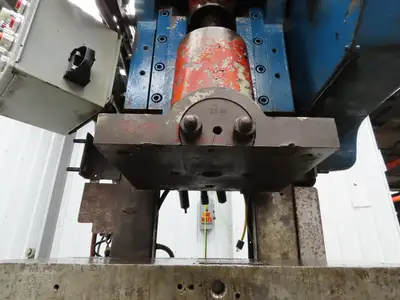

This has a bed plate. It is 1-3/4" thick.
