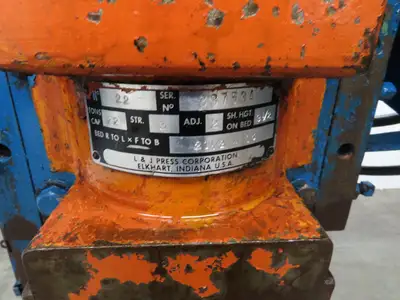

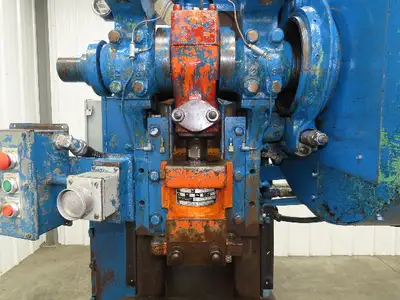

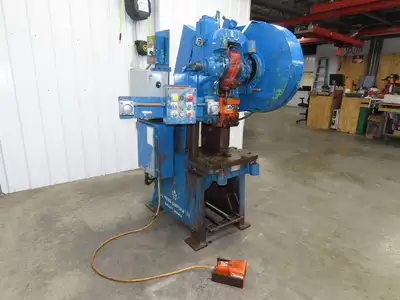

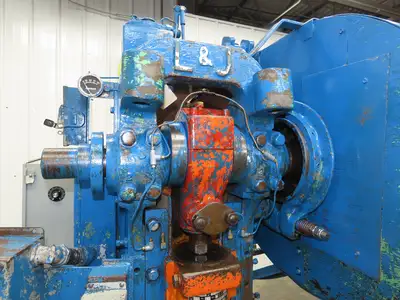

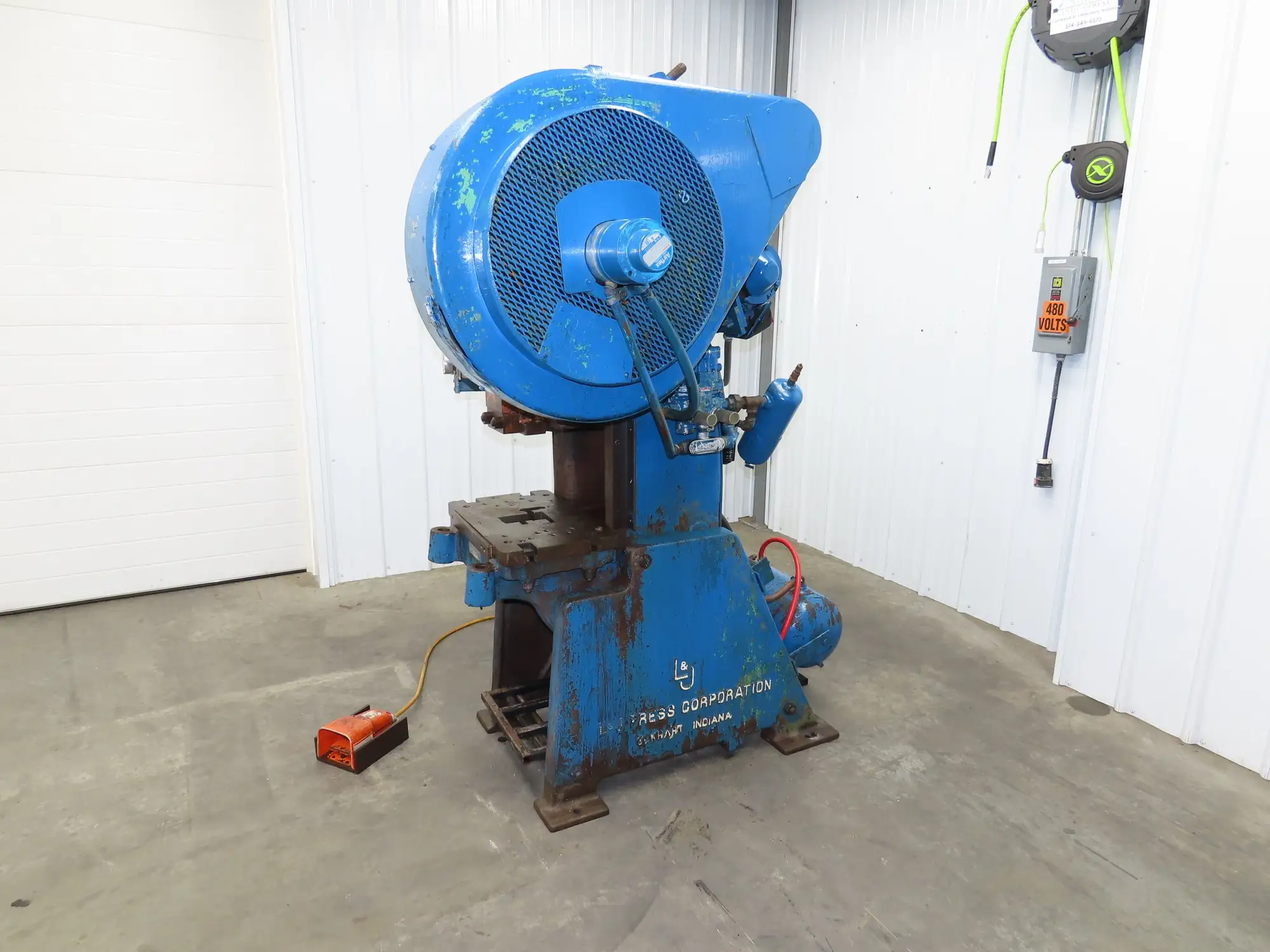

L&J No 22 Mechanical OBI Punch Press 22 Ton 3" Stroke 2Hp 3Ph Air Clutch Brake

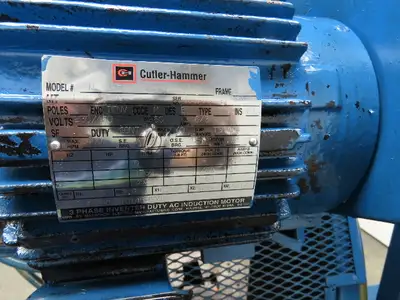

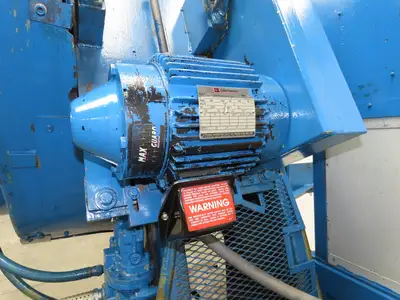

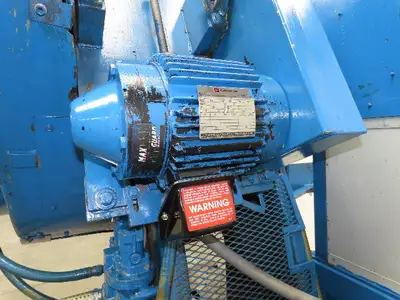

HP: 2 Cutler hammer
Voltage: 230/460V 3 phase
Press Rating Ton: 22
Stroke (inches): 3
Ram Open Height w/adjustment up (Inches): 12
Ram Shut Height w/Adjustment up (Inches): 9
Ram Adjustment Length (Inches): 2

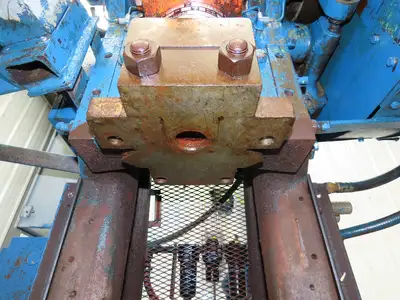

Ram Die Shank Size (Inches): 1-3/8
Ram Die Shank Length (Inches): 4-1/2
Ram Bolt Distance (Center to Center) (Inches): 7-1/2
Throat Opening (Frame to Center of Ram) (Inches): 7
Bed Size (Inches): 13 x21
Bed Opening (Inches): 8 x 12
Used, in Good Working Condition, Tested OK.
Tested in our shop.

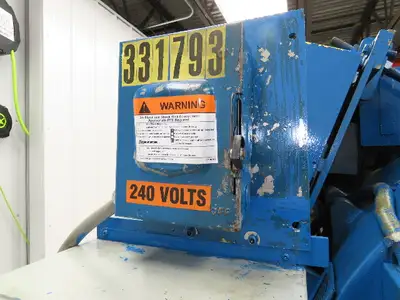

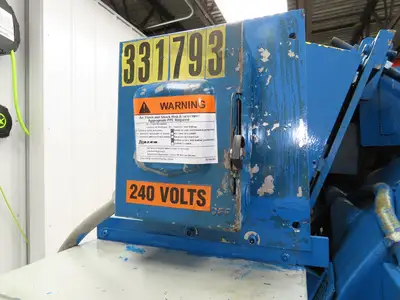

Wired for 230V 3 phase
This has an Allen Bradley Powerflex drive. This allows for motor speed adjustment. Slow down your stroke of whatever product your are punching.

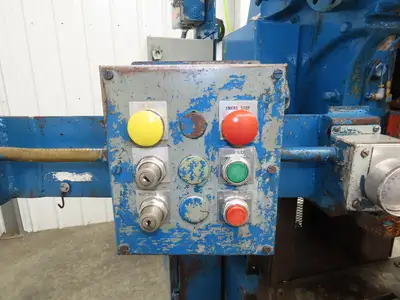

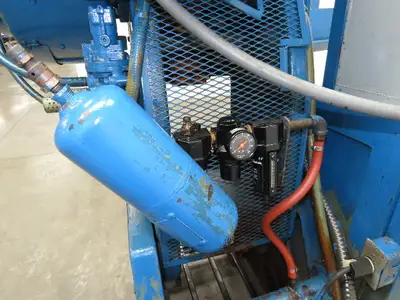

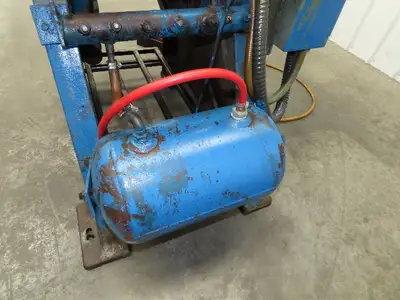

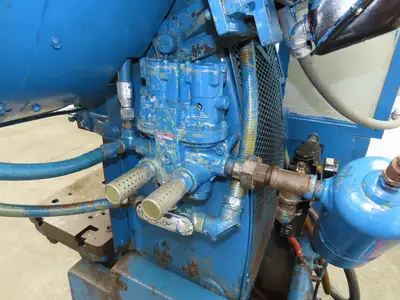

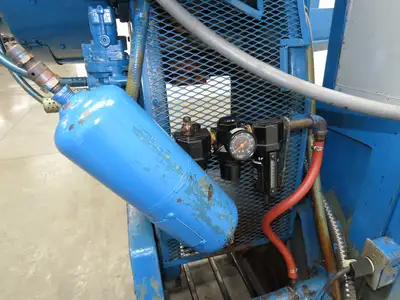

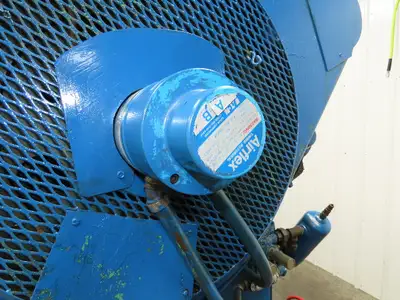

Foot control or hand control. Pneumatic clutch brake. This unit could be stopped in any position.

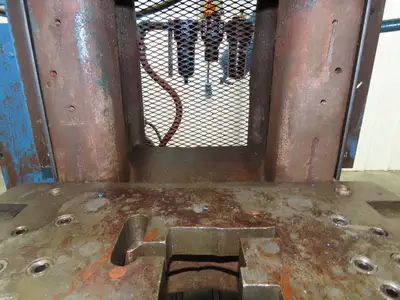

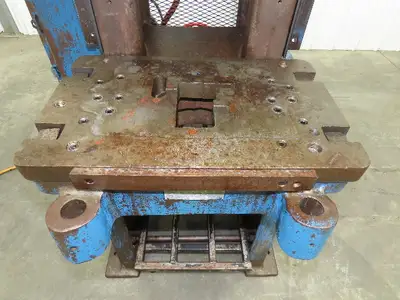

1-1/2" bed plate with a 2-1/2x5" opening.
